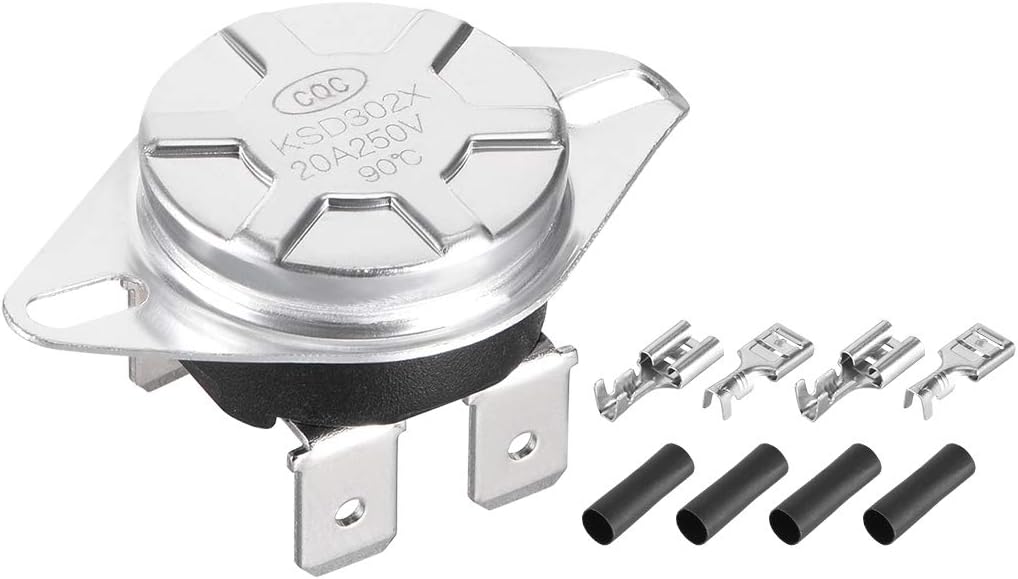

KSD302T Thermostat, Temperature Control Switch 90°C 20A Manual Reset N.C 6.3mm Pin with Terminals

Key Features

• Normally Closed The original state of temperature control switch contact is closed, and open when the temperature sensing exceeds the rated temperature
• Feature Double metal chip, contact sensor, speed dynamic type, sensitive, reliable, stable action temperature, long service life, no arc phenomenon
• Advantage General purpose, manual reset, low cost, large capacity, minute current thermostats
• Function It is closed until the temperature reaches 90 Celsius degree, then the switch opens. Widely used for temperature control or protection for household electric appliances
• Application Mainly used for motor electric heating water dispenser, water bottles, cabinet, coffee shell, electric iron, dryer, air conditioning, water heater, electronic cooker, heater, cupboard and motor cleaner etc

Product Description

Specification:Product Name : Temperature Control SwitchModel: KSD302TAction Temperature: 90°CAction Type: N.C (Normal Close)Rated Voltage/Current : 250V/20APin Width : 6.3mm/0.25inchReset Type : Manual

Package Content

1 x Temperature Control Switch, 4 x 6.3mm Copper terminal, 4 x Protective Sleeve

Description

1.Normally Closed: The original state of temperature control switch contact is closed, and open when the temperature sensing exceeds the rated temperature.2.Feature: Double metal chip, contact sensor, speed dynamic type, sensitive, reliable, safe, stable action temperature, long service life, no arc phenomenon.3.Advantage: General purpose, manual reset, low cost, large capacity, minute current thermostats.4.Function: It is closed until the temperature reaches 90 Celsius degree, then the switch opens. Widely used for temperature control or protection for household electric appliances.5.Application: Mainly used for motor electric heating , bottles, cabinet, coffee shell, electric iron, dryer, air conditioning, heater, electronic cooker, heater, cupboard and motor cleaner etc.
