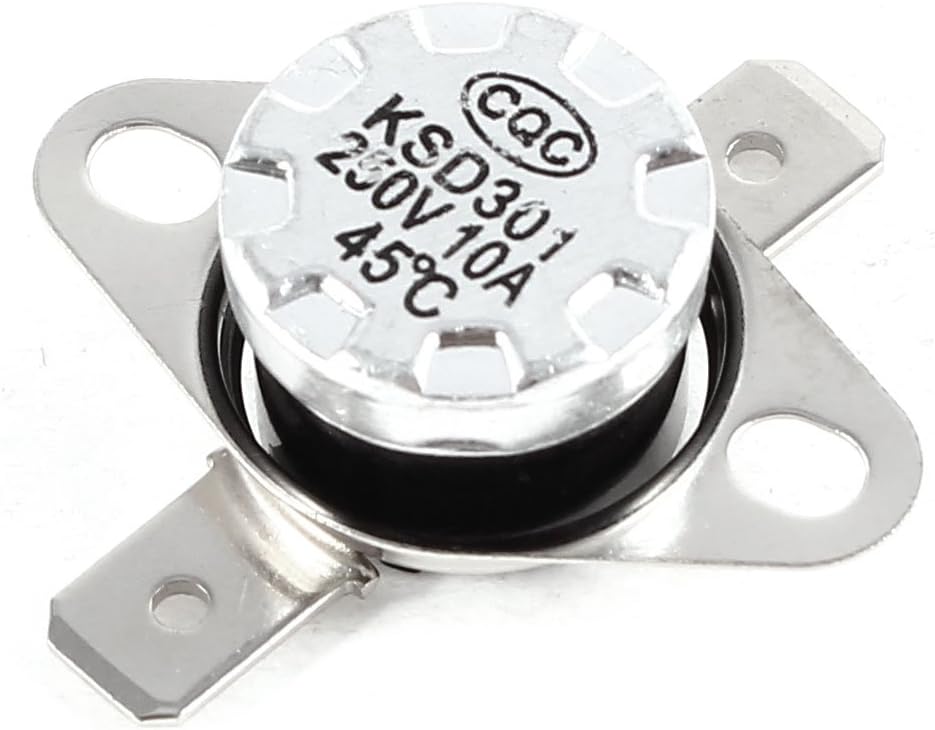

KSD301 AC 250V 10A 45C Celsius NC Temperature Control Switch Thermostat

Key Features

• Product Name Temperature Control Switch;Model.No KSD301;Action Type Normally Close(NC)
• Action Temperature 45C;Voltage AC 250V;Current 10A
• Insulation resistance Max. 100 Mohm;Size 3.4 x 1.6 x 1.2cm/1.3" x 0.6" x 0.5"(L*D*H);Mounting Hole Size 4.4 x 3.5mm/0.2" x 0.1"(L*W)
• Mounting Hole Center Distance 24mm/0.9";Material Metal, Plastic;Color Black, Silver Tone
• Net Weight 5g;Package Content 1 x Temperature Control Switch

Product Description

It is close until the surface reaches 45 Celsius degree and then the switch open. Automatically reset when the surface cools off about 5 degrees, the switch automatically close. Opening-closing durability: 10000 times or more (under rated load). general-purpose low cost, compact, large capacity, minute current THERMOSTAT. This Ksd301 THERMOSTAT is used either as temperature control and safety limit for household electric appliances and widely applicable for coffee maker, water heater, immersion heaters, electric cookers, Microwave ovens, automatic toasters, etc.

Specifications
