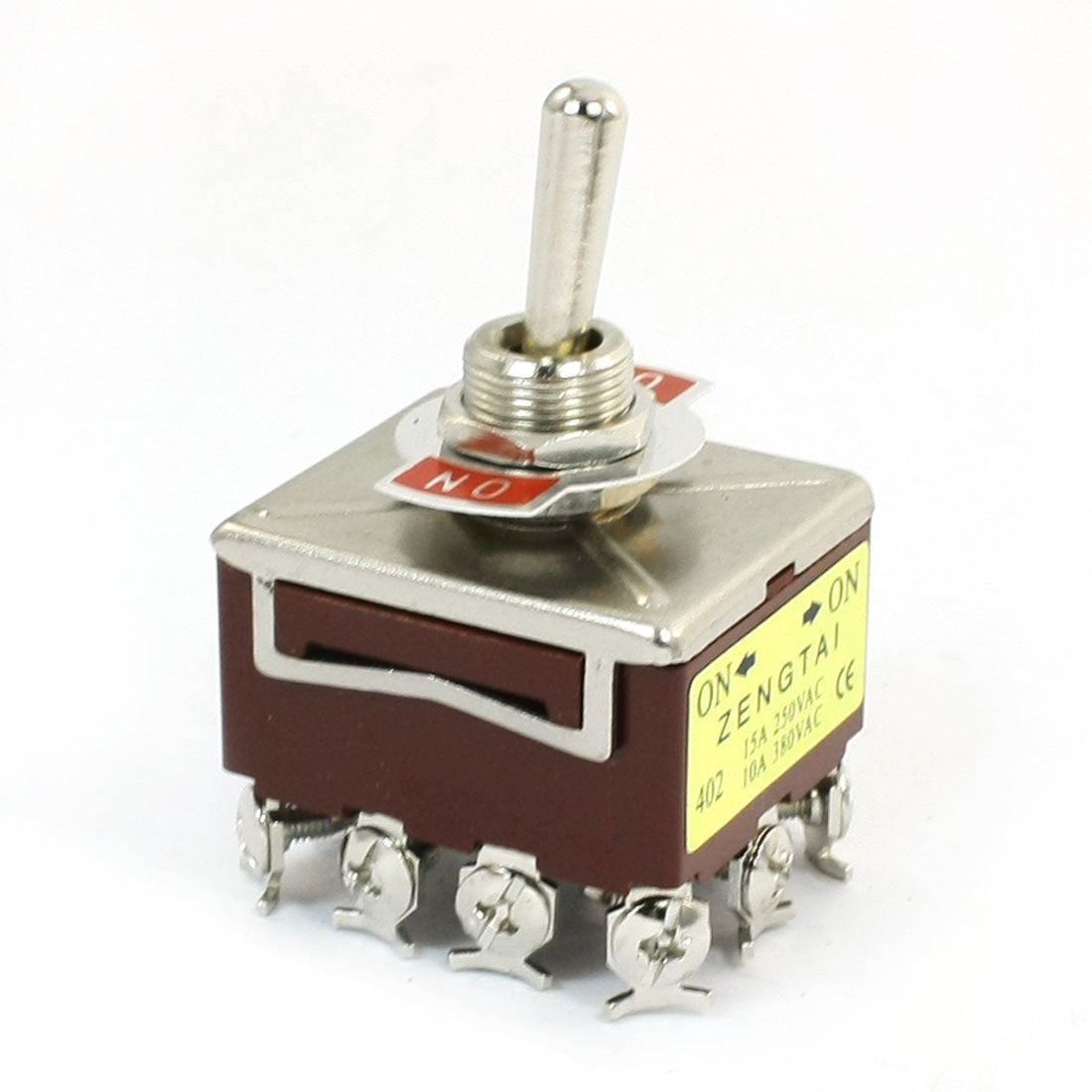

KN402 4PDT ON/ON 2 Position 12 Pin Latching Toggle Switch 10A/380VAC 15A/250VAC

Brand: LinkMejor

★★★★☆ 239 ratings | 19 answered questions

$8.89

✓ Secure transaction

🚚 Free delivery available

🔄 30-day returns

📦 Ships from linkmejor.com

Key Features

Product Name Toggle Switch;Model KN402;Type 4PDT (ON/ON)
Position 2;Mounting Hole Diamter 12mm / 0.47"
Main Body Size 37x 34x 20mm / 1.5" x 1.3" x 0.8"(L*W*H);Overall Height 60mm / 2.4"
Material Metal & Resin;Color As Picture Shown
Weight 63g;Package Content 1 x Toggle Switch

Product Description

Please note

The 250V/15A rating in the title is only for purely resistive load, please pay attention to the specifications below for max ratings of other load types: Max Power Rating for AC Resisitive load:AC 15A 250V / AC 16A 125VMax Power Rating for DC Resisitive load:DC 0.5A 250V / DC 0.9A 125VMax Power Rating for AC Lamp: AC 125V 300W / AC 250V 600WMax Power Rating for DC Lamp: DC 30V 3.5AMax Power Rating for AC Motor(Single Phase): AC 250V 400W / AC 125V 300W
