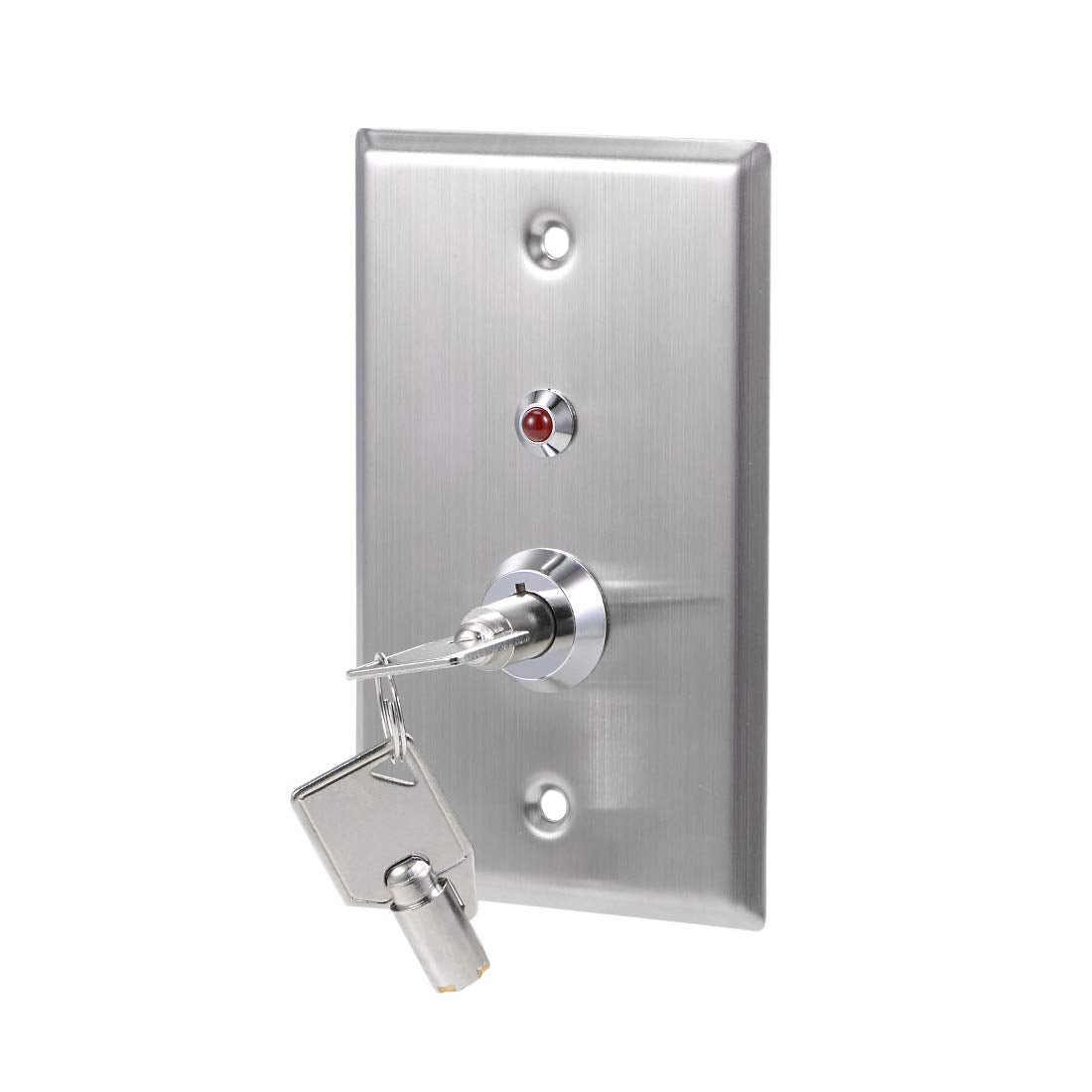

Key Switch On-Off Exit Switches Emergency Door Release SPST for Access Control w DC 12V Red LED Indicator

Key Features

• Turn key to ON Position and remains in ON position (key will pull out)
• Universal key switch. Will work with all gate and garage door openers
• Stainless steel plate accepts standard 19mm (3/4") barrel
• Switch Rated Current 4A 125V AC, 2A 250V AC; Indicator Rated Voltage DC 12V
• The indicator would not light off when turning on or off the switch

Product Description

Description

-This key switch is an emergency switch button with a special mechanical key for emergency situations.-Exit switches come in handy when one wants to regulate the comings and goings of people.-19mm key switch lock with 2 keys, nice smooth action and easy to mount.-Key is removable in both ON and OFF positions.-The indicator would not light off when turning on or off the switch.-Anti-disassembly signal output. Specification:Panel Material: 304 Stainless SteelSwitch Rated Power: 4A 125V AC / 2A 250V ACIndicator Rated Voltage: DC 12VType: SPSTContacts Type: 1 NO, 1 NC, 1 COM, 2 TAMPPanel Size: 115 x 70mm / 4.53" x 2.76" (L*W)Mounting Cut Hole: 54 x 36mm / 2.13" x 1.42" (L*W)Panel Mounting Hole Diameter: 4.5mm / 0.18"Panel Mounting Hole Distance: 83mm / 3.27"

Package Content

1 x Key Operated Switch2 x Keys2 x Mounting Screws
