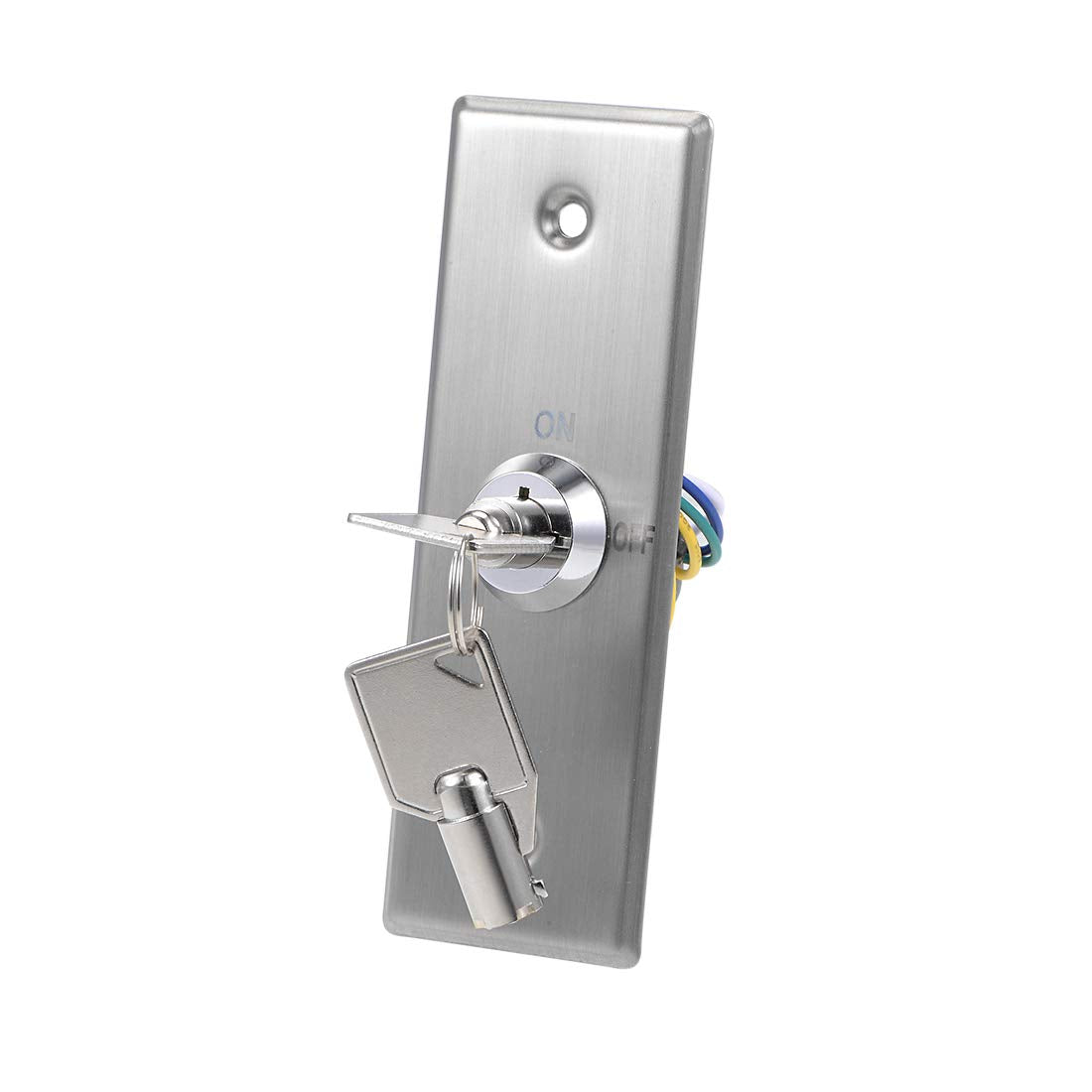

Key Switch Lock On/Off Exit Door Lock Emergency Door Release SPST for Access Control with 2 Keys

Key Features

• The Key is removable in both ON and OFF positions.
• Universal key switch. Will work with all gate and garage door openers
• Stainless steel plate accepts 19mm (3/4") barrel
• Rated Current 4A 125V AC, 2A 250V AC
• Switch terminals are colored for recognition

Product Description

Description

-This key switch is an emergency switch button with a special mechanical key for emergency situations.-19mm key switch lock with 2 keys, nice smooth action, and easy to mount.-Key is removable in both ON and OFF positions. Specification:Panel Material: 304 Stainless SteelRated Power: 4A 125V AC / 2A 250V ACType: SPSTContacts Type: 1 NO, 1 NCCable Length: 20cm / 7.9"Panel Size: 115 x 40mm / 4.53" x 1.57" (L*W)Mounting Cut Hole: 19mm / 3/4"Panel Mounting Hole Diameter: 4.5mm / 0.18"Panel Mounting Hole Distance: 83mm / 3.27"

Package Content

1 x Key Operated Switch2 x Keys2 x Mounting Screws
