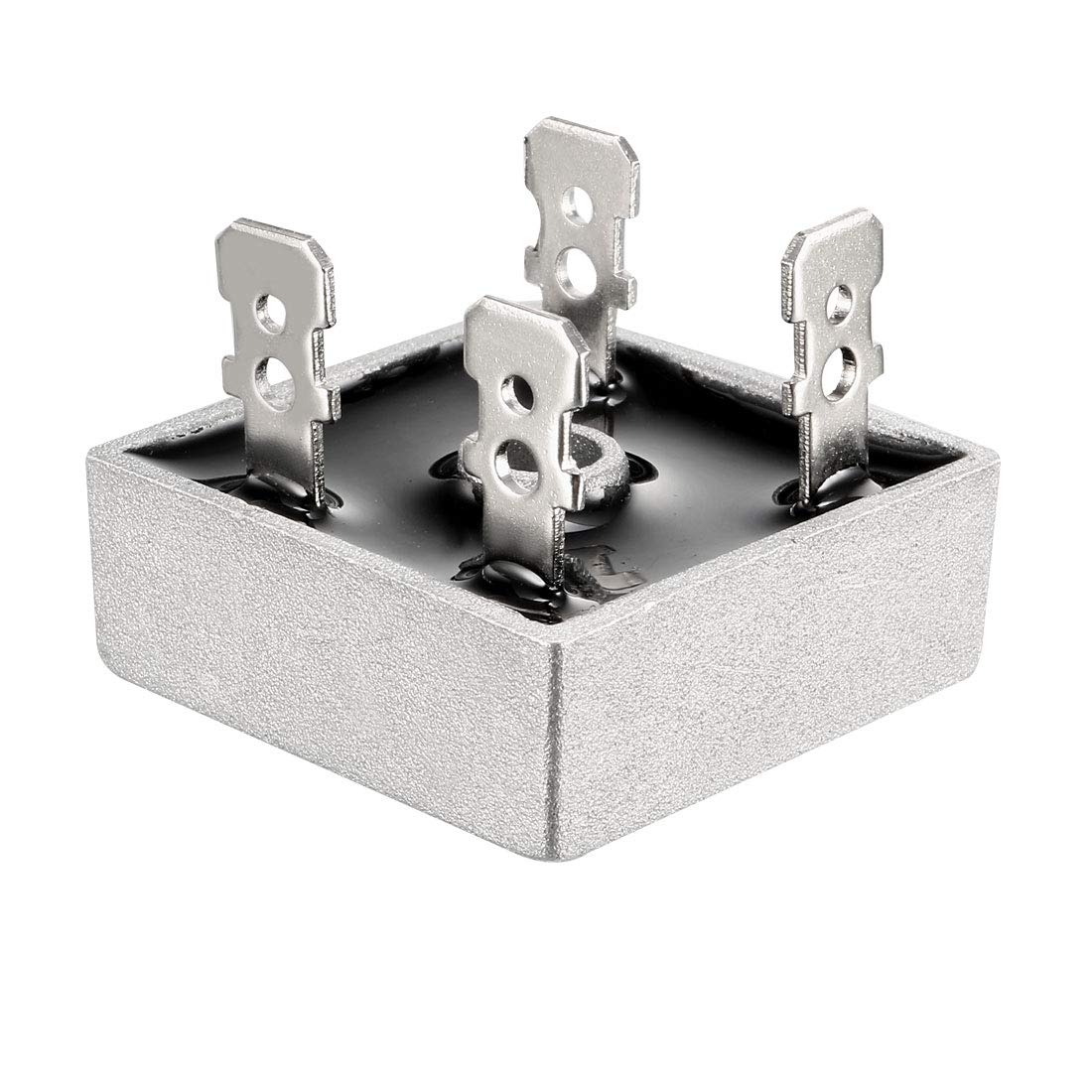

KBPC3010 1000V 30A Single Phase Bridge Total-Wave Gray

Key Features

• Model KBPC3010 ; Output Current(DC)30A ;
• Repetitive Peak Reverse Voltage(AC)1000V ; PhaseSingle Phase
• Fixing Holes Diameter 6mm/ 0.24";
• Body Size28.5 x 28.3 x 21.7mm / 1.12" x 1.11" x 0.85" (L*W*H)
• Great for printed circuit board to used.

Product Description

Description

This Bridge features single phase, Total wave, low power loss, low reverse leakage current, electrically isolated metal case for maximum heat dissipation, through hole mounting type.Great for printed circuit board to used.

Specifications

Product Name:BridgeModel: KBPC3010Output Current(DC):30A(Max)Peak Current:5mARepetitive Peak Reverse Voltage(AC):1000VPhase:Single PhaseTerminals : 4Fixing Holes Diameter:6mm/ 0.24"Body Size:28.5 x 28.3 x 21.7mm / 1.12" x 1.11" x 0.85" (L*W*H)Material:Resin, MetalColor:Gray, Silver ToneNet Weight: 18g

Package Content

1 x Bridge
