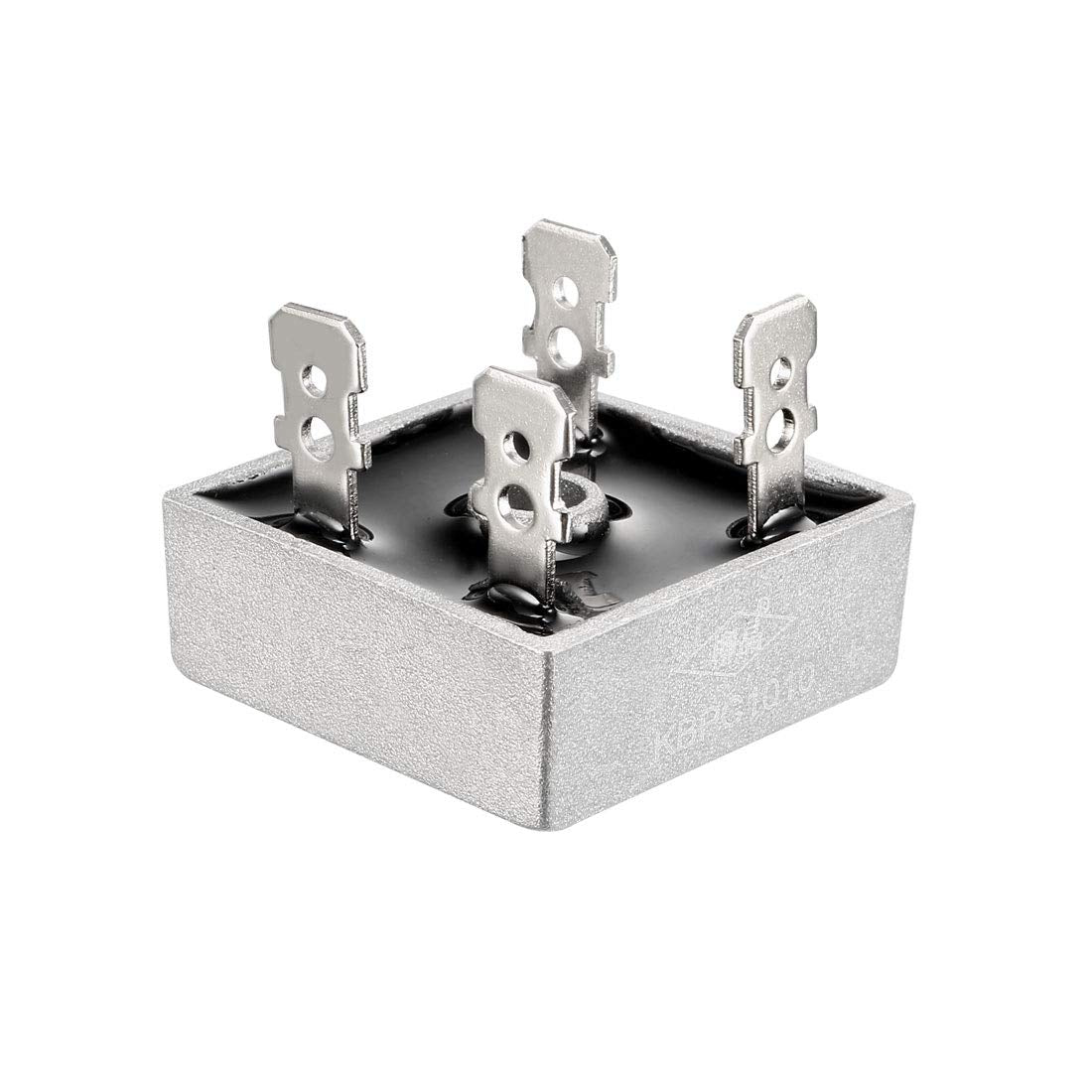

KBPC1010 1000V 10A Single Phase Bridge Rectifier Half-Wave Gray

Key Features

• Model KBPC1010 ; Output Current(DC)10A ;
• Repetitive Peak Reverse Voltage(AC)1000V ; PhaseSingle Phase
• Fixing Holes Diameter 6mm/ 0.24";
• Body Size28.3 x 28.4 x 22.3mm / 1.11" x 1.12" x 0.88" (L*W*H)
• Great for printed circuit board to used.

Product Description

Description

This Bridge Rectifier features single phase, half wave, low power loss, low reverse leakage current, electrically isolated metal case for maximum heat dissipation, through hole mounting type.Great for printed circuit board to used.

Specifications

Product Name:Bridge RectifierModel: KBPC1010Output Current(DC):10A(Max)Peak Current:5mARepetitive Peak Reverse Voltage(AC):1000VPhase:Single PhaseTerminals : 4Fixing Holes Diameter :6mm/ 0.24"Body Size:28.3 x 28.4 x 22.3mm / 1.11" x 1.12" x 0.88" (L*W*H)Material:Resin, MetalColor:Gray, Silver ToneNet Weight: 22g

Package Content

1 x Bridge Rectifier
