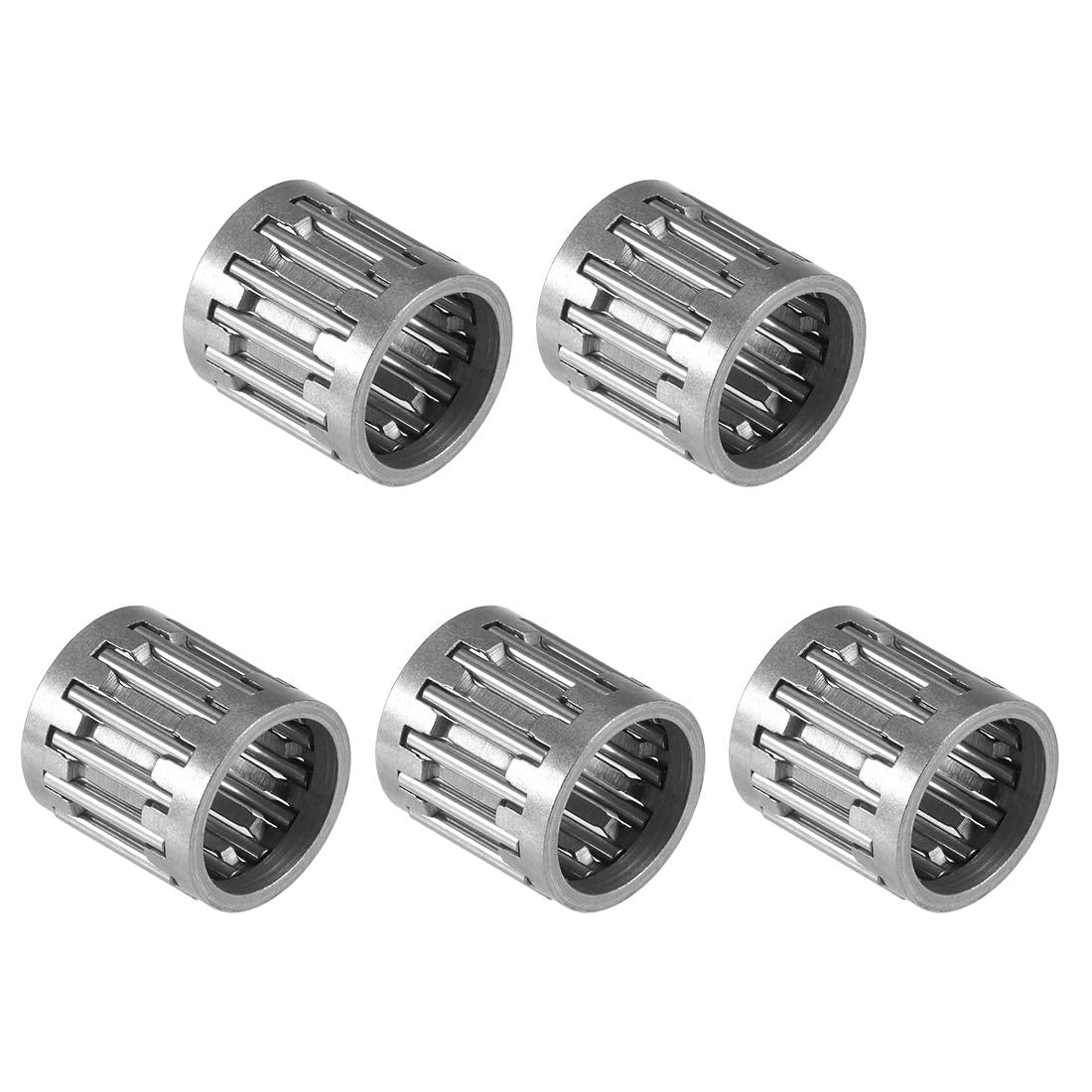

K151920 Needle Roller and Cage Assembly 15mm Bore 19mm O.D 20mm Width 5pcs

Key Features

• [SIZE] - Model K151920 (I.D. (Fw)= 15mm, O.D. (D)= 19mm, Width (C)= 20mm)
• [MATERIAL] - Steel Cage, Chrome Steel Needle Rollers
• [FEATURES] - GCr15 Needle Rollers Assembly, High Load Carrying Capacity and Stiffness
• [CAPABILITY] - Dynamic Load Rating 11300N, Static Load Rating 16000N, Limit Speed 22000RPM
• [APPLICATIONS] - They are suitable for applications where the installation space is restricted and the housing bore can be used as a raceway

Product Description

Description

Needle roller and cage assemblies are self­-contained, ready-­to­-mount bearings.In applications where the shaft and housing bore can serve as raceways, the assemblies can be used to create bearing arrangements that require minimal radial space.Specification:Model: K151920Needle Roller Material: Chromium Steel (GCr15)Drawn Cup Material: SteelBore Diameter (Fw): 15mmOutside Diameter (D): 19mmWidth: 20mmDynamic Load Capacity (Cr): 11300NStatic Load Capacity (Cor): 16000NLimiting Speed: 22000RPMNumber of Pack: 5 Pcs
