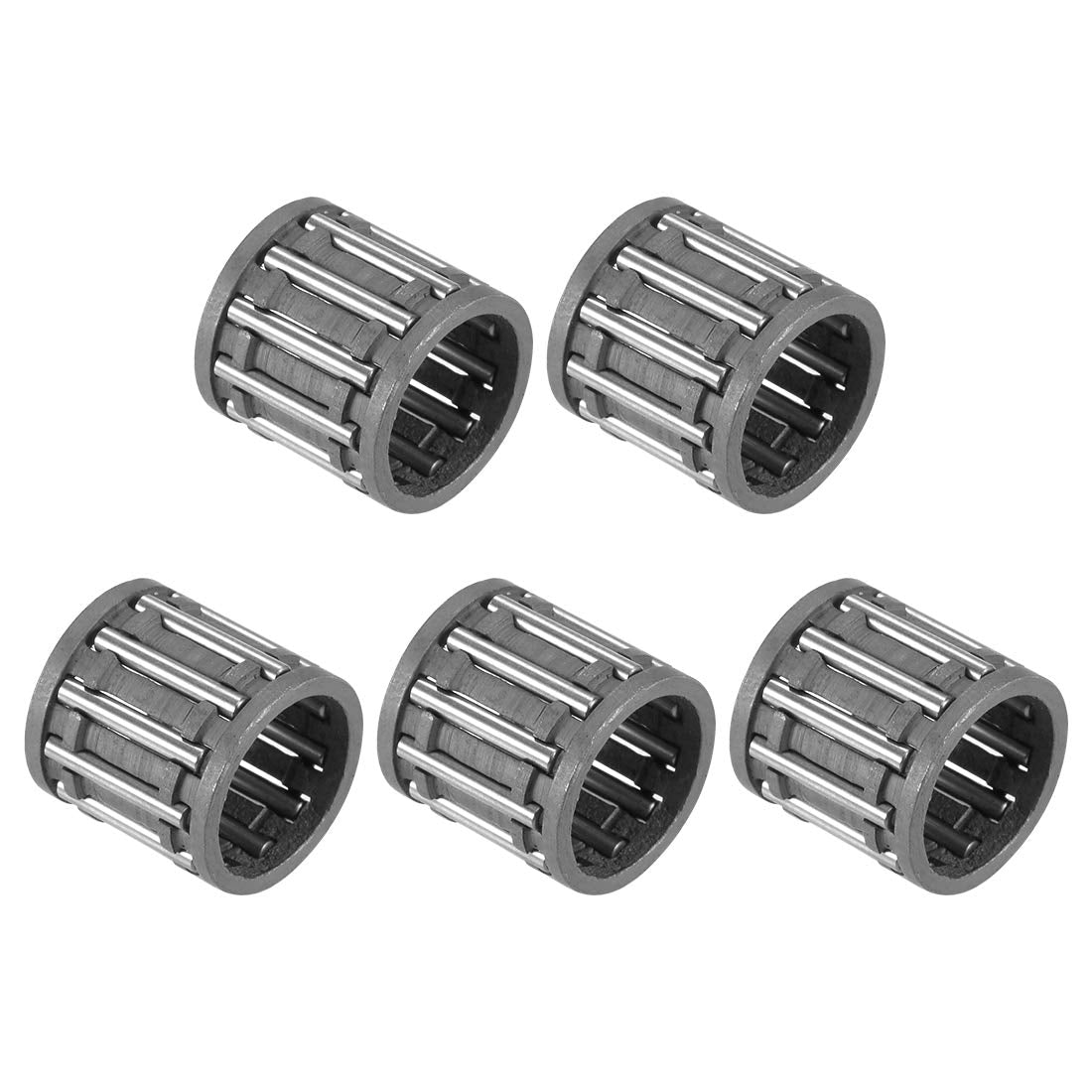

K101313 Needle Roller and Cage Assembly 10mm Bore 13mm O.D 13mm Width 5pcs

Key Features

• [SIZE] - Model K101313 (I.D. (Fw)= 10mm, O.D. (D)= 13mm, Width (C)= 13mm)
• [MATERIAL] - PA66 Cage, Chrome Steel Needle Rollers
• [FEATURES] - GCr15 Needle Rollers Assembly, High Load Carrying Capacity and Stiffness
• [CAPABILITY] - Dynamic Load Rating 6000N, Static Load Rating 7600N, Limit Speed 27000RPM
• [APPLICATIONS] - They are suitable for applications where the installation space is restricted and the housing bore can be used as a raceway

Product Description

Description

Needle roller and cage assemblies are self­-contained, ready-­to­-mount bearings.In applications where the shaft and housing bore can serve as raceways, the assemblies can be used to create bearing arrangements that require minimal radial space.Specification:Model: K101313Needle Roller Material: Chromium Steel (GCr15)Drawn Cup Material: PA66Bore Diameter (Fw): 10mmOutside Diameter (D): 13mmWidth: 13mmDynamic Load Capacity (Cr): 6000NStatic Load Capacity (Cor): 7600NLimiting Speed: 27000RPMNumber of Pack: 5 Pcs
