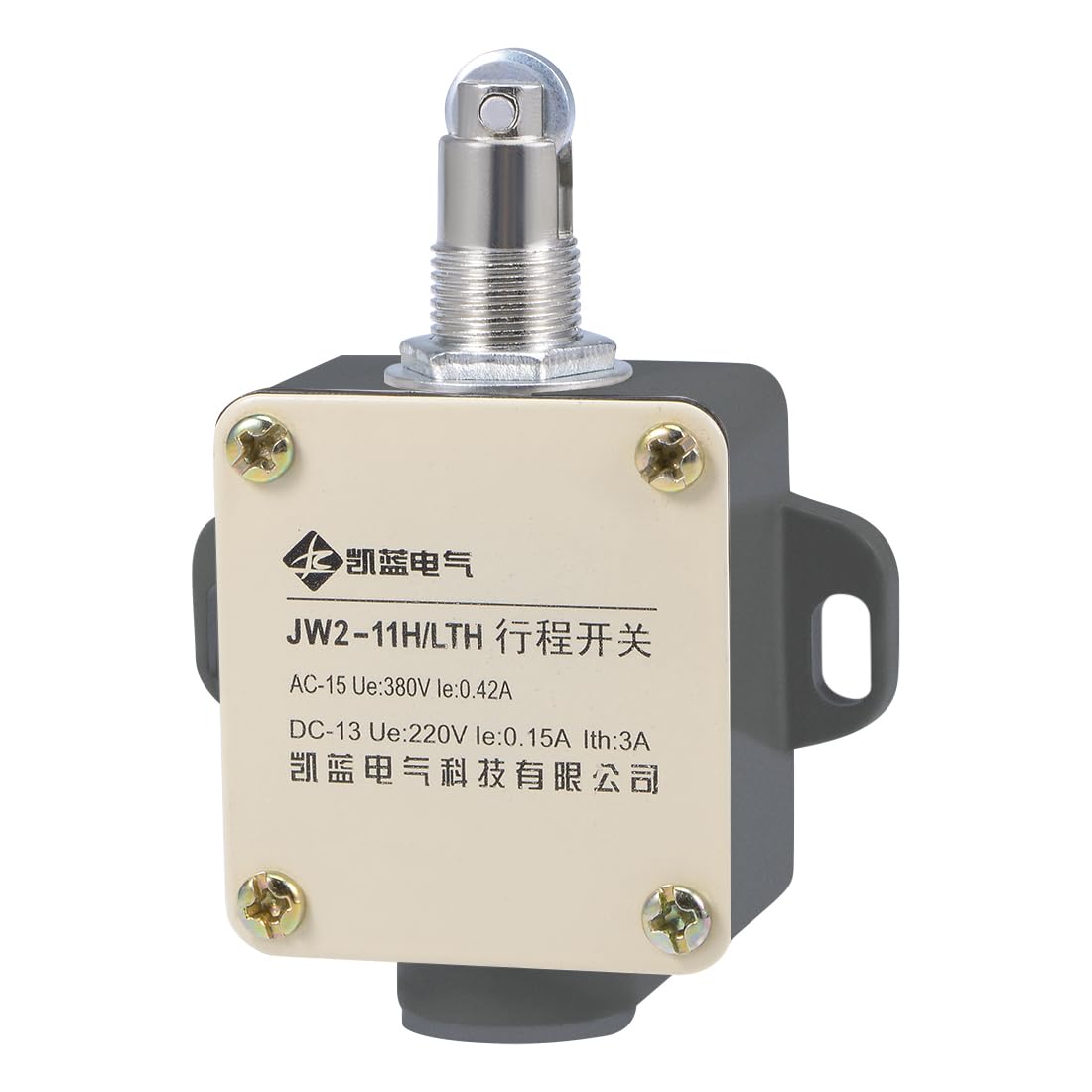

JW2-11H/LTH Roller Plunger Momentary Limit Switch 1NC+1NO for CNC Mill 3D Printer Door Switch
Key Features
- Model JW2-11H/L; Roller Plunger Type
- built-in basic switch with good electrical conductivity
- Able to withstand some washdowns, shock and vibration
- Easy-to-wire, smooth operation and reliable
- Applying to printer ,3D printer,endstop,CNC router,laser,light switch,wobble light,automatic pantry light switch,garage door,door operated switch,closet door switch,door switch.
Product Description
Specification:Product Name: Limit SwitchModel: JW2-11H/LTHActuator Type: Roller Plunger TypeRated Voltage:DC-13: Ue:220V Ie: 0.15A Ith:3AContact Configuration: 1NC+1NOBody Size: 44 x 40 x 23mm/1.73" x 1.57 x 0.91 (L*W*T)Mounting Hole Size: 8 x 4mm(L*W)Mounting Hole Distance: 49mm The roller plunger can be operated in a wide range by employing a cam, Dog, cylinder, or auxiliary actuator.Position detection accuracy is high. Operating Characteristics:OF max.: 1kgRF min.: 0.3kgPT max.: 5mmOT min.: 2mm
Description
Double circuit limit switch with build-in double reed mechanism.Zine alloy shell, strong and hightly rigid construction.Smooth operation with highter OT.Brass contacts with 30% silver contained. Easy-to-wire design.This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection.
Specifications
| Product Dimensions | 7.48 x 5.91 x 1.97 inches |
