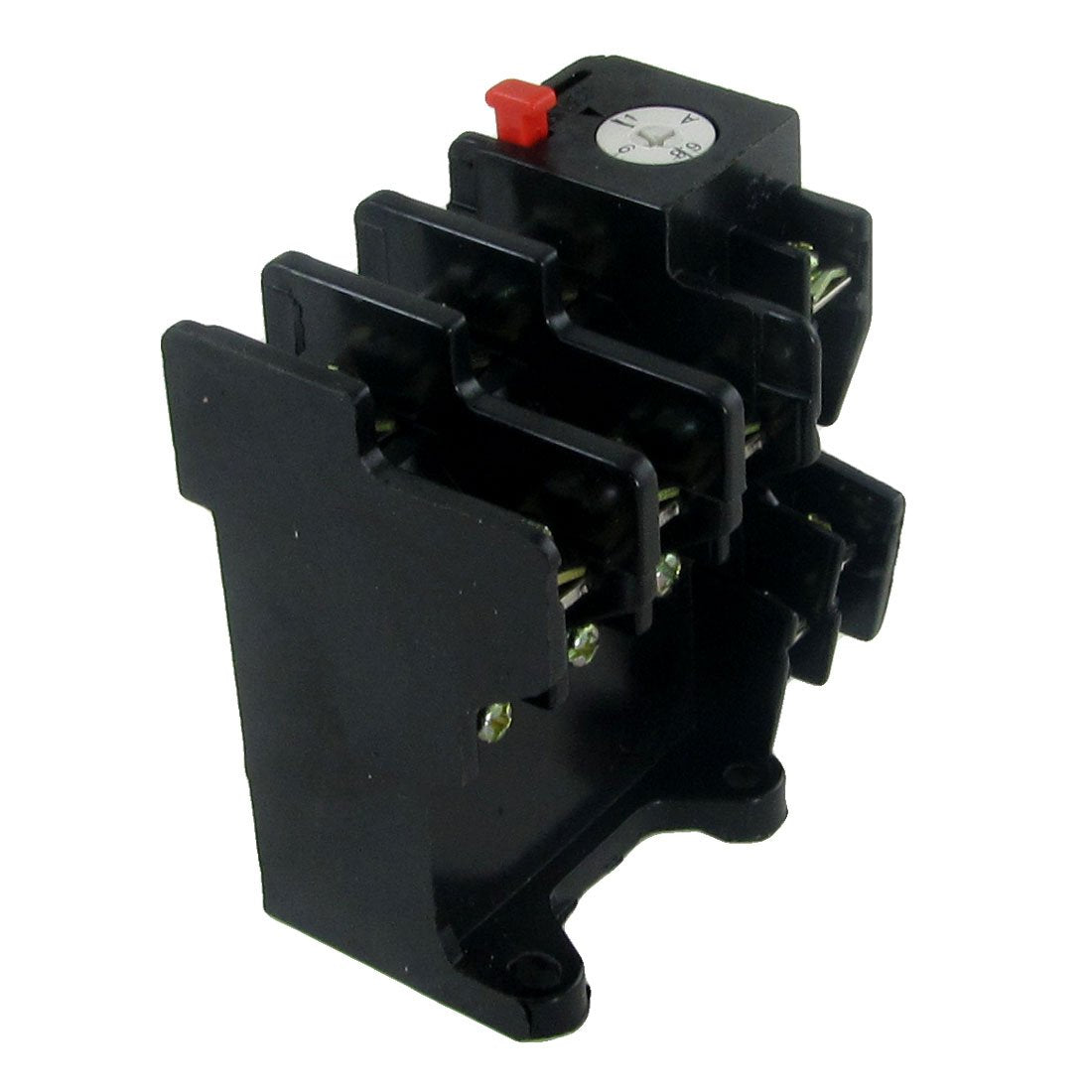

JR36B 3 Pole Thermal Overload Relay 20A 6.8-11A 1 NO 1 NC

Key Features

• Product name thermal overload relay; model jr36b-20;thermal relay rated current 20A
• Adjusting current range 6.8-11A;thermal element rated current 11A;auxiliary 380V,ith 10A,ac-15 180VA,contact Type 1 No + 1 NC
• Primary ui AC 660V,tripping Class 10A;fit cable 28mm2;fixing holes Size 4.4 x 5.8mm / 0.17" x 0.23"(L*w)
• Fixing holes Spacing 38 mm / 1.5";Overall Size (approx.) 70 x 75 x 47 mm / 2.7" x 3" x 1.8" (L * W * T);color as picture Shown
• Weight 168G;package content 1 x thermal overload relay

Product Description

3 poles.jr36b Series thermal relay can be used as overload protection of your long term or indirect long term service AC motor. The relay has functions of phase failure protect, temperature compensation, etc. Manual and automatic reset, Test button and a button that can manually bread the NC contact.
