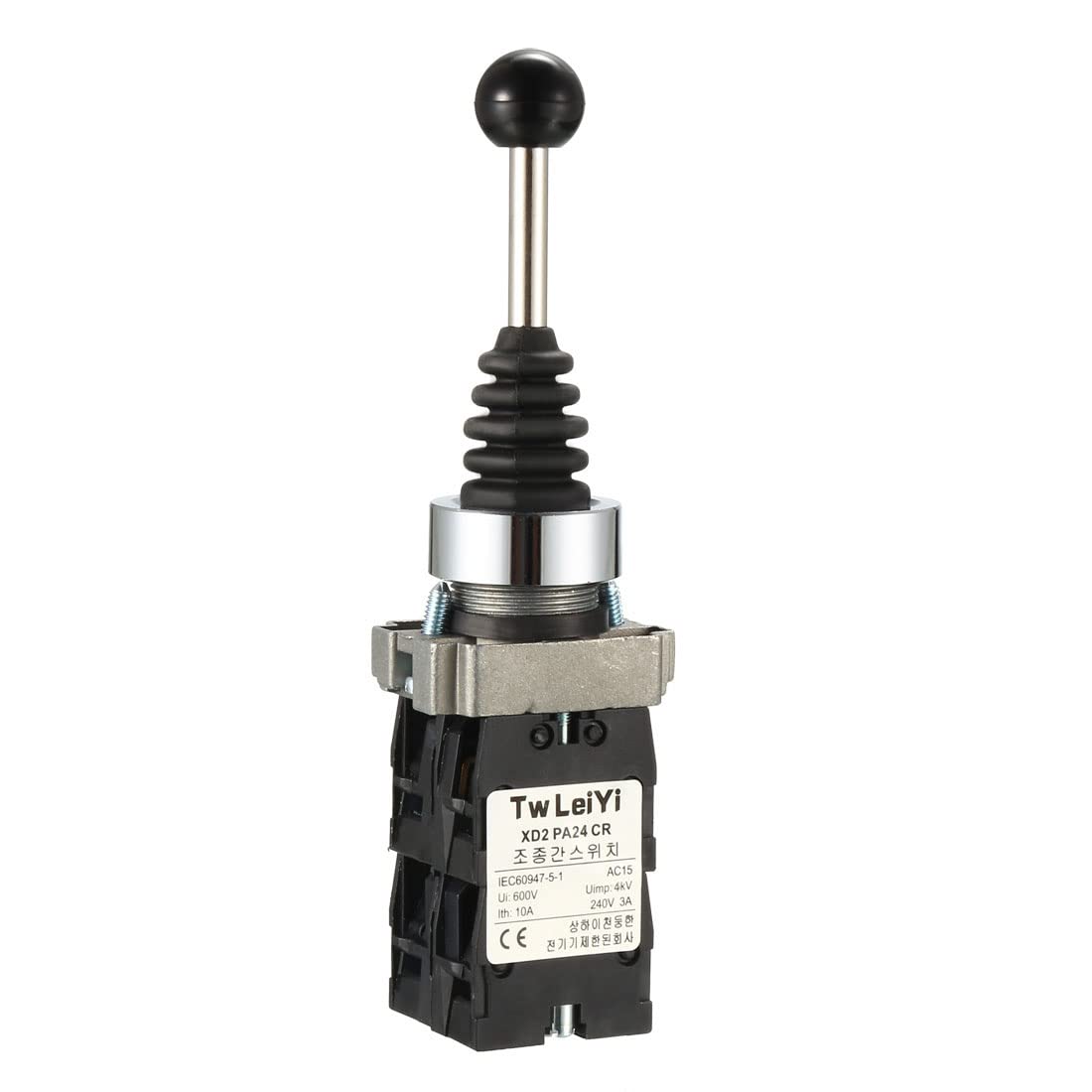

Joystick Switch Controllers 4 Position 4NO Momentary Type AC 600V 10A 22mm Panel Mount

Key Features

• Operate at 4 directions, with the 30 degrees declination of operation handle
• Momentary type operation with 1 normally open contact per direction
• Insulation Voltage (Ui) 600V; Heating Current (Ith) 10A
• Simply drill an 22mm (7/8") hole and secure it with the screw ring
• Widely used in automation and security, install the system and control, power monitoring, critical power and cooling service, etc

Product Description

Description

-Joystick switches or joysticks are manually actuated control devices for installation in control and front panels as well as in portable control equipment.- controllers are used wherever motion sequences analogous to the actuation direction are controlled by hand.-They are ideal for raising, lowering and triggering movements to the right and left.-This 22mm selector switch is modularly designed to make assembly.-Rubber bushing is oil-resistant and dust-preventive.-Widely used in the steel and construction industry, in machine tools, for transport and conveyor systems, in the system and mechanical engineering sectors and for warehousing and studio technology. Specification:Insulation Voltage (Ui): 600VHeating Current (Ith): 10AAction Type: MomentaryPositions: 4Contacts Type: 1 NO Contact Per DirectionTerminals Type: Screw Clamps TerminalsPanel Mounting Diameter: 22mm / 7/8"Overall Size: 142 x 40 x 30mm / 5.59" x 1.57" x 1.18" (L*W*H)Joystick Length: 77mm / 3.03"
