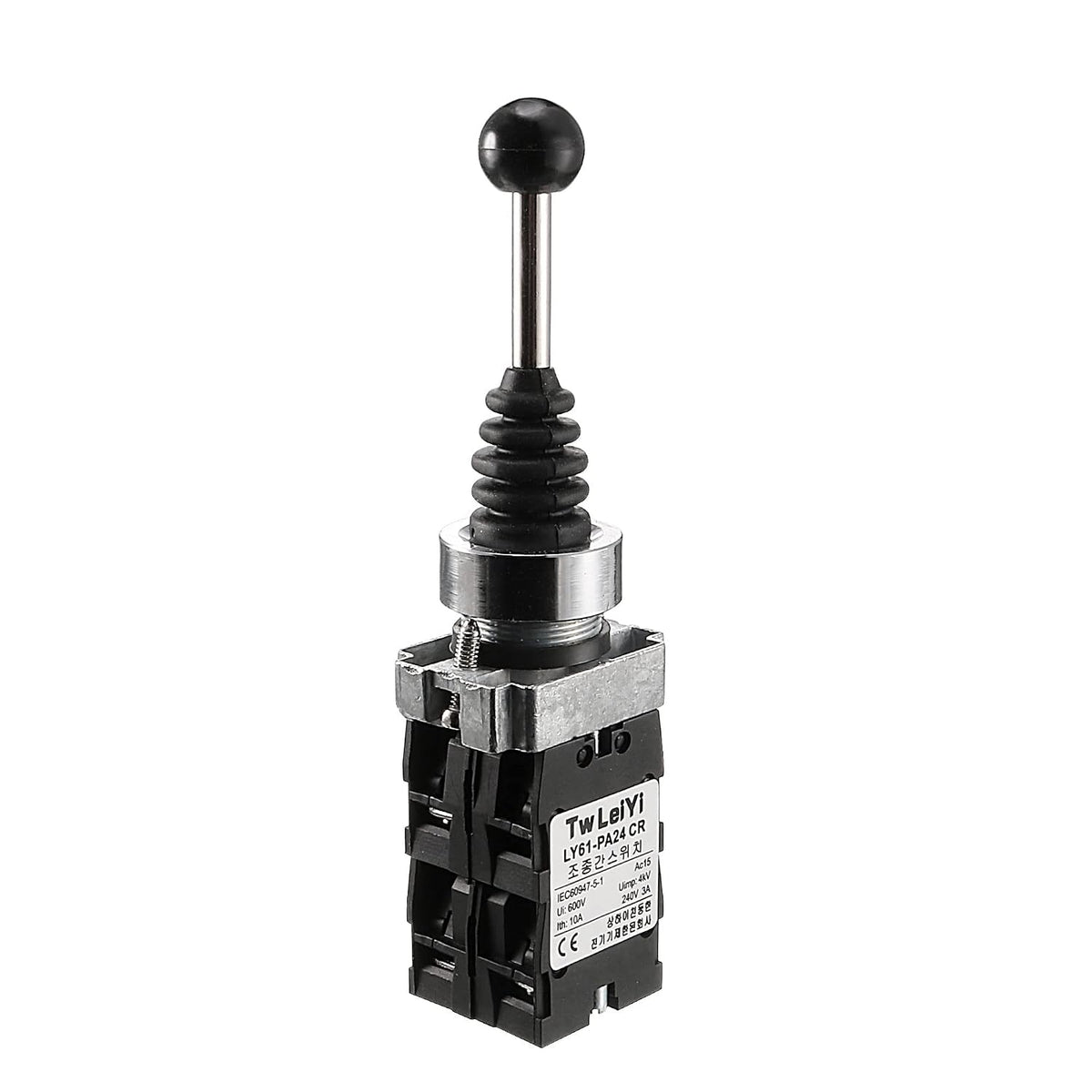

Joystick Switch Controllers 4 Position 4NO Momentary Type 240V/600V 3A/10A 22mm Panel Mount

Key Features

• Operate at 4 directions, with the 30 degrees of operation handle
• Momentary type operation with 1 normally open contact per direction
• Rated Voltage 240V / 600V; Rated Current 3A / 10A; Impulse Withstand Voltage 4kV
• Simply drill an 22mm (7/8") hole and secure it with the screw ring
• Widely used in automation and security, install the system and control, power monitoring, critical power and cooling service, etc

Product Description

Description

-Joystick switches are manually actuated controller for installation in control and front panels as well as in portable control equipment.- controllers are used wherever motion to the actuation direction is controlled by hand.-They are for raising, lowering, and triggering movements to the right and left.-This 22mm selector switch is designed to make the assembly.-Rubber bushing is oil-resistant and dust-preventive.-Widely used in the steel and construction industry, in machine tools, for transport and conveyor systems, in the system and mechanical engineering sectors and for studio technology. Specification:Rated Voltage: 240V / 600VRated Current: 3A / 10AInsulation Voltage (Ui): 600VHeating Current (Ith): 10AImpulse Withstand Voltage: 4kV-6kVAction Type: MomentaryPositions: 4Contacts Type: 1 NO Contact Per DirectionTerminals Type: Screw Clamps TerminalsPanel Mounting Diameter: 22mm / 7/8"Overall Size: 144 x 40 x 30mm / 4.72" x 1.57" x 1.18" (L*W*H)Joystick Length: 76mm / 2.99"
