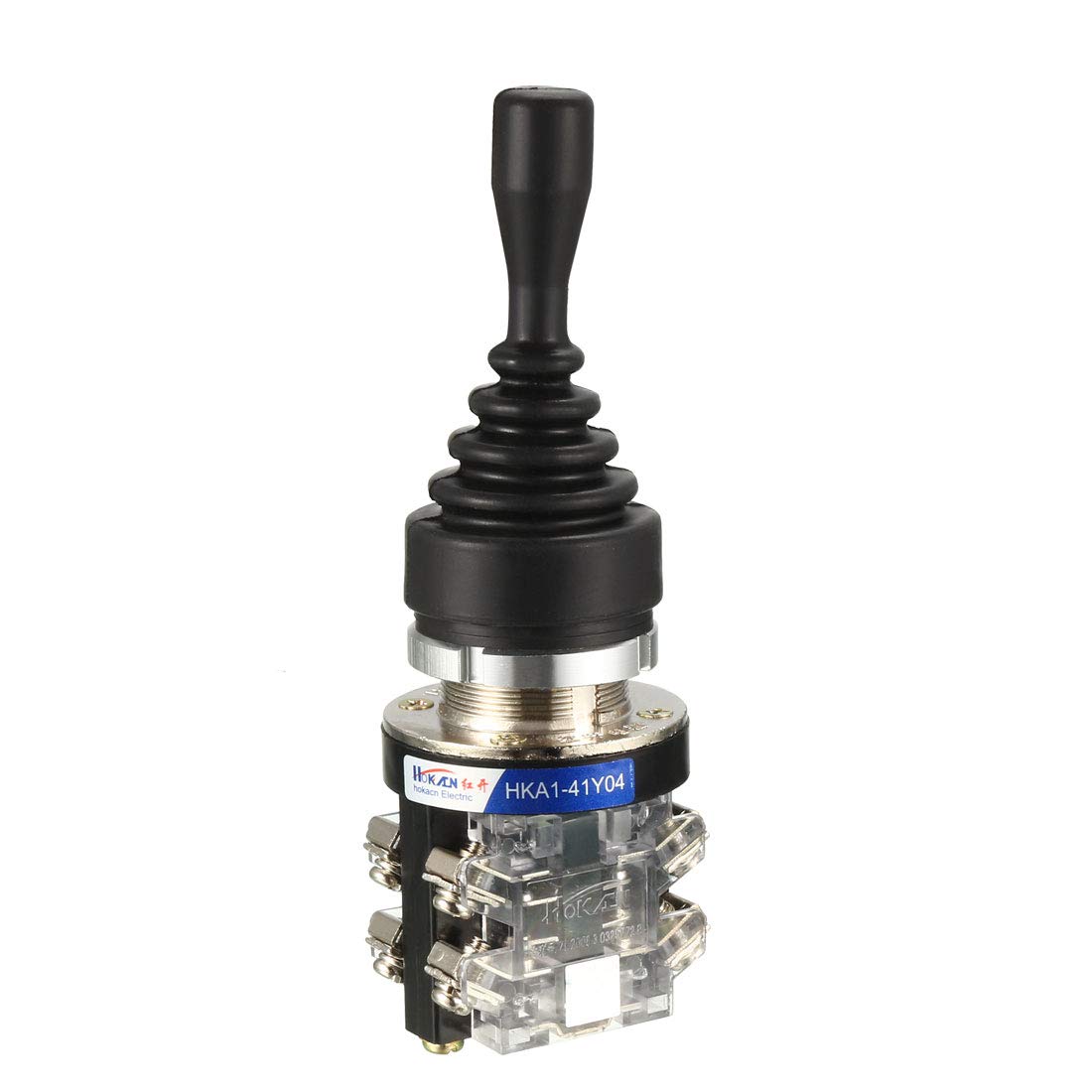

Joystick Switch Controllers 4 Position 4NO Latching Type 150V/250V/600V 30mm Panel Mount HKA1-41Y04

Key Features

• Operate at 4 directions, with the 30 degrees declination of operation handle
• Latching type operation with 1 normally open contact per direction
• Rated Voltage 150V / 250V / 600V; Rated Current 15A / 10A / 5A
• Simply drill an 30mm (1-17/94") hole and secure it with the screw ring
• Widely used in automation and security, install the system and control, power monitoring, critical power and cooling service, etc

Product Description

Description

-Joystick switches or joysticks are manually actuated control devices for installation in control and front panels as well as in portable control equipment.- controllers are used wherever motion sequences analogous to the actuation direction are controlled by hand.-They are ideal for raising, lowering and triggering movements to the right and left.-This 30mm selector switch is modularly designed to make assembly.-Rubber bushing is oil-resistant and dust-preventive.-This selector switch is modularly designed to make assembly.-Widely used in the steel and construction industry, in machine tools, for transport and conveyor systems, in the system and mechanical engineering sectors and for warehousing and studio technology. Specification:Model: HKA1-41Y04Rated Voltage: 150V / 250V / 600VRated Current: 15A / 10A / 5AAction Type: LatchingPositions: 4Contacts Type: 1 NO Contact Per DirectionTerminals Type: Screw Clamps TerminalsPanel Mounting Diameter: 30mm / 1-17/94"Overall Size: 145 x 49mm / 5.71" x 1.93" (L*D)Joystick Length: 78mm / 3.07"
