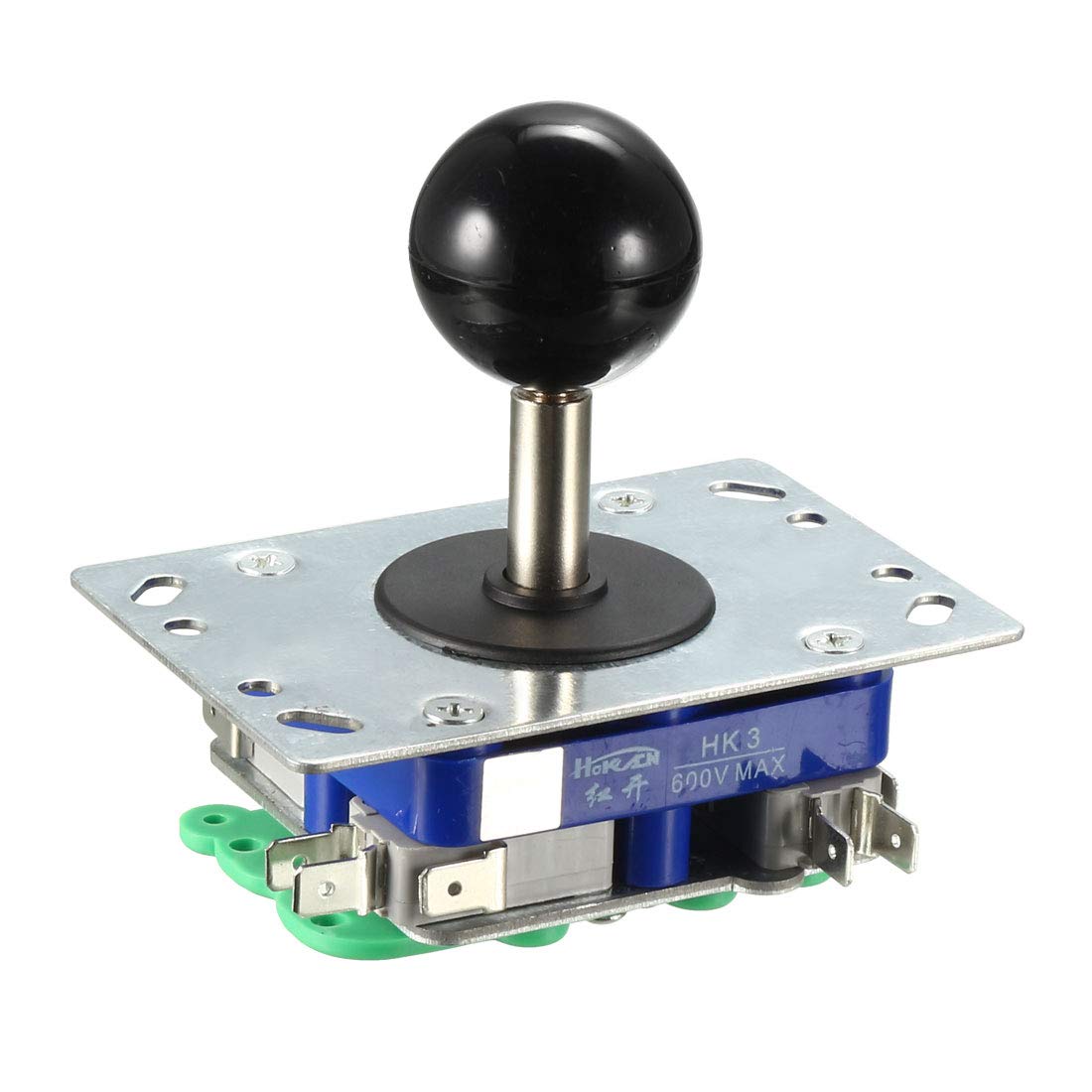

Joystick Switch Controllers 4 Position 4NO+4NC Momentary Type 150V/250V/600V HK3

Key Features

• Operate at 4 directions, with the 20 degrees declination of operation handle
• Momentary type operation with 1 normally open contact per direction
• Rated Voltage 150V / 250V / 600V; Rated Current 15A / 10A / 4A
• This selector switch is modularly designed to make assembly
• Widely used in automation and security, install the system and control, power monitoring, critical power and cooling service, etc

Product Description

Description

-Joystick switches or joysticks are manually actuated control devices for installation in control and front panels as well as in portable control equipment.- controllers are used wherever motion sequences analogous to the actuation direction are controlled by hand.-They are ideal for raising, lowering and triggering movements to the right and left.-This selector switch is modularly designed to make assembly.-Widely used in the steel and construction industry, in machine tools, for transport and conveyor systems, in the system and mechanical engineering sectors and for warehousing and studio technology. Specification:Model: HK3Rated Voltage: 150V / 250V / 600VRated Current: 15A / 10A / 4AAction Type: MomentaryPositions: 4Contacts Type: 4 Normally Open and 4 Normally ColsedOverall Size: 102 x 97 x 65mm / 4.02" x 3.82" x 2.56" (L*W*H)Joystick Length: 60mm / 2.36"
