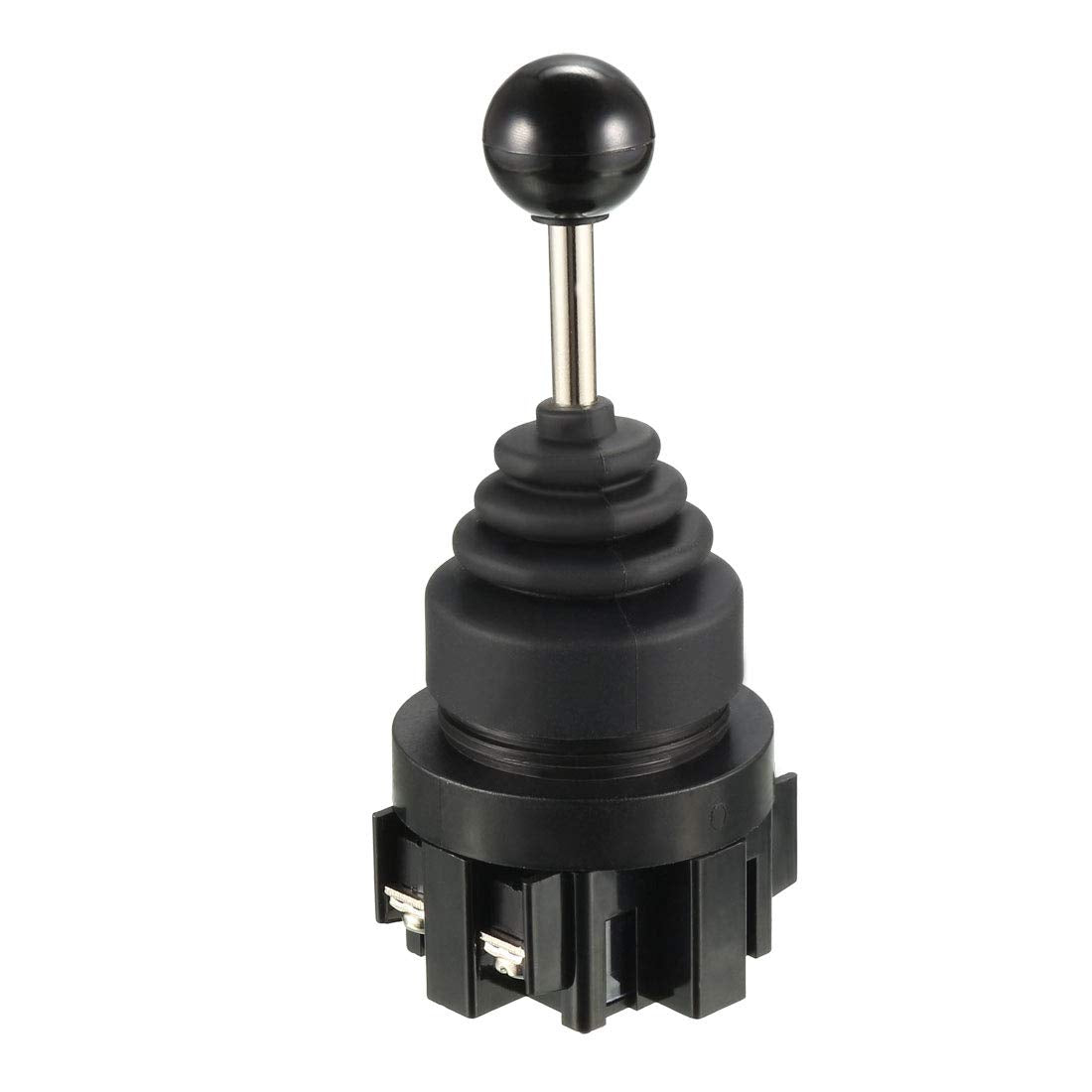

Joystick Switch Controllers 2 Position 2NO Momentary Type AC 380V 10A 30mm Panel Mount

Key Features

• Operate at 2 directions, with the 30 degrees declination of operation handle
• Momentary type operation with 1 normally open contact per direction
• Rated Voltage AC 380V; Rated Current 10A; Max. Voltage 600V
• Simply drill an 30mm (1-17/94") hole and secure it with the screw ring
• Widely used in automation and security, install the system and control, power monitoring, critical power and cooling service, etc

Product Description

Description

-Joystick switches or joysticks are manually actuated control devices for installation in control and front panels as well as in portable control equipment.- controllers are used wherever motion sequences analogous to the actuation direction are controlled by hand.-They are ideal for raising, lowering and triggering movements to the right and left.-This 30mm selector switch is modularly designed to make assembly.-Rubber bushing is oil-resistant and dust-preventive.-Widely used in the steel and construction industry, in machine tools, for transport and conveyor systems, in the system and mechanical engineering sectors and for warehousing and studio technology. Specification:Rated Voltage: AC 380VRated Current: 10AMax. Voltage: 600VAction Type: MomentaryPositions: 2Contacts Type: 1 NO Contact Per DirectionTerminals Type: Screw Clamps TerminalsPanel Mounting Diameter: 30mm / 1-17/94"Overall Size: 123 x 51 x 51mm / 4.84" x 2" x 2" (L*W*H)Joystick Length: 90mm / 3.54"
