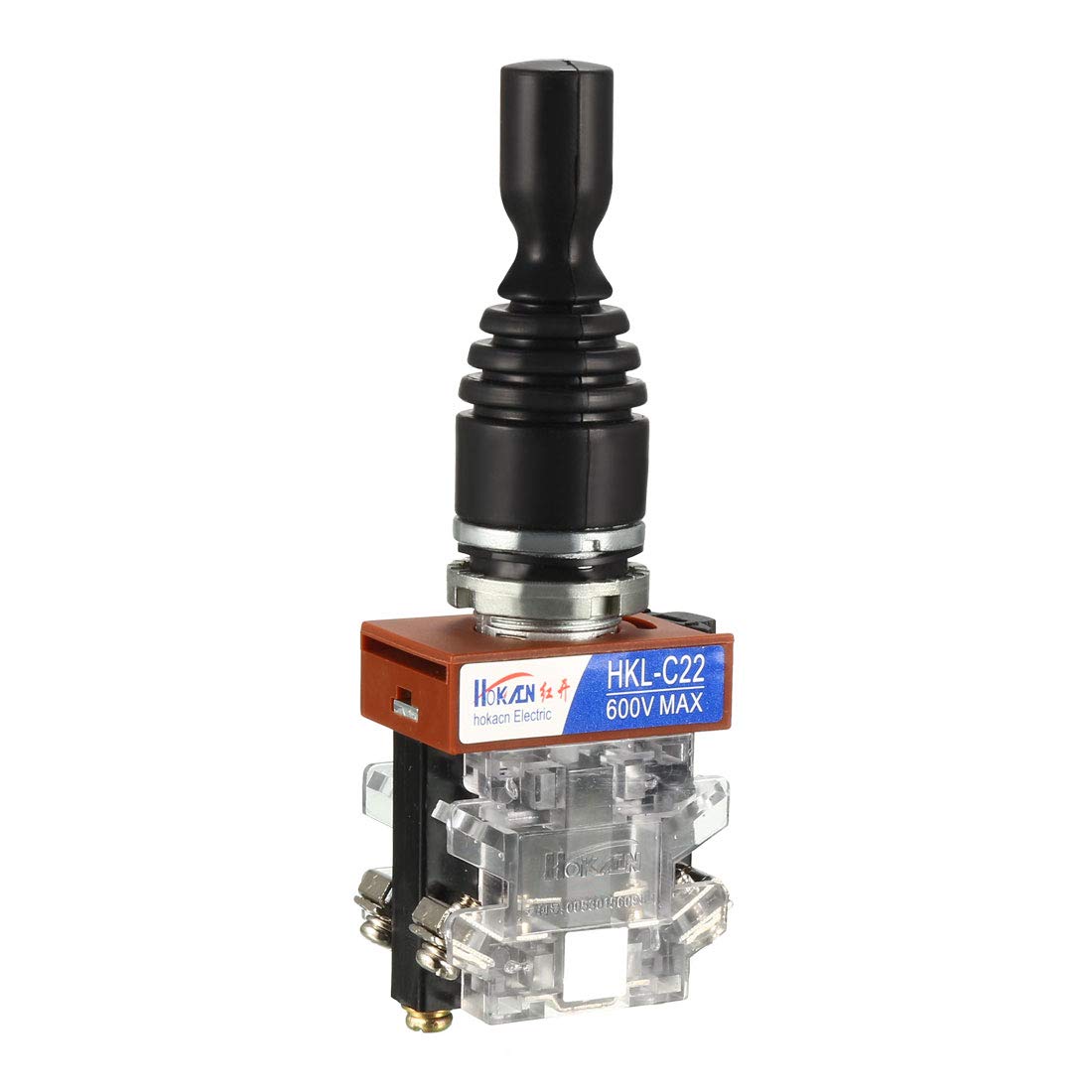

Joystick Switch Controllers 2 Position 2NO Momentary Type 150V/250V/600V 22mm Panel Mount HKL-C22

Key Features

• Operate at 2 directions, with the 20 degrees declination of operation handle
• Momentary type operation with 1 normally open contact per direction
• Rated Voltage 150V / 250V / 600V; Rated Current 15A / 10A / 4A
• Simply drill an 22mm (7/8") hole and secure it with the screw ring
• Widely used in automation and security, install the system and control, power monitoring, critical power and cooling service, etc

Product Description

Description

-Joystick switches or joysticks are manually actuated control devices for installation in control and front panels as well as in portable control equipment.- controllers are used wherever motion sequences analogous to the actuation direction are controlled by hand.-They are ideal for raising, lowering and triggering movements to the right and left.-This 22mm selector switch is modularly designed to make assembly.-Rubber bushing is oil-resistant and dust-preventive.-Widely used in the steel and construction industry, in machine tools, for transport and conveyor systems, in the system and mechanical engineering sectors and for warehousing and studio technology. Specification:Model: HKL-C22Rated Voltage: 150V / 250V / 600VRated Current: 15A / 10A / 4AAction Type: MomentaryPositions: 2Contacts Type: 1 NO Contact Per DirectionTerminals Type: Screw Clamps TerminalsPanel Mounting Diameter: 22mm / 7/8"Overall Size: 135 x 49 x 30mm / 5.31" x 1.93" x 1.18" (L*W*H)Joystick Length: 70mm / 2.76"
