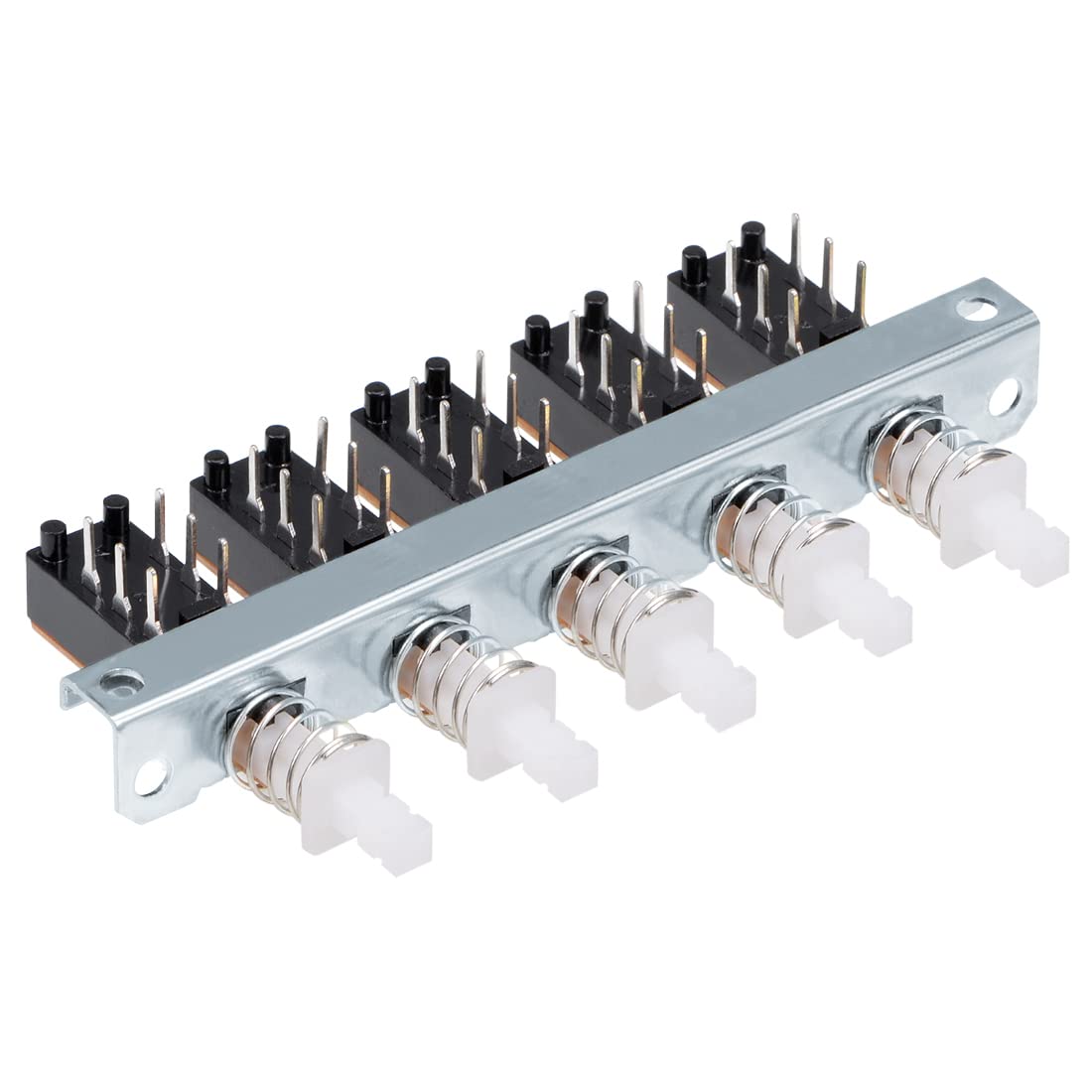

Interlock Push Button Switch Piano Type DPDT 6 Pin 5 Row

Key Features

• [Standard] - DPDT 6Pins 4mm Pitch 5 Position
• [Interlock Switch] - The switch operates one at a time (when one actuator is pressed and the other is released)
• [Features] - Mechanism design offers acute operation and long service life
• [Applications] - Ideal for mounting on PCB motherboard of many electric appliances
• [Package Content] - 1 x Push Button Switch

Product Description

Specifications

Material: Plastic, MetalSwitch Operation: InterlockContact Configuration: DPDTTerminal Type: Straight Through HolePin Quantity: 6Each Pin Pitch: 4mmPosition Quantity: 5End Width: 9mm / 0.35-inchMounting Pillar Distance: 5mm / 0.20-inchMounting Hole Distance: 79.5mm / 3.13-inchEach Cap Part Distance: 15mm / 0.59-inchCap Mounting Part: 8 x 3.3mm / 0.31-inch x 0.13-inch(L*W)Overall Size: 42 x 87 x 18mm / 1.65-inch x 3.43-inch x 0.71-inch(L*W*H) Package Contents:1 x Push Button Switch

Description

Interlock contact, 6 pins, DIP through hole mounting.Used in the fields of electronic products, household appliances and more.High precision mechanism design offers acute operation and long service life.
