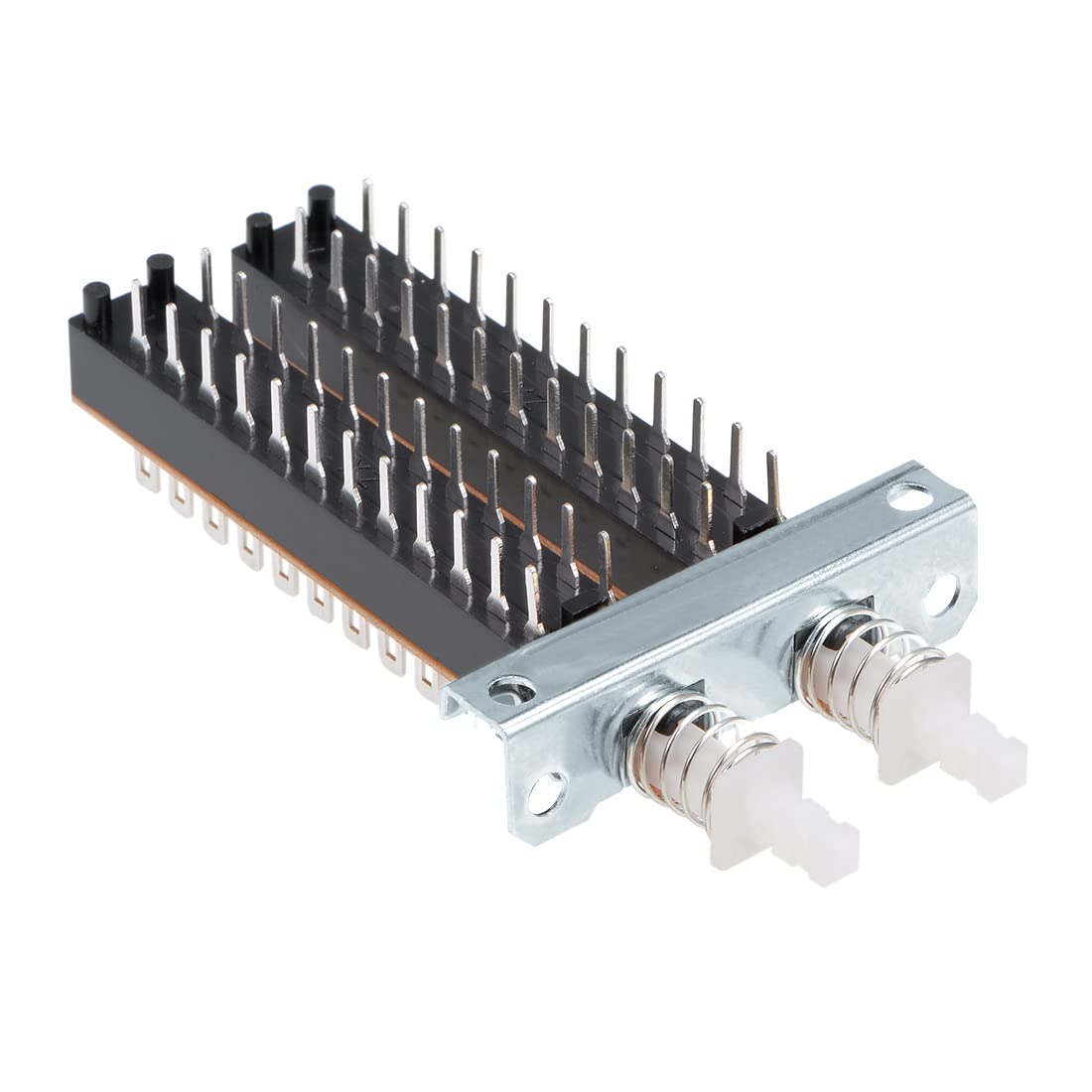

Interlock Push Button Switch Piano Type 8PDT 24 Pin 2 Row

Key Features

• [Standard] - 8PDT 24 Pins 4mm Pitch 2 Position
• [Interlock Switch] - The switch operates one at a time (when one actuator is pressed and the other is released)
• [Features] - Mechanism design offers acute operation and long service life
• [Applications] - Ideal for mounting on PCB motherboard of many electric appliances
• [Package Content] - 1 x Push Button Switch

Product Description

Specifications

Material: Plastic, MetalSwitch Operation: InterlockContact Configuration: 8PDTTerminal Type: Straight Through HolePin Quantity: 24Each Pin Pitch: 4mmPosition Quantity: 2End Width: 9mm / 0.35-inchMounting Pillar Distance: 5mm / 0.20-inchMounting Hole Distance: 34.5mm / 1.39-inchEach Cap Part Distance: 15mm / 0.59-inchCap Mounting Part: 8 x 3.3mm / 0.31-inch x 0.13-inch(L*W)Overall Size: 79 x 41 x 18mm / 3.11-inch x 1.61-inch x 0.71-inch(L*W*H) Package Contents:1 x Push Button Switch

Description

Interlock contact, 24 pins, DIP through hole mounting.Used in the fields of electronic products, household appliances and more.High precision mechanism design offers acute operation and long service life.
