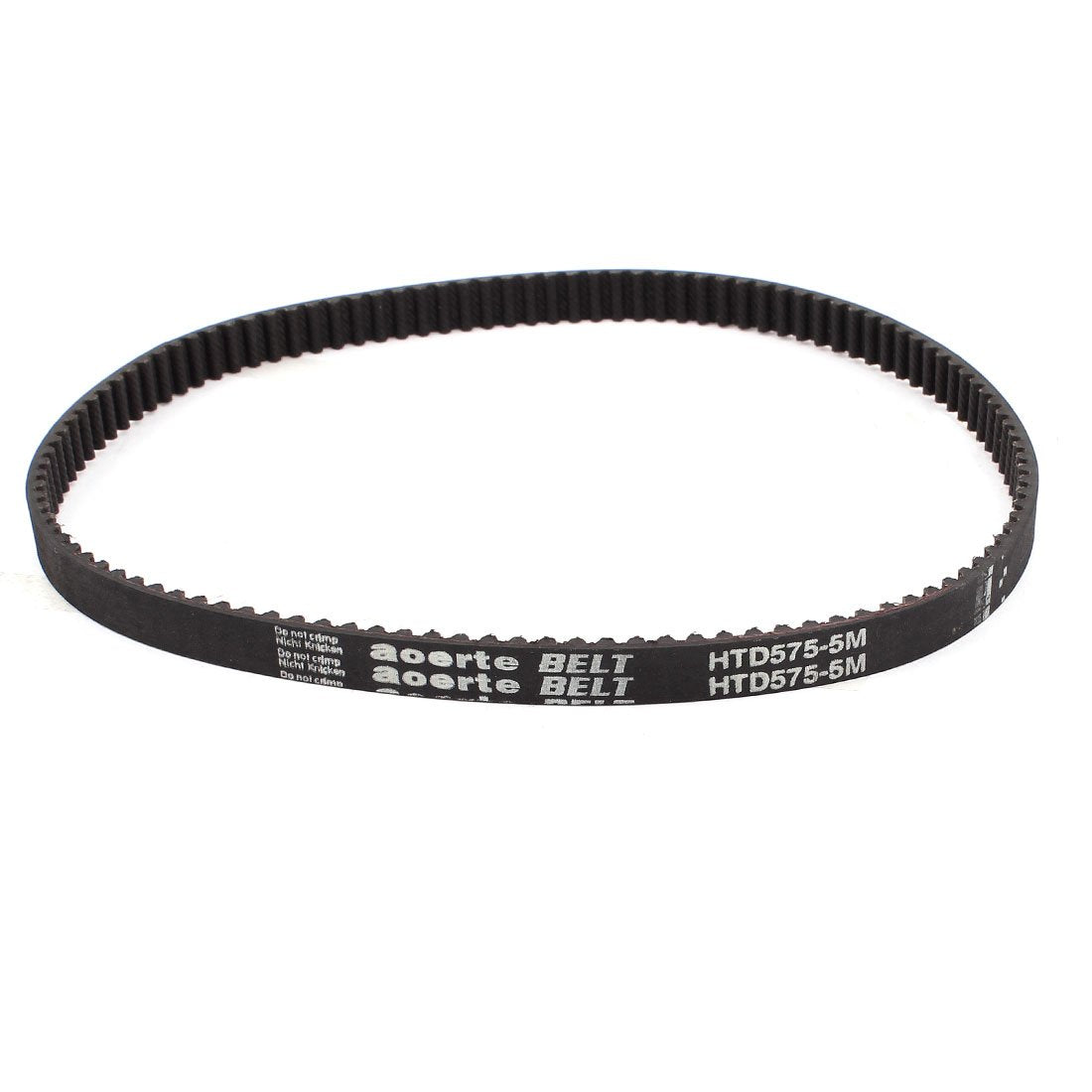

HTD575-5M 10mm Width 5mm Pitch Synchronous Timing Belt for 3D Printer

Key Features

• Product Name Timing Belt;Model HTD575-5M;Number of Teeth 115
• Pitch 5mm / 0.2";Tooth Height 2.06mm / 0.08";Tooth Width 3.05mm / 0.12"
• Belt Width 10mm / 0.4";Belt Section Girth 575mm/ 1.9Ft/ 22.6"; Outer Perimeter 590mm/1.94Ft/23.23"; Total Height 3.8mm/0.15"
• Belt Material Neoprene (Synthetic Rubber);Core Wire Material Glass Fiber;Color Black
• Net Weight 27g;Package Content 1 x Timing Belt

Product Description

Made from NEOPRENE - Synthetic Rubber reinforced with fiberglass cords for superior strength. Resists degradation from sun, ozone and weather Remains useful over a wide temperature range. Displays outstanding physical toughness. Resists burning inherently better than exclusively rubbers. Outstanding resistance to damage caused by flexing and twisting. Widely used in the textile, automobile, chemical fiber, paper, printing, chemical mechanical equipment.

Specifications
