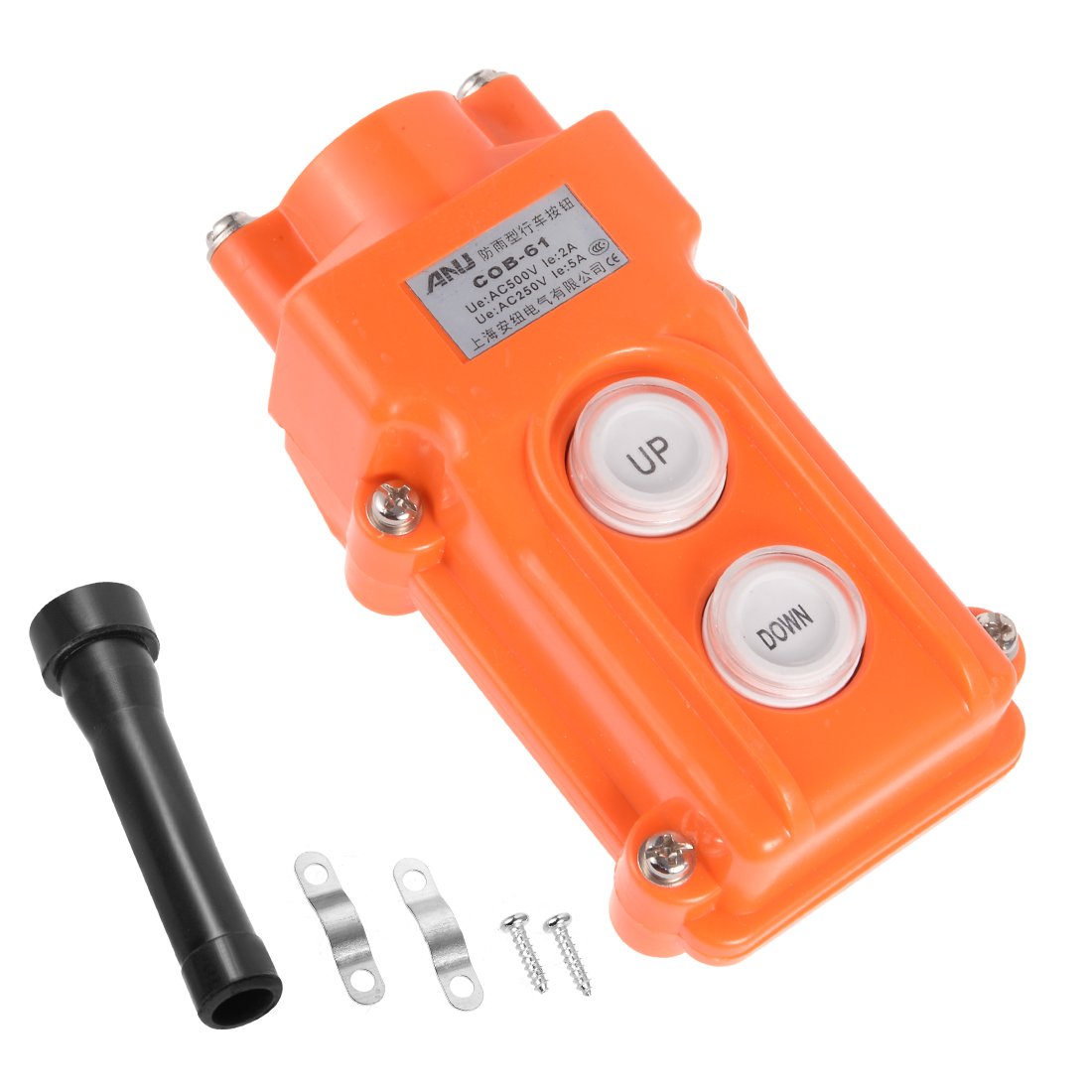

Hoist Crane Pendant Control Station Push Button Switch Up Down 2 Buttons

Key Features

• Product Name Hoist Crane Pushbutton Switch;Push Buttons 2 Ways Up, Down
• Model COB-61;Operation Type Momentary; Material ABS,Metal
• Package Content 1 x Hoist Crane Pushbutton Switch; Ue/Ie AC500V/250V 2A/5A
• Total Size 12.2 x 5.9 x 5cm / 4.8" x 2.3" x 2" (L*W*H); Jointing Sleeve Size 11.2 x 1.2cm / 4.4" x 0.5" (L*D)
• Suitable for open-air, rain and snow, and more dust against the environment, such as remote control of cranes, electric hoist and other equipment used.

Product Description

Features

Model: COB-61Operation Type: MomentaryMaterial: ABS,MetalUe/Ie: AC500V/250V 2A/5A Push Buttons: 2 Ways: Up, DownTotal Size: 12.2 x 5.9 x 5cm / 4.8-inch x 2.3-inch x 2-inch (L*W*H) Jointing Sleeve Size: 11.2 x 1.2cm / 4.4-inch x 0.5-inch (L*D)

Descriptions

Features

Up, Down 2 push buttons.ABS housing, comes with a rubber jointing sleeve, waterproof.Suitablel pendant control station for Hoist and Crane. Instructions for use:1.Remove the end caps, install the sealing sheaths, and fasten them to the end faces of the buttons by screws2.Remove the bottom cover, put all the control wires into the sealing sheath, and fasten them to the terminals of each button according to the electrical schematic.3.Check or test the wiring is correct. If everything is normal, bundle the leads and fix them, and finally reinstall the bottom cover.

Specifications
