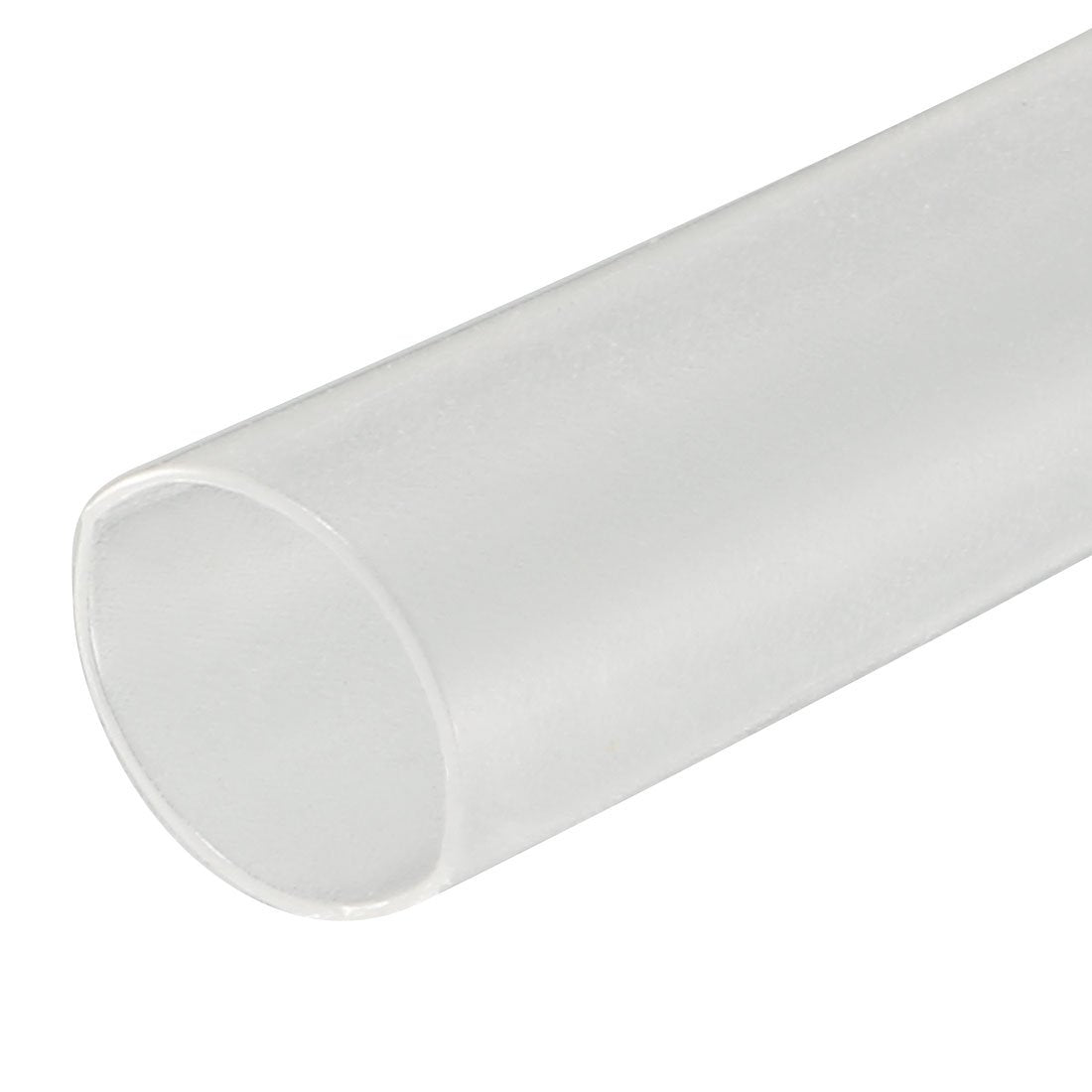

Heat Shrink Tubing 1/8"(3.5mm) Dia 10m 2:1 Heat Shrink Tube Wire Wrap Clear

Key Features

• Diameter(Before Shrinking) 3.5mm / 0.14" ; Length ( approx.) 10m / 32.8ft; Shrink rate 21.
• Operating Temperature -55 to 125 Degree Celsius
• Minimum Shrinkage Temp +70 Degree Celsius; Full Shrinkage Temp +125 Degree Celsius maximum.
• Heat shrink tubing is good useful, of the specification of good electrical insulation, corrosion resistance and high temperature resistance.
• Widely Applications Electrical Insulation, Wire Protection, Cable Bonding, Data Cable Decoration, Color-Coding, Wire Marking, Wire Bundling & more.

Product Description

Features

• Corrosion Resistance- Good Electrical Insulation- High-strength Toughness- High Temperature Resistant- Waterproof Resistant- Long Service Life

How To Use

1. CHOOSE THE RIGHT SIZE TUBE. Measure the diameter of wire/cable you want to wrap, make sure the diameter is equal to the size of heat shrink tube , because the tube will shrink up to 1/2 of original diameter after heating.2. WRAP THE WIRE WITH THE TUBE. Cut out the length you need, wrap the wire with the tube, use a lighter, hair dryer or heat gun to heat the tube.3. HEAT THE TUBE UNTIL THE WIRE IS WRAPPED TIGHTLY.

Specifications

Material: Polyethylene Shrinkage rate: 2:1 ( will maximum shrink to 1/2 of its supplied diameter ) Minimum Shrinkage Temp: +70 Degree Celsius Full Shrinkage Temp: +125 Degree Celsius maximum Operating Temperature:-55 to 125 Degree Celsius Rated voltage: 1000V Dielectric strength: 1 KV Item Shape: Round/Flat
