Hand Tool Pull Push Action Toggle Clamp Quick-Release Clamp 850 lbs/386kg Holding Capacity 42mm Stroke

Key Features

• Red vinyl hand grip design with cushioned rib profile for improved user convenience.Clamp body and linkage are zinc plated to keep from corrosion
• Toggle clamps can be used in the metal working industry when drilling, welding, bending, grinding, testing and fitting as well as in the wood and plastic industry in glueing, drilling, cutting and milling jigs.
• Clamps with adjustable spindles are manufactured with a formed end to the arm, which captivates the spindle should it become loose during operation Flanged washers are supplied with all slotted arm versions.

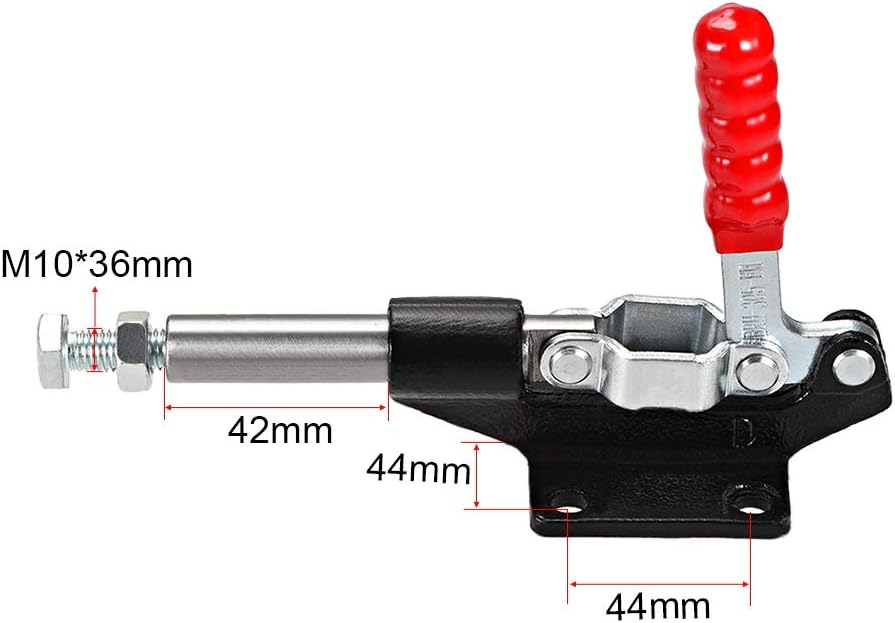

• Type Pull Push Action;Surface Progress Zinc-coated;Material Carbon Steel;Holding Capacity (Lb/Kg)850 lbs/386kg;Handle Opens180 degree;Thread SizeM10*36mm (D*L);Overall Size165*57*98mm(L*W*H);Mounting Size 44*44mm;Stroke42mm
• Fixed stop automatically limits the handle travel at various clamping positions.Integrated lock-out hole for pin or lock.

Product Description

Feartures: Red vinyl hand grip design with cushioned rib profile for improved user convenience.Clamp body and linkage are zinc plated to keep from corrosionToggle clamps can be used in the metal working industry when drilling, welding, bending, grinding, testing and fitting as well as in the wood and plastic industry in glueing, drilling, cutting and milling jigs.Clamps with adjustable spindles are manufactured with a formed end to the arm, which captivates the spindle should it become loose during operation Flanged washers are supplied with all slotted arm versions.Fixed stop automatically limits the handle travel at various clamping positions.Integrated lock-out hole for pin or lock. Specification: Type: Pull Push ActionSurface Progress: Zinc-coatedMaterial: Carbon SteelHolding Capacity (Lb/Kg):850 lbs/386kgHandle Opens:180 degreeThread Size:M10*36mm (D*L)Overall Size:165*57*98mm(L*W*H)Mounting Size: 44*44mmStroke:42mm Package Content: 1 x Toggle Clamp
