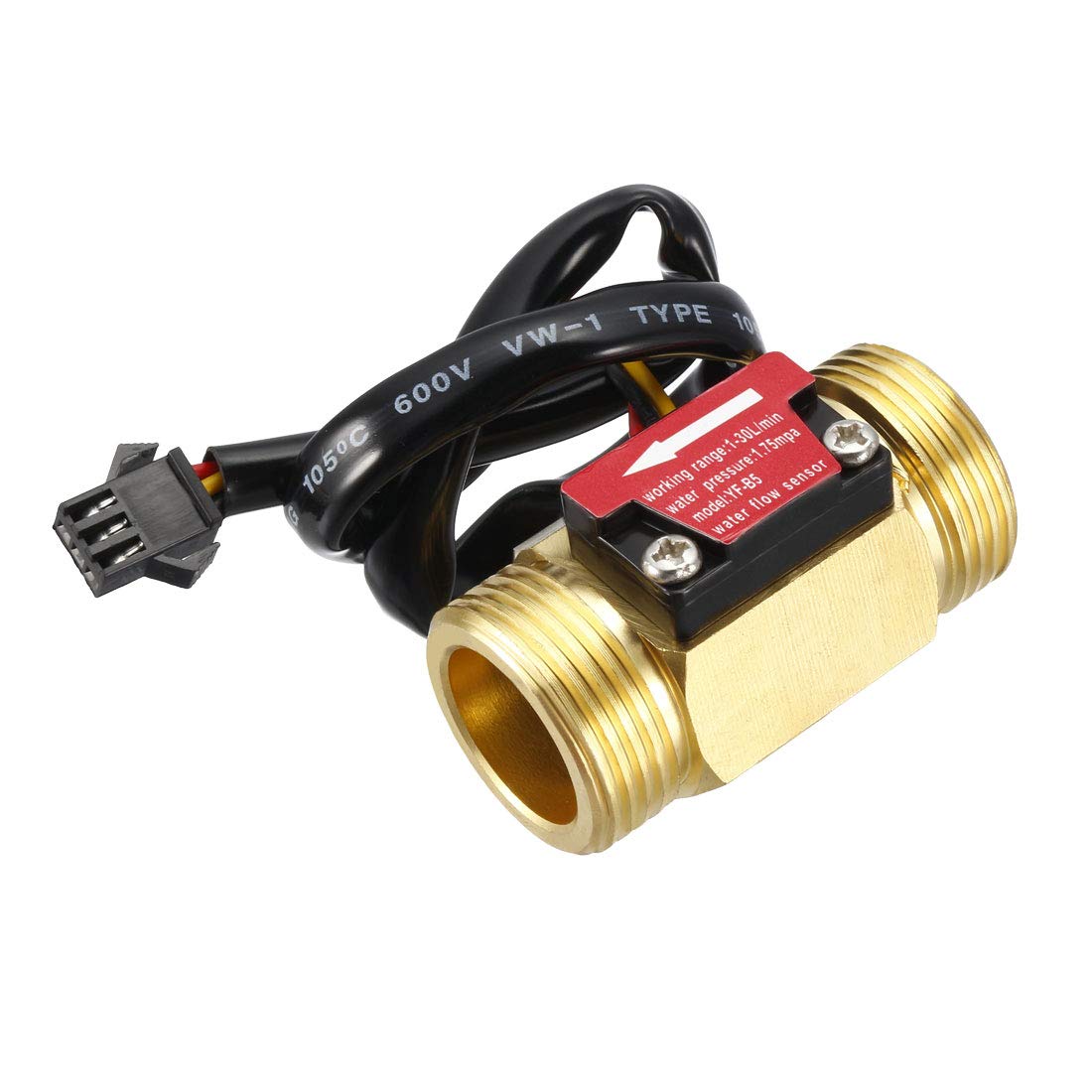

G3/4 Hall Effect Liquid Water Flow Sensor Switch Flowmeter Meter Counter DC 5V 1-30L/min YF-B5

Key Features

• Stable, high temperature, low water pressure start.
• Brass material, small size, easy to install.Hall element is imported, water-proof design to prevent water ingress,The inside of the impeller is inlaid with a stainless steel shaft and is always wear-resistant.
• Three wire connection Red for positive, black for negative, yellow for pulse signal.
• The water flow sensor is applied for water heater, and can be used as flow switch.
• Maximum water pressure 1.75MPa, flow range 1-30L/min.

Product Description

1.Water Flow Switch adopts a Magnetic Reed Switch, G3/4 male threaded ports each end. Equipped with filter water entry.2.Mainly used for water heater, boiler, water dispensers, coffee machines, hot card machines, steam equipment, water system, the campus card sales, selling self-help water systems, water treatment equipment, cooling systems, mechanical equipment, instrumentation.3. Three wire connection: Red for positive, black for negative, yellow for pulse signal.

Specifications

Product Name: Water Flow SensorMaterial: Brass(Shell)Size: 50mm x 30mm x 33mm / 1.97" x 1.18" x 1.3"(L*W*H)Cable Length: 300mm / 11.81" Liquid Temperature: Not More Than 60CRated Voltage: DC 5VMax Current: 10mA(DC 5V)Maximum water pressure: 1.75MPaFlow range: 1-30L/minConnector: Male SM-3PExternal Thread Diameter: G3/4Ingress Protection Rating: IP65Color: Brass ToneNet Weight: 128g Package Included:1 x Water Flow Sensor

Note

1. Installed in accordance with flow direction in the product, otherwise there is no signal output.2. A filter screen must be installed at the inlet of the sensor, in order to avoid particles and debris entering the sensor.
