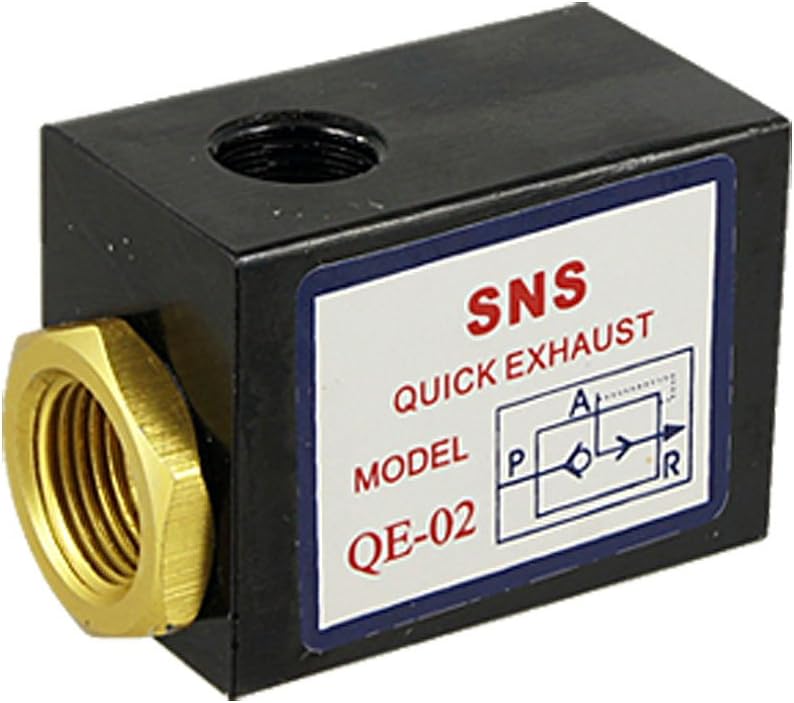

G1/4" Pipe One Way Flow Pneumatic Exhaust Control Valve QE-02

Key Features

• Product Name Quick Exhaust Valve;Model QE-02;Power Pneumatic;Working medium Air
• Flow Direction One Way;Joint Pipe Bore Size G 1/4'';Thread Diameter 15mm/0.59'' (Max.), 11.5mm/0.45'' (Min.)
• Effective Section Area 27.5 mm2; Working pressure 0.1 ~ 1.0Mpa; Working temperature 0~60 oC
• Total Size 5.4 x 2.7 x 3.5cm/2.1'' x 1.1'' x 1.4'' (L*W*H); Material Metal
• Color Black; Net Weight 107g; Package Content 1 x Exhaust Valve

Product Description

It is a basic element for changing air flow direction in pneumatic system.The gas directly through the exhaust valve quickly exhaust,cylindertoachieve rewind action. Can avoid the pneumatic system from damage and reduce thermal effect.
