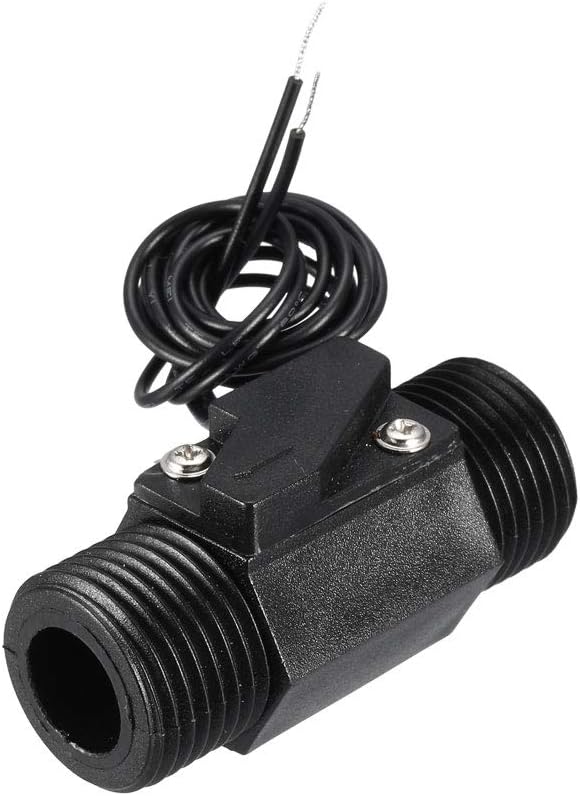

G1/2 Hall Effect Liquid Water Flow Sensor Switch Flowmeter Counter 1-25L/min Black
Key Features
- Light weight, small size, easy to install.
- Mainly used for water heater, boiler, water dispensers, coffee machines, hot card machines, steam equipment, ect.
- Water Flow Switch adopts a Magnetic Reed Switch
- G1/2 male threaded ports each end.
- Maximum water pressure 1.5MPa, flow range 1-25L/min.
Product Description
1.Water Flow Switch adopts a Magnetic Reed Switch, G1/2 male threaded ports each end.2.Mainly used for water heater, boiler, water dispensers, coffee machines, hot card machines, steam equipment, water system, the campus card sales, selling self-help water systems, water treatment equipment, cooling systems, mechanical equipment, instrumentation.
Specifications
Product Name: Water Flow SwitchMaterial: Plastic(Shell)Size: 53mm x 25mm x 26mm / 2.09" x 0.98" x 1.02"(L*W*H)Cable Length: 370mm / 14.57"Working Voltage: DC 0-110VMaximum Switching Current: 0.5ARated Voltage: DC 5VMax Current: 10mA(DC 5V)Maximum Load Power: 10WMaximum water pressure: 1.5MPaFlow range: 1-25L/minMale Thread Diameter: G1/2Ingress Protection Rating: IP65Color: BlackNet Weight: 22g Package Included:1 x Water Flow Switch
Note
- Installed in accordance with flow direction in the product, otherwise there is no signal output.2. A filter screen must be installed at the inlet of the switch, in order to avoid particles and debris entering the switch.
Specifications
| Item Weight | 0.634 ounces |
| Product Dimensions | 5.5 x 4 x 0.7 inches |
