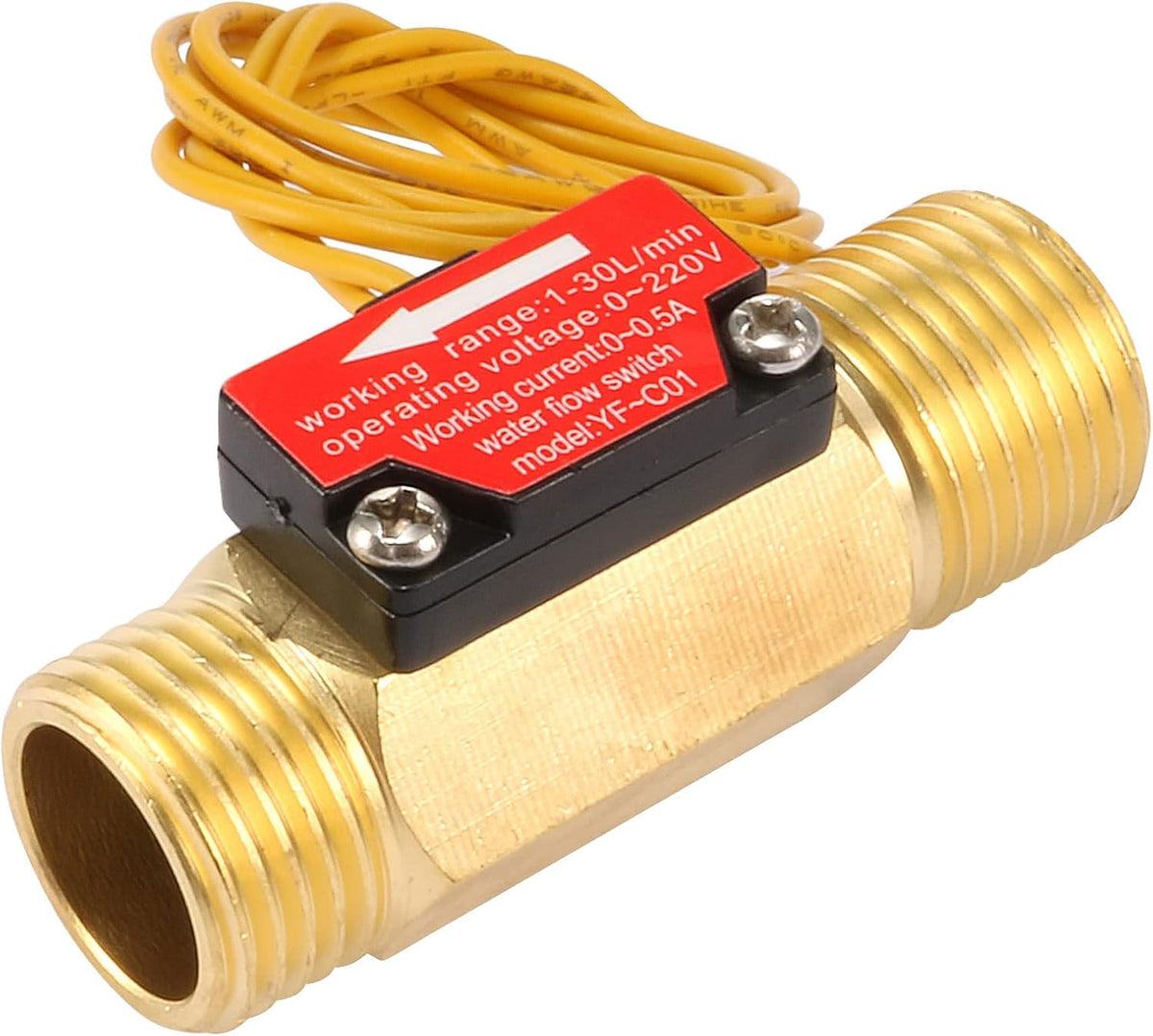

G1/2 Hall Effect Liquid Water Flow Sensor Switch Flow Meter Counter 1-30L/min YF-C01

Key Features

• Stable, high temperature, low water pressure start.
• Brass material, small size, easy to install.
• Mainly used for water heater, boiler, water dispensers, coffee machines, hot card machines, steam equipment, ect.
• The water flow sensor is applied for water heater, and can be used as flow switch.
• Maximum water pressure 2MPa, flow range 1-30L/min.

Product Description

Specifications

Product Name: Water Flow SwitchMaterial: Brass(Shell)Size: 62mm x 24mm x 28mm / 2.44" x 0.94" x 1.1"(L*W*H)Cable Length: 290mm / 11.42"Working Voltage: DC 0-220VWorking Current: 0-0.5ARated Voltage: DC 5VMax Current: 10mA(DC 5V)Maximum Load Power: 10WMaximum water pressure: 2MPaFlow range: 1-30L/minExternal Thread Diameter: G1/2Color: Brass ToneNet Weight: 117g Package Included:1 x Water Flow Switch

Note

1. Installed in accordance with flow direction in the product, otherwise there is no signal output.2. A filter screen must be installed at the inlet of the sensor, in order to avoid particles and debris entering the sensor.
