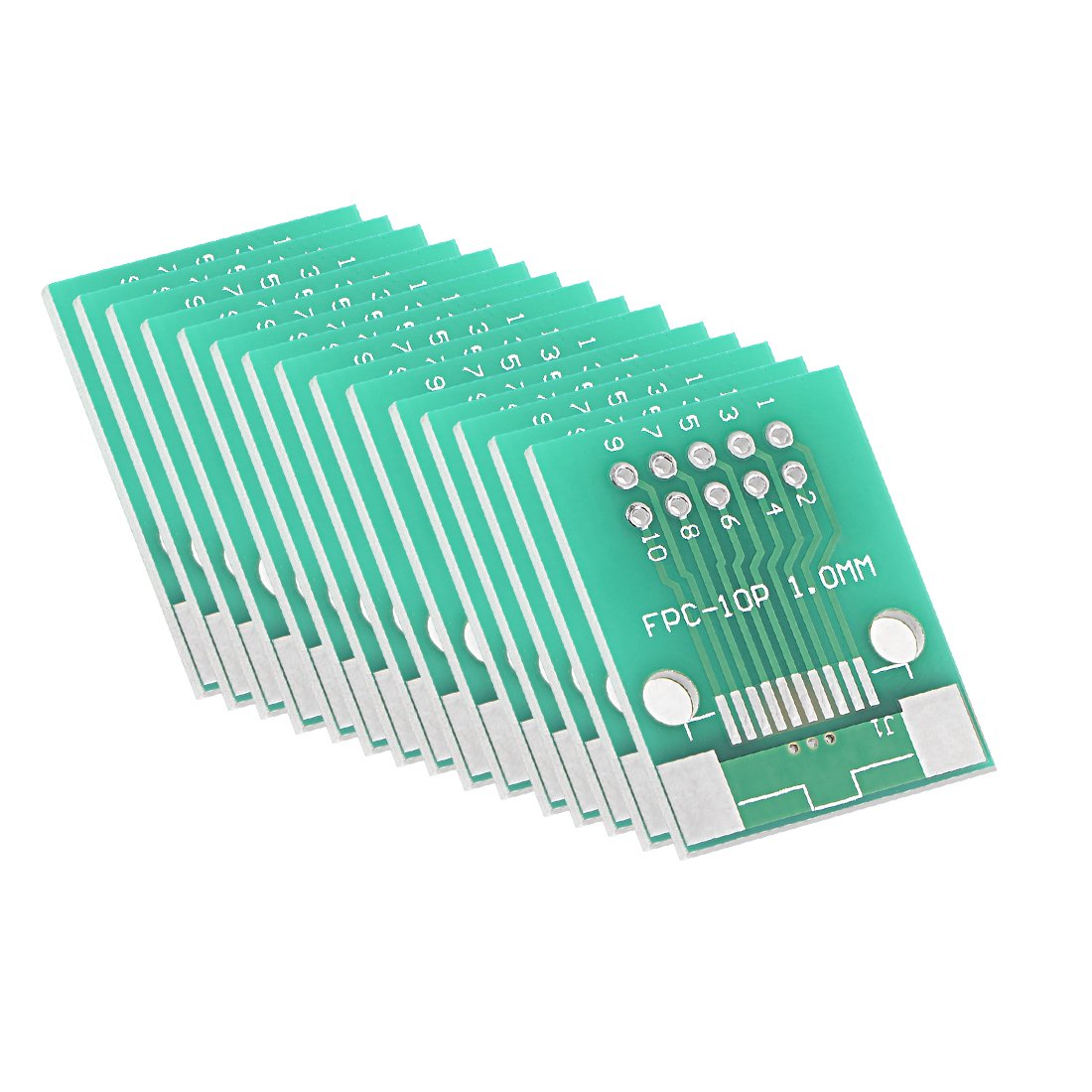

FPC 10P 0.5 / FPC 10P-1 to DIP Adapter PCB Board Surface Mounted Devices Converter 15pcs

Key Features

• PRODUCT NAME- FR4 Glass Fiber DIY Double-Sided Surface Mounted Devices Converter PCB Board.
• MODEL - Front is FPC-10PIN-Pitch 0.5MM, Back is FPC-10PIN-Pitch 1.0MM.
• PARAMETER - 10 Pin,Pre Tinned,Board sizeapprox. 0.78 x 1 inch / 20 x 26 mm ( W x L );Thicknessapprox. 1.6mm;Hole Diameter1 mm;Hole Pitch2.54mm.
• FEATURES - The proto boards are thick and double sided. The plated holes are pre-tinned and very solid which make them very easy to solder components on.
• PACKAGE CONTENT - 15pcs x DIP Converter PCB Board

Product Description

Tips:When confirming that the number of pins is sufficient, the quick check only needs to check the following three dimensions: pin pitch, chip and pads width.Suitable for experiment, electronic designing and DIY, etc.Feature:Front side : FPC-10PIN-Pitch 0.5MMBack side : FPC-10PIN-Pitch 1.0MMParameter:Product Name : Double-Sided Pre Tinned PCB BoardMaterial : Glass Fiber FR-4Board size : approx. 0.78 x 1 inch / 20 x 26 mm ( W x L )Terminal Number : 10Thickness : approx. 1.6mmHole Diameter : 1 mmHole Pitch : 2.54mm (Through 2.54 pitch pin header ,it can be used to the DIP bread board.)Color : Green,Silver ToneNet Weight : 25g

Package content

15 pcs x DIP Converter PCB Board

Specifications
