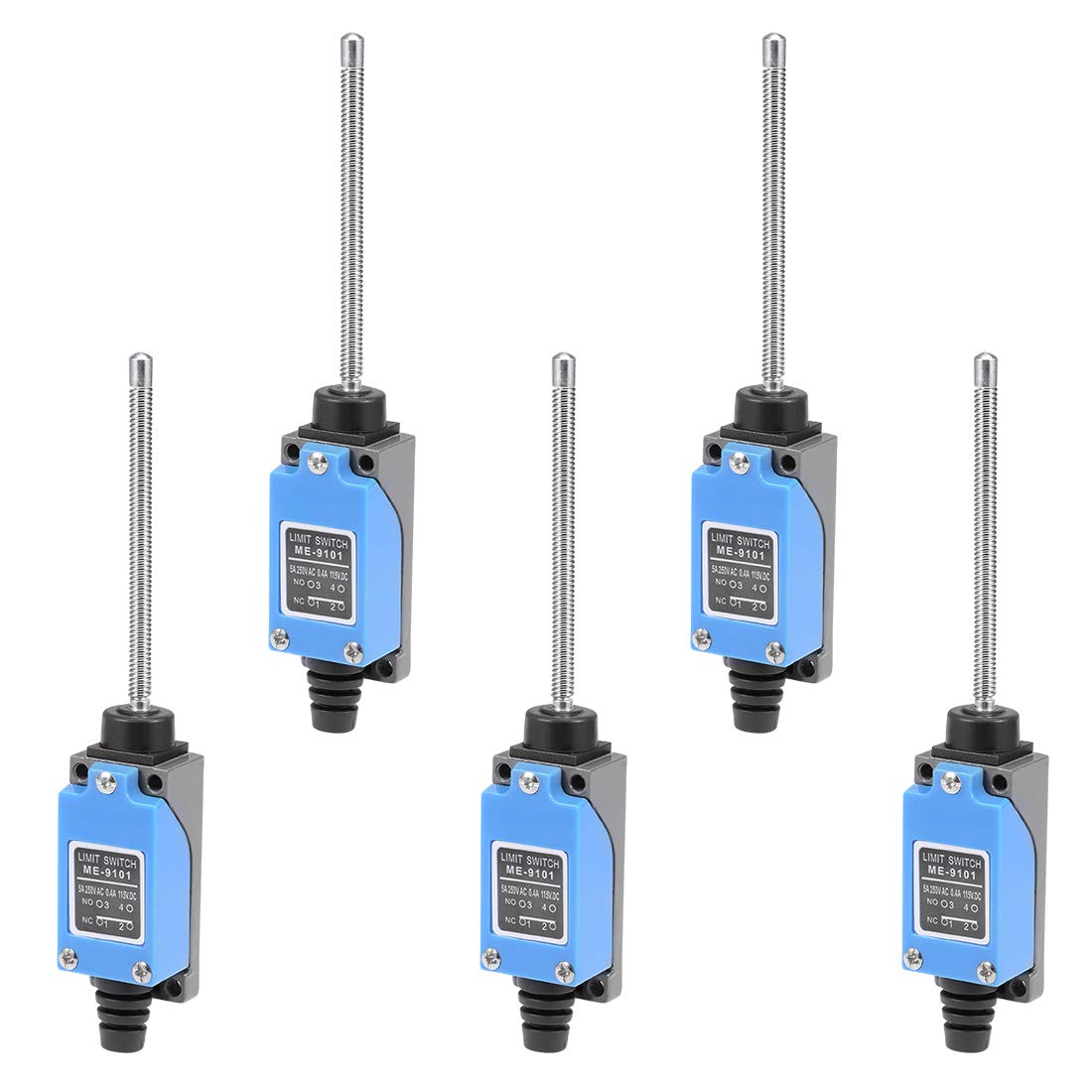

Flexible Coil Spring Rod Momentary Limit Switch ME-8167 1NC+1NO 5Pcs for CNC Mill 3D Printer Door Switch
Key Features
- Model ME-9101; Flexible Coil Spring Rod Lever
- built-in basic switch with good electrical conductivity
- Able to withstand some washdowns, shock and vibration
- Easy-to-wire, smooth operation and reliable
- Applying to printer ,3D printer,endstop,CNC router,light switch,wobble light,automatic pantry light switch,garage door,door operated switch,closet door switch,door switch.
Product Description
Specification:Product Name: Limit SwitchModel: ME-9101 (Same As ME-8167)Actuator Type: Flexible Spring Rod TypeRated Voltage: 5A 250V AC / 0.4A 115V DCContact Configuration: 1NC+1NOBody Size: 64 x 28 x 25mm (L*W*T)Mounting Hole Size: M5Mounting Hole Distance: 56 x 21mm / 2.2" x 0.83" (L*W) The coil spring can be operated in any direction except the axis direction.The use of the coil spring is for that are not uniform in size or direction. Operating Characteristics:OF max.: 1000g (9.8N)PT max.: 30mm
Description
Double circuit limit switch with build-in double reed mechanism.Zine alloy and intensive plastic shell, strong and hightly rigid construction.Smooth operation with highter OT.Brass contacts with 30% silver contained. Easy-to-wire design.This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection.
Specifications
| Item Weight | 0.34 Kilograms |
