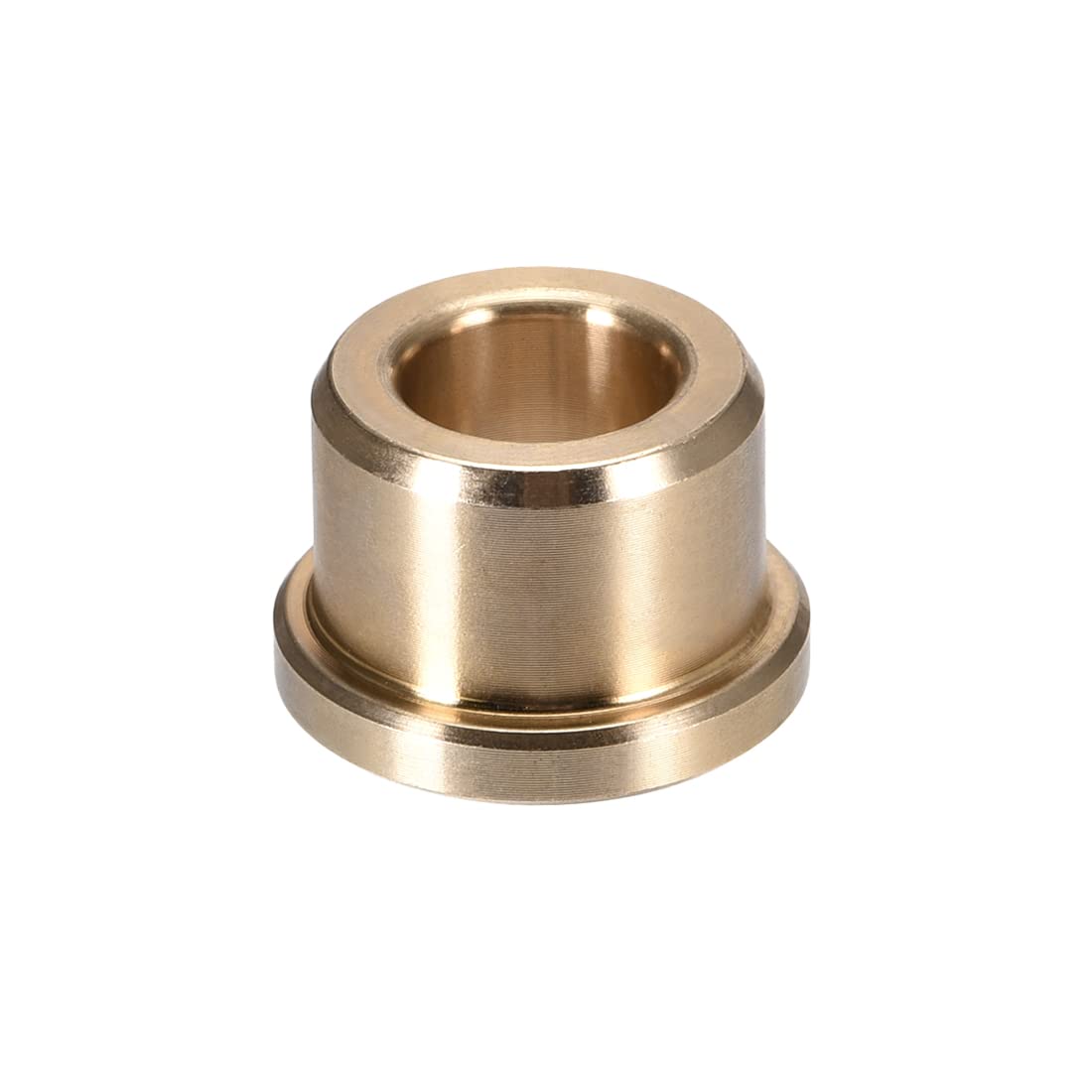

Flange Bearing Sleeve 3/8" Bore x 5/8" OD x 1/2" Length x 3/4" Flange Dia. x 1/8" Flange Thickness Sintered Bronze Bushings

Key Features

• Bore 3/8", Outside Diameter 5/8", Length 1/2", Flange Dia. 3/4", Flange Thickness 1/8"
• Lubrication-free. Suitable for high sliding operation
• Good frictional property. Maintenance-free
• Featured with good load capacity and wear resistance performance
• Wide application such as electrical equipment, household equipment, printing machinery and machine tools

Product Description

Description

Sintered plain bearings are made of powder-metallurgical tin bronze, which has a large working temperature range from -80 degree Celsius to 120 degrees Celsius.As good frictional properties as high sliding, Oiled Bearing Sleeves have a small friction coefficient of about 0.12-0.18.Sintered bronze bushings are most suitable for applications with rotating movements and where self-lubricating properties of the material are a prerequisite.Specification:Material: Tin BronzeBore Diameter: 3/8" / 9.525mmOutside Diameter: 5/8" / 15.875mmLength:1/2" / 12.7mmFlange Dia.: 3/4" / 19.05mmFlange Thickness: 1/8" / 3.175mmNumber of Item: 1 Pack

Specifications
