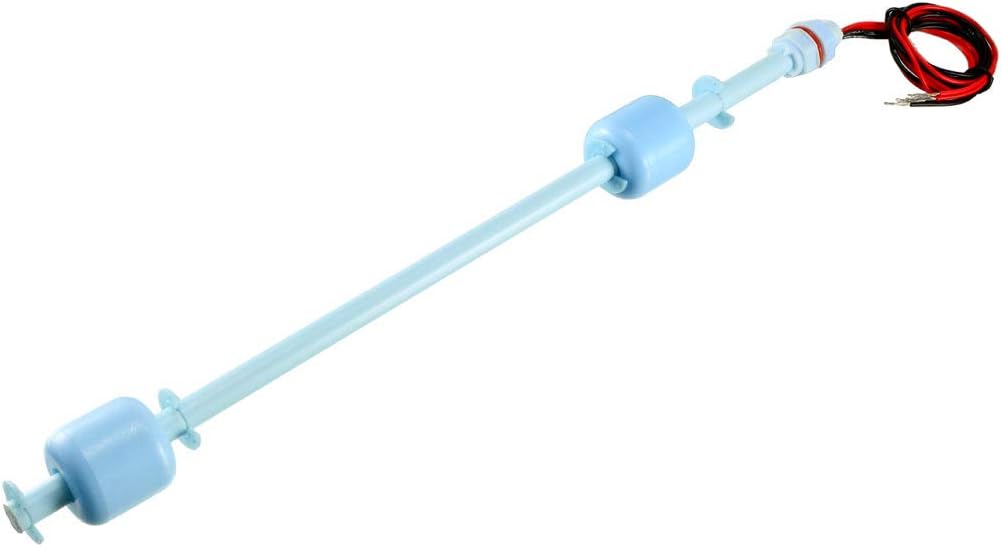

Fish Tank Liquid Water Level Sensor Vertical Float Switch 29.5cm Long

Key Features

• Product Name Water Level Sensor;Contacts NO+NC;Max Contact Rating Max Contact Rating;10W 10W;Max Switching Voltage 100V DC
• Max Switching Current 0.5A;Max Breakdown Voltage 220V DC;Max Carry Current 1.0A;Max Contact Resistance 100mohm
• Temperature Rating -10 ~ +60 C / 85 C;Float Ball Material PP;Float Body Material PP;Float Ball Size(Approx) 25 x 25mm / 1" x 1"(L*D)
• Thread Dia(Approx) 10mm / 0.4";Nut Dia(Approx) 14mm / 0.55";Bottom Clip Dia(Approx) 20mm / 0.8";Body Total Length 295mm / 11"
• Cable Length 40cm / 15.75";Color Blue;Net Weight 38g;Package Content 1 x Water Level Sensor

Product Description

About this item Product Name : Water Level Sensor;Contacts : NO+NC;Max Contact Rating : Max Contact Rating;10W : 10W;Max Switching Voltage : 100V DC Max Switching Current : 0.5A;Max Breakdown Voltage : 220V DC;Max Carry Current : 1.0A;Max Contact Resistance : 100mohm Temperature Rating : -10 ~ +60 C / 85 C;Float Ball Material : PP;Float Body Material : PP;Float Ball Size(Approx) : 25 x 25mm / 1" x 1"(L*D) Thread Dia(Approx) : 10mm / 0.4";Nut Dia(Approx) : 14mm / 0.55";Bottom Clip Dia(Approx) : 20mm / 0.8";Body Total Length : 295mm / 11" Cable Length : 40cm / 15.75";Color : Blue;Net Weight : 38g;

Package Content

1 x Water Level Sensor ›
