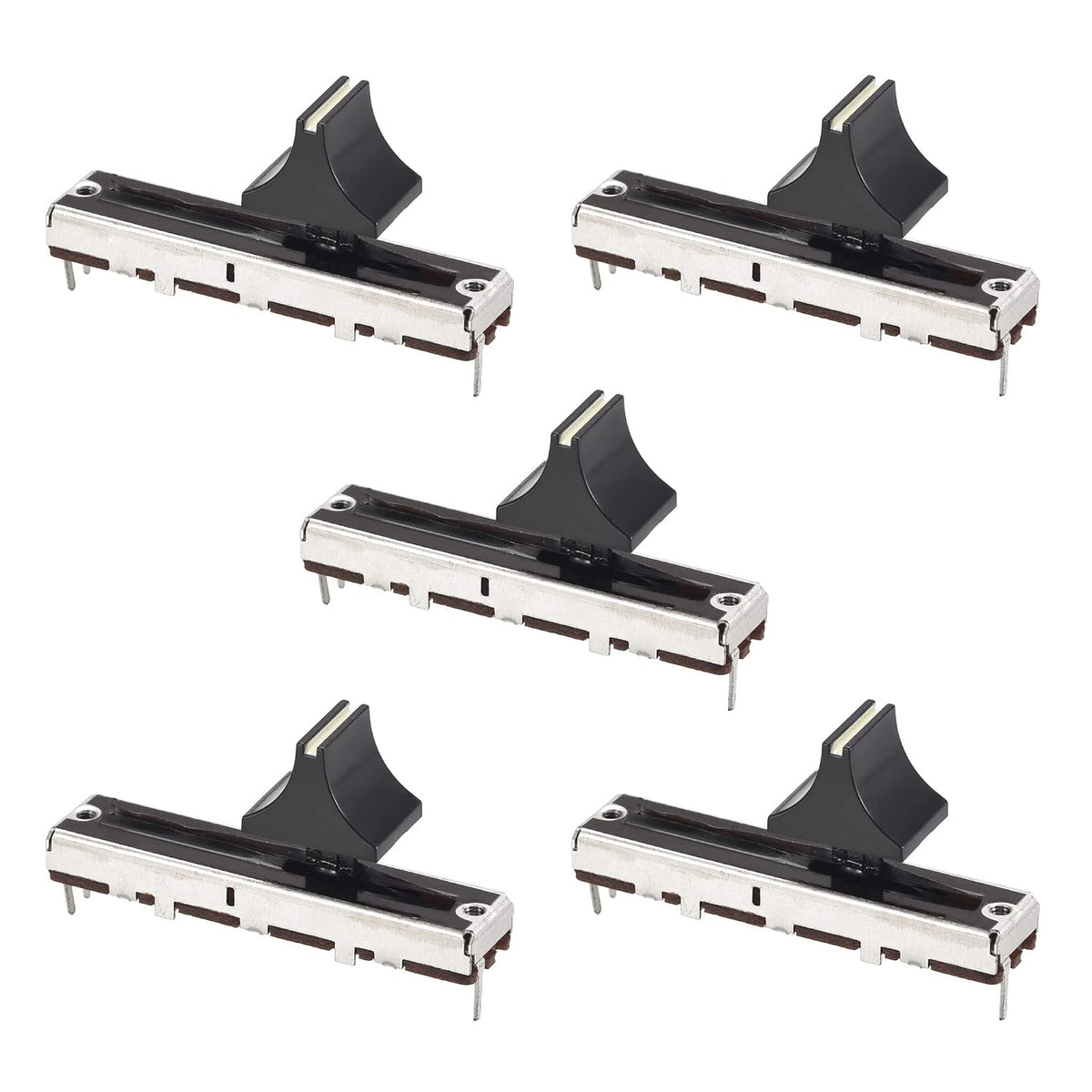

Fader Variable Resistors Mixer 45mm Straight Slide Potentiometer B10K Ohm with Black White Knobs 5pcs

Key Features

• Model B type Linear Potentiometers, Can be used in Dimming Tuning
• Body Size45mm*9.3mm*5.6mm (+/-2mm) (L*W * H)；Shaft Size 10*4mm (L* W)
• Feature Linear potentiometer, the resistance has been changing linearly during the pushing process
• Resistance Value 10K ohm, Tolerance +/-10%, Knob size 14mm*10mm*10.5mm (L*W * H)
• Suitable for mixer, electronic guitar, etc. Mainly use to adjust the volume, tone, balance and light etc.

Product Description

Description

Linear potentiometer, the resistance has been changing linearly during the pushing process

Specifications

Product Name: Potentiometer with KnobsKnobs Color: Black WhiteModel: B type Linear Potentiometers Resistance Value: 10K ohmChannel： Single ChannelTolerance: +/-10%Terminals Number: 3Body Size: 45mm*9.3mm*5.6mm (+/-2mm) (L*W * H)Shaft Size: 10*4mm (L* W)Knob size : 14mm*10mm*10.5mm (L*W * H)

Package Content

5pcs x Straight Slide Potentiometer / 5pcs x knob
