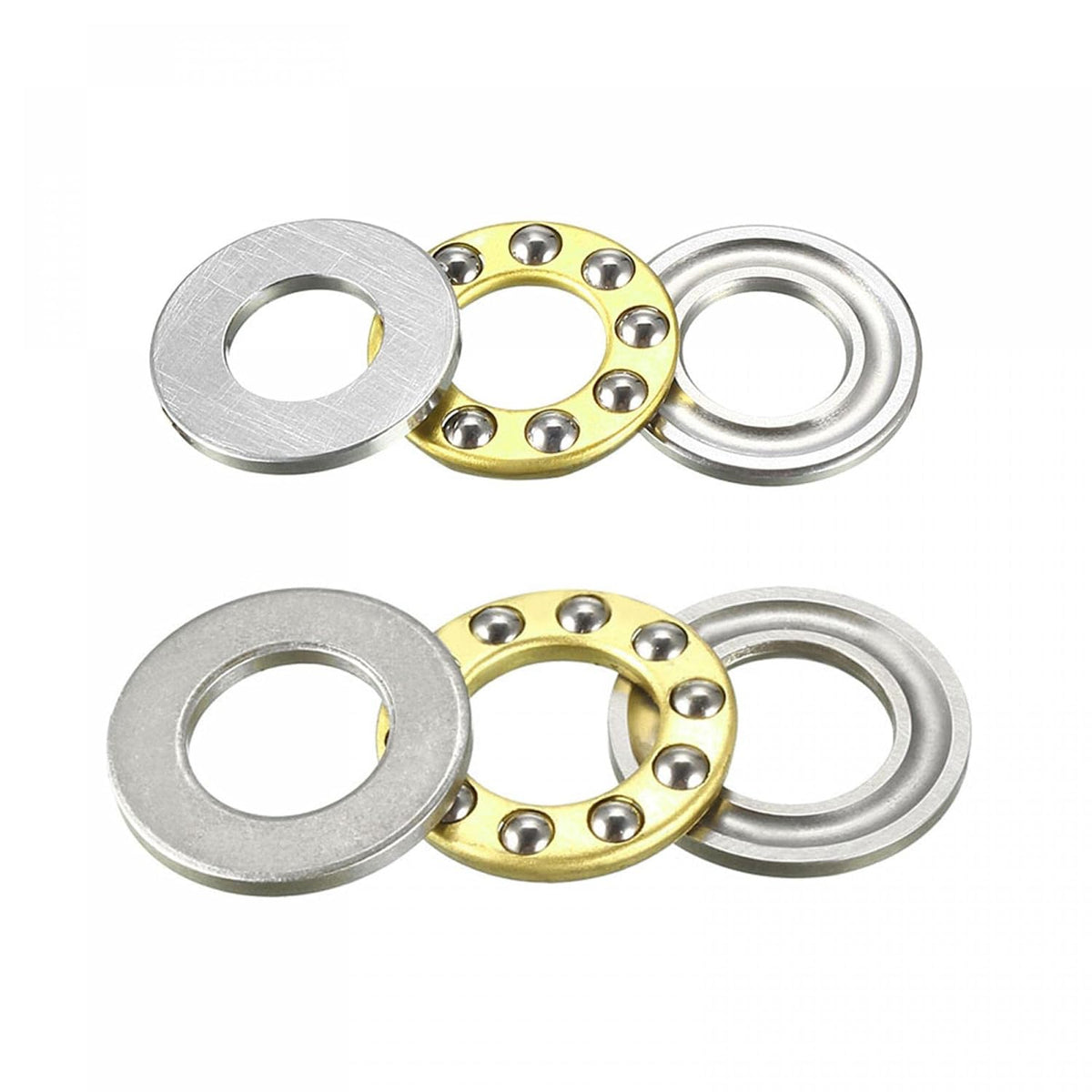

F8-16M, F10-18M Miniature Thrust Ball Bearings Chrome Steel 8pcs

Key Features

• Size - F10-18M (Bore Diameter=10mm, Outer Diameter=18mm, Thickness=5.5mm); F8-16M (Bore Diameter=8mm, Outer Diameter=16mm, Thickness=5mm)
• Material - Made of Chrome Steel(AISI 52100), have great wear-resistant, high temperature resistance and high hardness; Brass cage
• Capability - Designed for low speed operation and axial loads only
• Features - The separable components of thrust ball bearings are interchangeable. Low noise and long service life, easy to maintain. Keep the bearing working environment clean and bearing lubricated in time
• Package Content - 4pcs x F10-18M, 4pcs x F8-16M

Product Description

Description

The separable components of thrust ball bearings are interchangeable.Thrust Ball Bearings consist of a shaft washer, a housing washer and a ball and cage assembly.They are designed to accommodate axial loads and locate a shaft axially, in one direction only, and must not be subjected to any radial load.Chromium Steel (GCr15) Shaft and Housing Washer provide high and uniform hardness, good wear resistance.Specification:Model: F8-16M, F10-18MShaft/Housing Washer Material: Chromium Steel (GCr15) Bearing Ball Material: Chromium Steel (GCr15)Cage Material: Stamping SteelBore Diameter: 8mm, 10mmOuter Diameter: 16mm, 18mmThickness (B): 5mm, 5.5mmDynamic Load Rating (Cr): 2.5kN, 2.23kNStatic Load Rating (Cor): 3.0kN, 2.721kNLimiting Speed (Grease): 4000rpm, 2500rpmLimiting Speed (Oil): 8000rpm, 4500rpmAccuracy Class: P0

Package Content

4pcs x F8-16M4pcs x F10-18M
