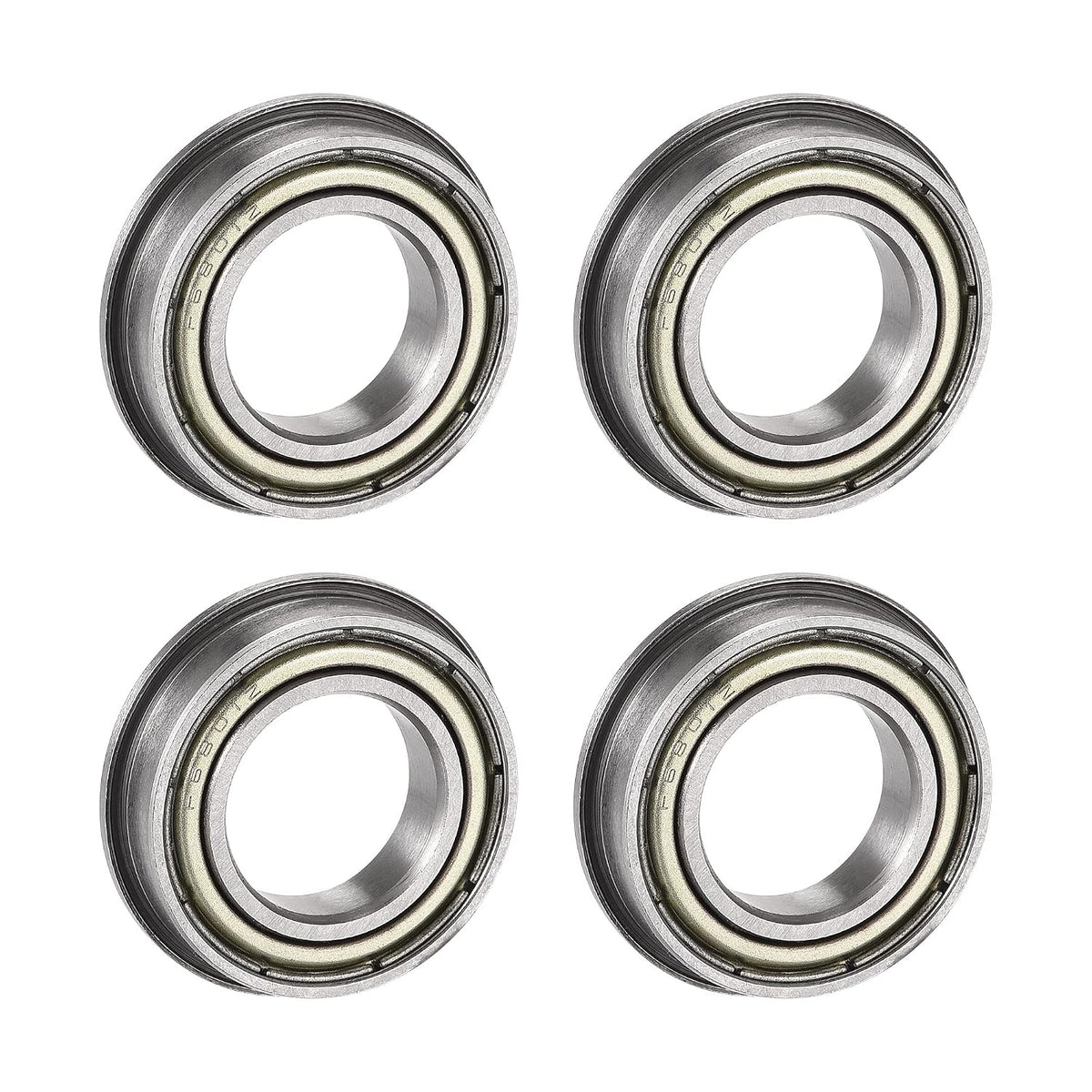

F6801-ZZ Flange Ball Bearing 12x21x5mm Double Metal Shielded (GCr15) Chrome Steel Bearings 4pcs

Key Features

• [Size] - F6801ZZ ABEC1 bearing (I.D.=12mm, O.D.=21mm, Thickness=5mm, Flange Dia 23mm).
• [Durable] - Chrome Steel (GCr15) races offer high hardness and great wear resistance, thus extend bearings' service life.
• [Easy to Maintain] - Shields on Both sides to keep lubricant in. Z1 noise level for most general use.
• [Load & Speed] - The dynamic load rating of 1.917kN and static load rating of 1.0427kN.
• [Application] - Commonly used for glider/rocker arm, wheel of the cart, lawnmower, printers, fax machines, power tools, and others.

Product Description

Note：Please refer to the picture and select the right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.

Description

Single-row, pre-lubricated, normal accuracy.Deep Groove Ball Bearings are one of the most widely used rolling bearings.With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistanceSuitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.Selection Guide:Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.Sealed (Designation Suffix RS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.Specification:Model: F6801ZZShielded Type: Double ShieldedInner Race/Outer Race Material: Chrome Steel (GCr15)Cage Material: Stamping SteelInner Diameter (d): 12mmOuter Diameter (D): 21mmThickness (B): 5mmFlange Dia.: 23mmFlange Thickness: 1.1mmDynamic Load Rating (Cr): 1.917kNStatic Load Rating (Cor): 1.042kNAccuracy Class: P0 (ABEC1)
