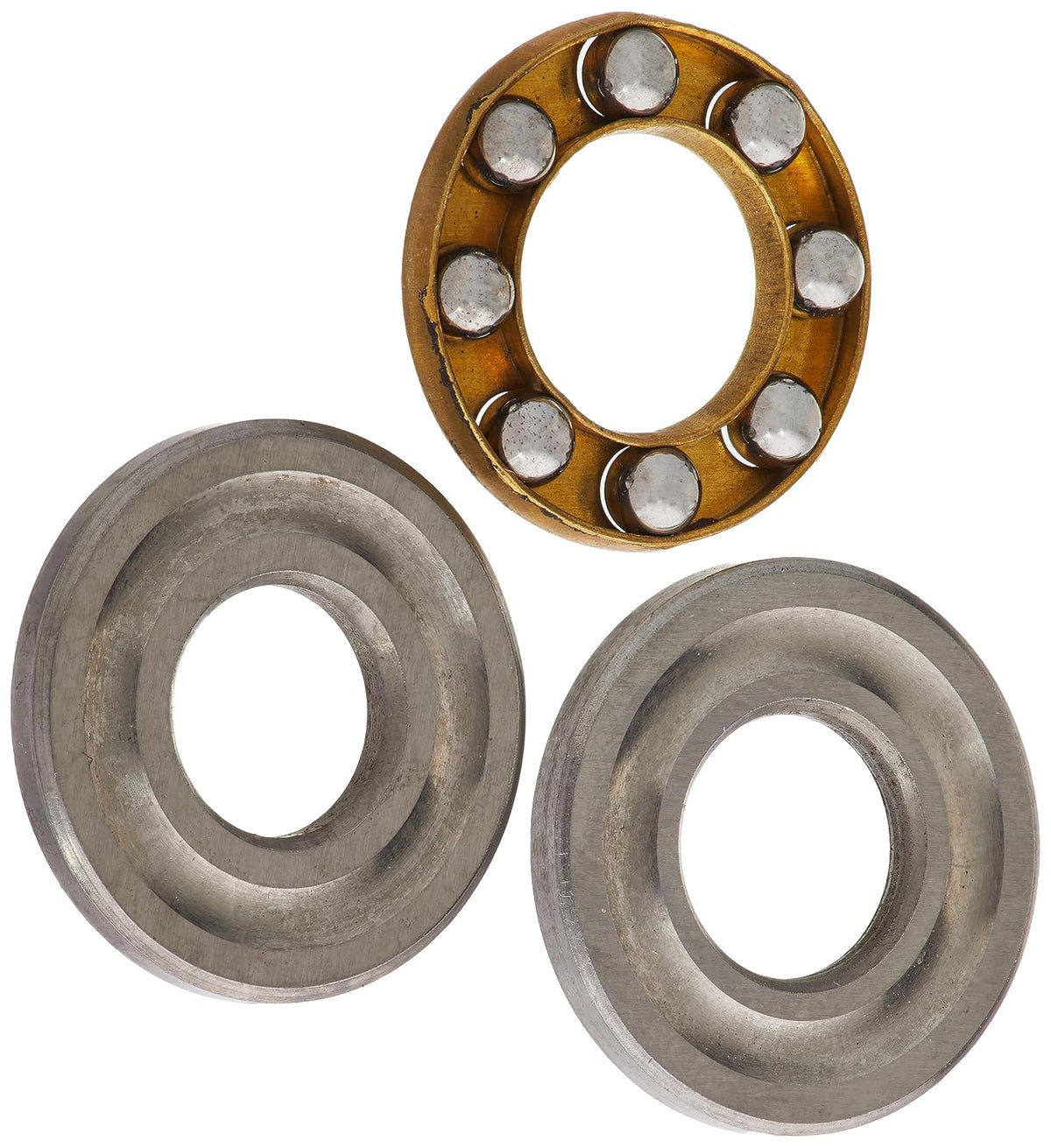

F6-14 Miniature Thrust Ball Bearings 6x14x4.5mm Chrome Steel with Washers

Key Features

• [SIZE] - Bore Diameter=6mm, Outer Diameter=14mm, Thickness=4.5mm
• [MATERIAL] - Made of Chrome Steel(AISI 52100), have great wear-resistant, high temperature resistance and high hardness; Brass cage
• [CAPABILITY] - Dynamic Load Rating (Cr) 1.9kN; Static Load Rating (Cor) 1.96kN; Limiting Speed (Grease) 4000rpm, designed for low speed operation and axial loads only
• [APPLICATION] - Can be used for oven turntable, jack, pump, rotating applications, machine tools, automobiles, ect.
• [FEATURES] - The separable components of thrust ball bearings are interchangeable. Low noise and long service life, easy to maintain. Keep the bearing working environment clean and bearing lubricated in time

Product Description

Description

The separable components of thrust ball bearings are interchangeable. This facilitates mounting and dismounting, and maintenance inspections.Thrust Ball Bearings are consisted of a shaft washer, a housing washer and a ball and cage assembly.They are designed to accommodate axial loads and locate a shaft axially, in one direction only, and must not be subjected to any radial load.Chromium Steel (GCr15) Shaft and Housing Washer provide high and uniform hardness, good wear resistance.Specification:Model: F6-14Shaft/Housing Washer Material: Chromium Steel (GCr15) Bearing Ball Meterial: Chromium Steel (GCr15)Cage Material: Stamping SteelInner Diameter (d): 6mmOutside Diameter (OD): 14mmThickness (B): 5mmDynamic Load Rating (Cr): 1.6kNStatic Load Rating (Cor): 1.255kNLimiting Speed (Grease): 5000rpmLimiting Speed (Oil): 7000rpmAccuracy Class: P0Number of Pack: 1 Pcs
