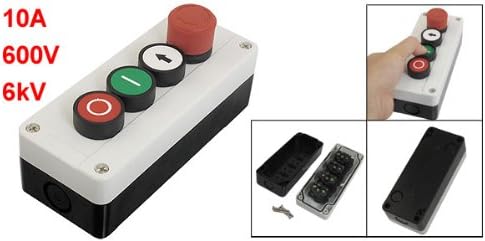

Emergency Stop Momentary NC Red NO White Green Push Button Switch Station

Key Features

• Product Name Push Button Switch Station;Material Plastic, Metal;Action Type Red Emergency Stop Button Latching,Black, Red and Green Push Button Momentary
• Contact Type Red Emergency Stop Button 1 NC,White Push Button 1NO,Green Push Button 1NO,Red Push Button 1NC;Ith 10A;Ui 600V
• AC-15 240V 3A;Uimp 6kV;Terminal Number 8
• Mounting Hole Diameter 8mm / 5/16";Hole Distance(center to center) 147 x 51mm / 5.8" x 2"(L*W);Total Size (Approx.) 162 x 65 x 75m / 6.4" x 2.6" x 3" (L*W*T)
• Button Color Red, White, Green;Weight 277g;Package Content 1 x Push Button Switch Station

Product Description

The push button switch station consists of four separate switches, the first is a red emergency stop push button switch, the second is a NC momentary red push button switch, the third is a 1 NO momentary white push button switch and the fourth is a 1 NO momentary green push button switch. Can be widely used to control the electromagnetic , contactor, relay and other automatic control electric circuits. Comes with quick connect terminals to allow for fast connections.

Specifications
