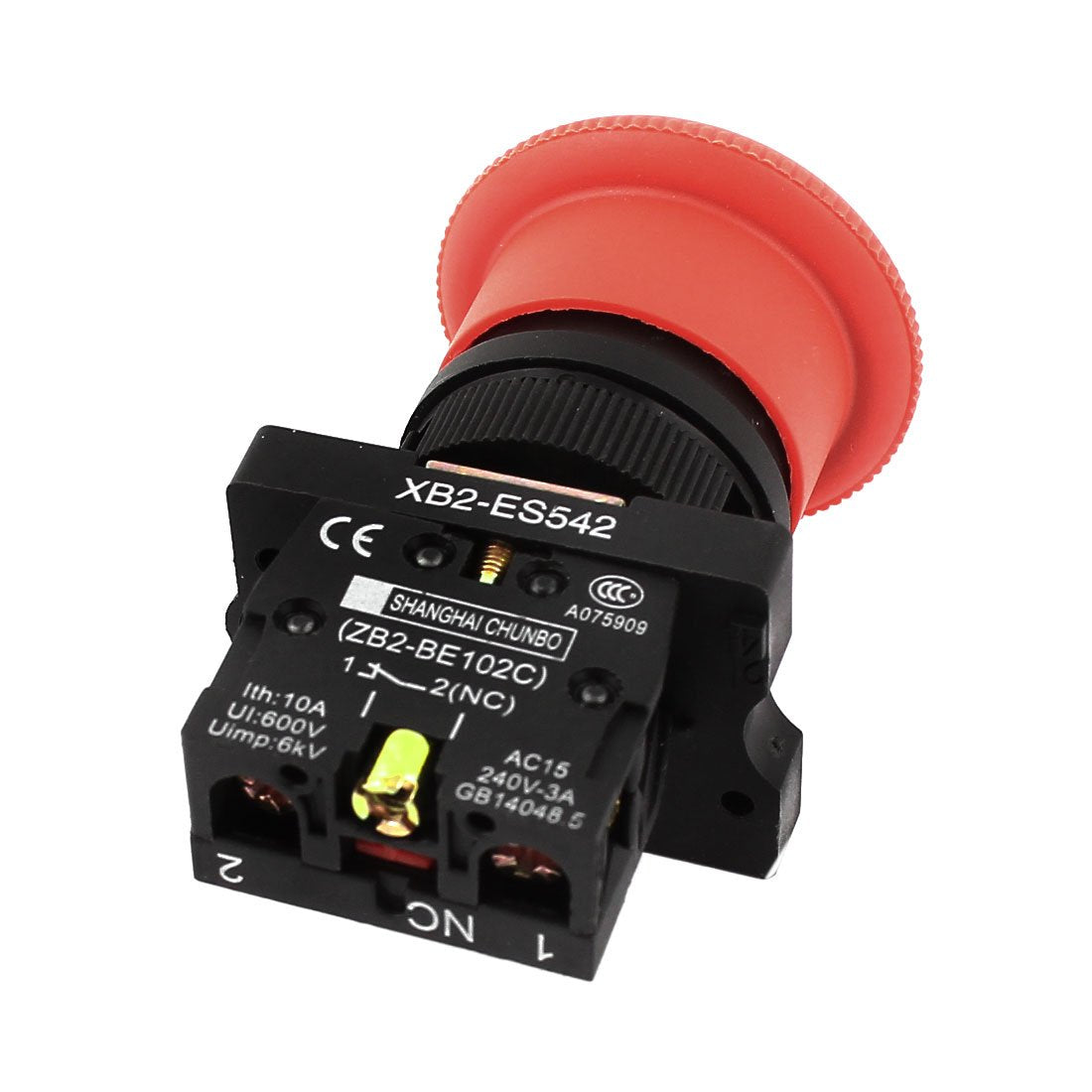

Emergency Stop 22mm Latching SPST NC 2 Pin Mushroom Push Button Switch

Emergency Stop 22mm Latching SPST NC 2 Pin Mushroom Push Button Switch

Brand: LinkMejor

★★★★☆ 126 ratings | 6 answered questions

$9.99

✓ Secure transaction

🚚 Free delivery available

🔄 30-day returns

📦 Ships from linkmejor.com

Key Features

Item Name Push Button Switch; Material Plastic, Metal;Terminals 2; Mounting Thread Dia 22mm
Ui 600V; Ith 10A; impulse voltage 6KV
Contact Type SPST NC; Action Latching
The shell is made of flame-retardant PC material, anti-corrosion and waterproof; The contact is made of silver tin oxide with strong conductivity. The bottom is made of flame-retardant substrate with high temperature resistance
Used widely to control the equipment, contactor, relay and other automatic control electric circuits.

Product Description

About this item Item Name: Push Button Switch; Material: Plastic, Metal;Terminals: 2; Mounting Thread Dia: 22mm Ui: 600V; Ith: 10A; impulse voltage: 6KV Contact Type: SPST NC; Action: Latching The shell is made of flame-retardant PC material, anti-corrosion and waterproof; The contact is made of silver tin oxide with strong conductivity. The bottom is made of flame-retardant substrate with high temperature resistance Used widely to control the equipment, contactor, relay and other automatic control electric circuits. ›
