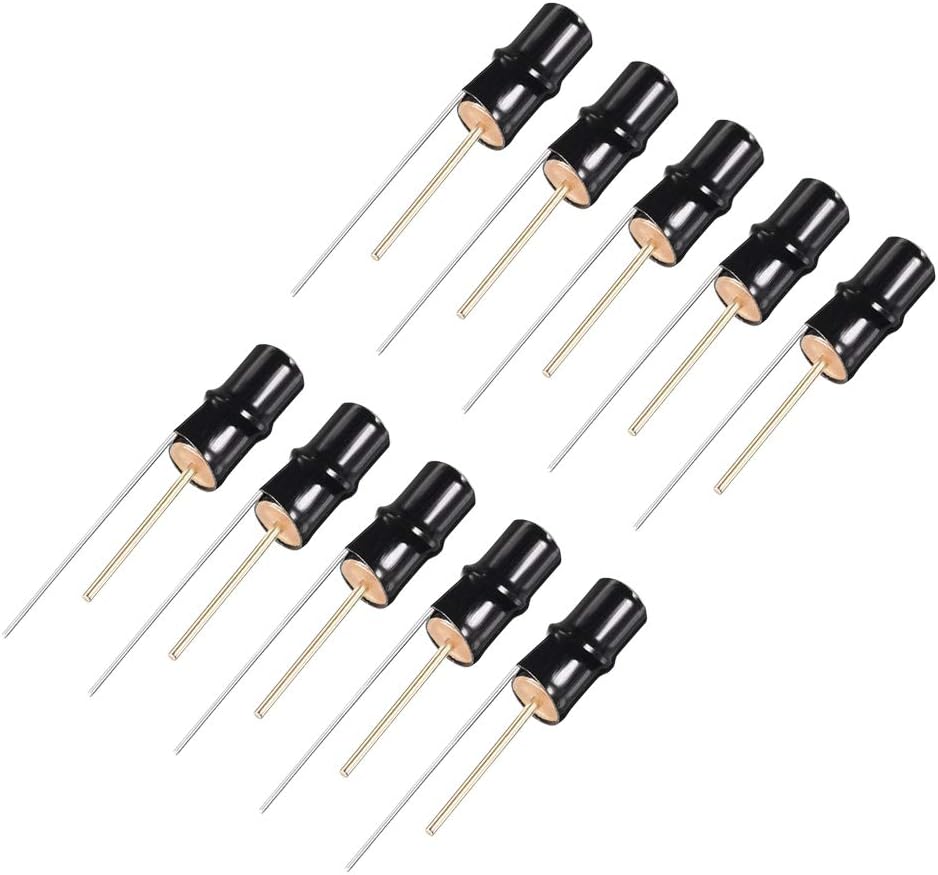

Electronic Vibration Sensor SW-200DA Ball-Rolling Shake Switch 12V 20mA 10Pcs

Electronic Vibration Sensor SW-200DA Ball-Rolling Shake Switch 12V 20mA 10Pcs

Brand: LinkMejor

★★★★☆ 102 ratings | 32 answered questions

$7.39

✓ Secure transaction

🚚 Free delivery available

🔄 30-day returns

📦 Ships from linkmejor.com

Key Features

Model Number SW-200DA; Max.Voltage 12V; Rated Thermal Current 20mA
Insulation Resistance 10M ohm; Conduction Time 2MS; Max.Temperature Resisting 120℃
【CHARACTERISTICS】The SW-200DA is a ball type one-way tilt induction trigger switch. Under normal conditions, the switch life can achieve 100,000 times.
【ADVANTAGE】This product is made of metal and has stable performance. The appearance is sealed with heat-shrinkable tube to protect against dust and moisture.
【APPLICATION】This switch is suitable for touching off the small current circuit not suitable for acting as the mains switching. Applied to the eletronic , small household appliance, sports equipmens and anti-theft devices.

Product Description

Description

1.The SW-200DA is a ball type one-way tilt induction trigger switch. Under normal conditions, the switch life can achieve 100,000 times.2.This product is made of metal and has stable performance.The appearance is sealed with heat-shrinkable tube to protect against dust and moisture.3.This switch is suitable for touching off the small current circuit not suitable for acting as the mains switching. Applied to the eletronic , small household appliance, sports equipmens and anti-theft devices. Working Characteristics: When the product is tilted toward the conductive end (Footless end) and the tilt angle is greater than 10 degrees, the product is in an open (OFF) state; When the trigger end (gold-plated lead end) is lower than the horizontal and the tilt angle is greater than 10 degrees, the product is in the closed state (ON).When placed horizontally, the shaking can be easily triggered; when the foot is not down, the shaking is not easy to trigger. Specification:Product Name: Vibration SwitchModel Number: SW-200DAConduction Time: 2MSMax.Voltage: 12VRated Thermal Current: 20mAInsulation Resistance: 10M ohmMax.Temperature Resisting: 120℃Pin Size: 10mm x 0.6mm(L*D)Body Dimension: 9mm x 4.5mm(L*D)
