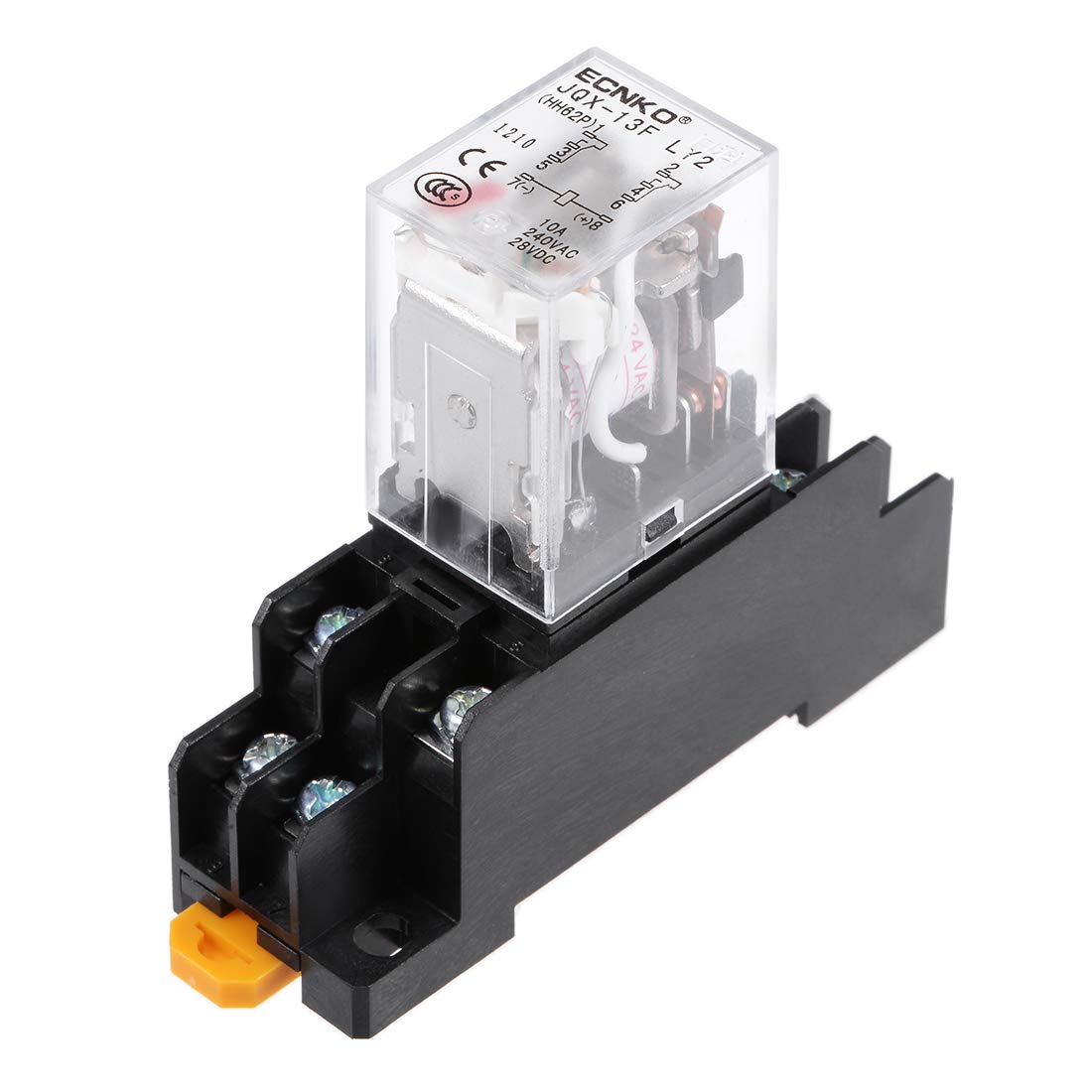

Electromagnetic Power Relay, JQX-13F AC24V Coil DPDT 8Pins Red Light Electromagnetic Power Relay + Socket

Key Features

• Model JQX-13F; Coil Voltage AC24V LED Color Red; Number of Terminals 8
• 1.Alloy contact, good electrical conductivity, increased contact stability and sensitivity, oxidation resistance, high current carrying capacity, long service life 2. Copper coil, high purity, stable operation, dense and numerous coil copper wires, able to withstand higher voltages 3. Used with a ABS base, stable and durable, high temperature resistant.
• Contact Capacity 10A AC 240V/10A DC 28V
• Type DPDT (2NO 2NC ) ; Mount Rail Type 35mm DIN Rail
• Package Content 1 x Electromagnetic Relay + socket

Product Description

Specifications

Net Weight: 63gModel: JQX-13FCoil Voltage: AC24VLED Color: RedNumber of Terminals: 8Contact Capacity: 10A AC 240V/10A DC 28VType: DPDT (2NO 2NC )Mount Rail Type : 35mm DIN Railsocket Size: 36 x 22mm/1.42" x 0.87" (L*W)Total Size (Approx.): 77 x 22 x 64mm/3.04" x 0.87" x 2.52" (L*W*H)

Package Content

1 x Electromagnetic Relay + socketMain Color: Black, ClearMaterial: Plastic & Electric Parts

Descriptions

Product Name: Electromagnetic RelayCan adjust automatically, protect and transform the electric circuit.Used widely in the remote control, communication, automatic control system, electronic equipments, etc.
