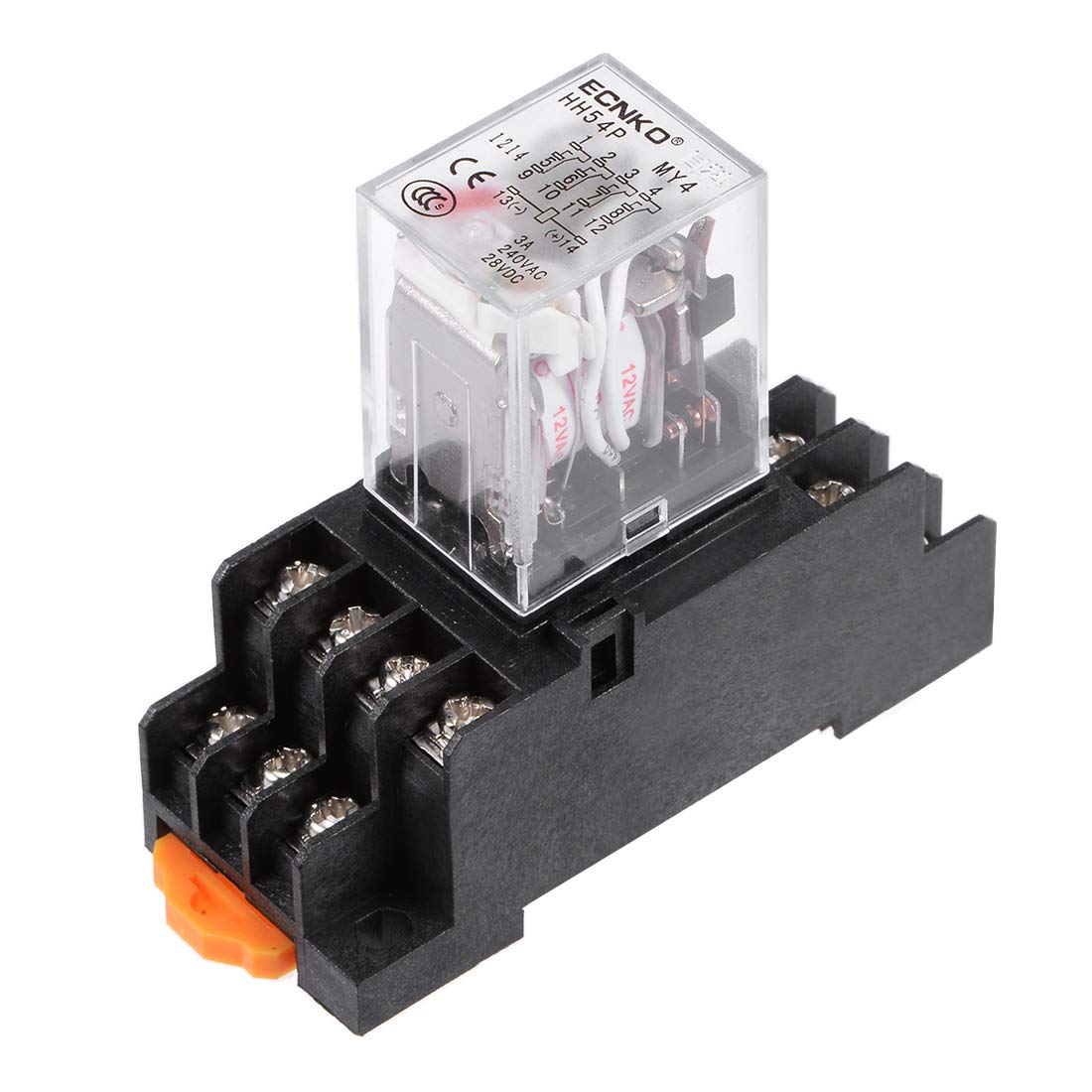

Electromagnetic Power Relay, HH54P AC 12V Coil DPDT 14 Pins Red Light Electromagnetic Power Relay + Socket

Key Features

• Model HH54P; Coil Voltage AC 12V LED Color Red ； Number of Terminals 14
• 1.Alloy contact, good electrical conductivity, increased contact stability and sensitivity, oxidation resistance, high current carrying capacity, long service life 2. Copper coil, high purity, stable operation, dense and numerous coil copper wires, able to withstand higher voltages 3. Used with a ABS base, stable and durable, high temperature resistant.
• Contact Capacity 3A 240V AC / 3A 28V DC
• Type DPDT (4NO 4NC ) ； Mount Rail Type 35mm DIN Rail
• Package Content 1 x Electromagnetic Relay + socket

Product Description

Specifications

Net Weight: 80gModel: HH54PCoil Voltage: AC 12VLED Color: RedNumber of Terminals: 14Contact Capacity: 3A 240V AC / 3A 28V DCType: DPDT (4NO 4NC )Mount Rail Type : 35mm DIN Railsocket Size: 36 x 30mm/1.42" x 1.18" (L*W)Total Size (Approx.): 76 x 30 x 65mm/3.0" x 1.18" x 2.56" (L*W*H)

Package Content

1 x Electromagnetic Relay + socketMain Color: Black, ClearMaterial: Plastic & Electric Parts

Descriptions

Product Name: Electromagnetic RelayCan adjust automatically, protect and transform the electric circuit.Used widely in the remote control, communication, automatic control system, electronic equipments, etc.
