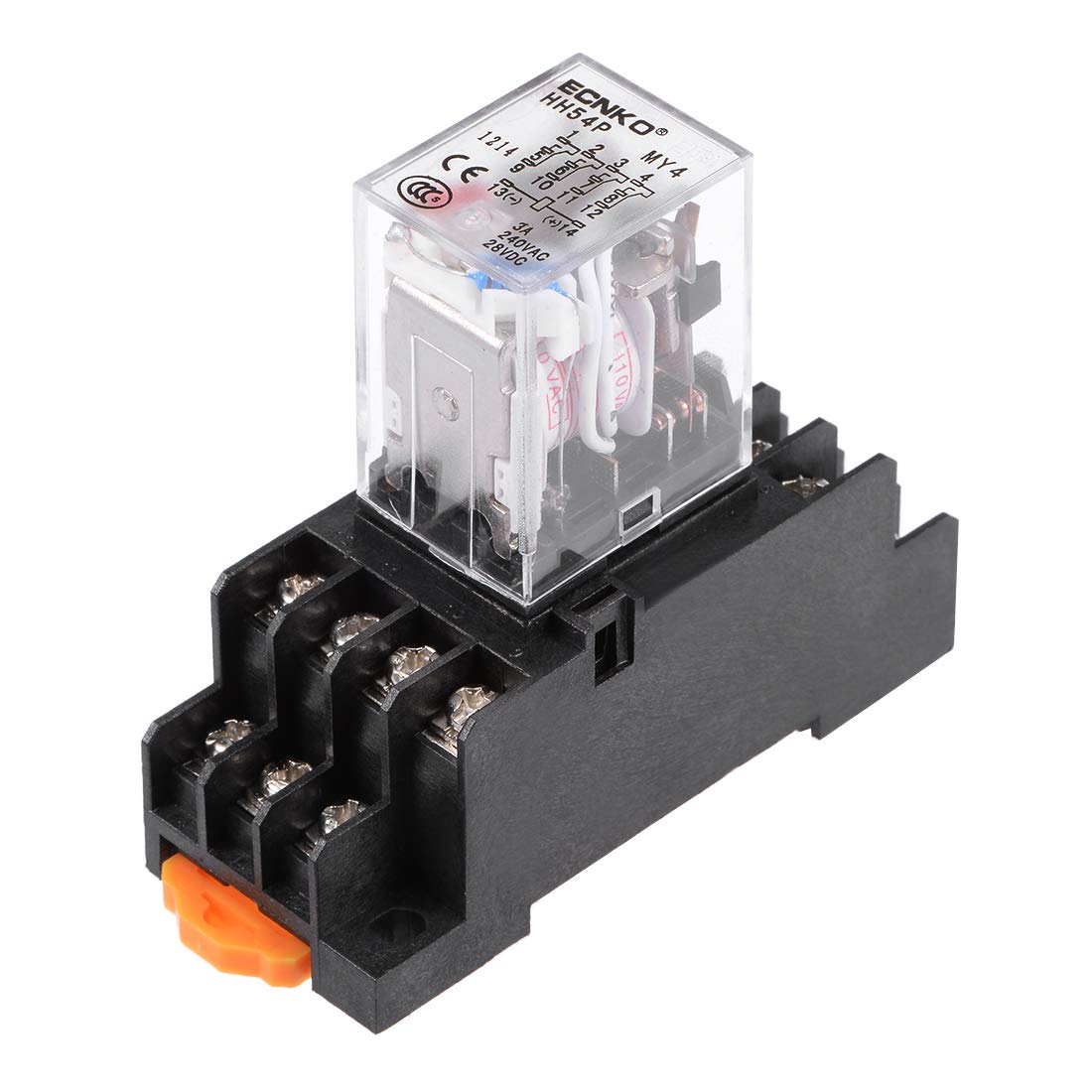

Electromagnetic Power Relay, HH54P AC 110V Coil 4P4T 14 Pins Electromagnetic Power Relay Red LED with Socket

Key Features

• Product Name Electromagnetic Relay; Model HH54P; Coil Voltage AC 110V Contact Capacity 3A 240V AC / 3A 28V DC ; Type 4P4T (4NO 4NC )
• 1.Alloy contact, good electrical conductivity, increased contact stability and sensitivity, oxidation resistance, high current carrying capacity, long service life 2. Copper coil, high purity, stable operation, dense and numerous coil copper wires, able to withstand higher voltages 3. Used with a ABS base, stable and durable, high temperature resistant.
• Number of Terminals 14; Mount Rail Type 35mm DIN Rail; socket Size 35.8 x 29.5mm/1.41" x 1.16"(L*W)
• Total Size (Approx.) 75.2 x 29.5 x 65.3mm/2.96" x 1.16" x 2.57"(L*W*H);LED ColorRed ;Main ColorBlack, Clear
• Net Weight 80g; Package Content 1 x Electromagnetic Relay with socket

Product Description

Descriptions

14 Terminals, 4P4T 4NO 4NC type, plastic housing, built in red indicator light.Can adjust automatically, protect and transform the electric circuit.Used widely in the remote control, communication, automatic control system, electronic equipments, etc.

Specifications

Product Name:Electromagnetic RelayModel:HH54PType: 4P4T (4NO 4NC )Coil Voltage: AC 110VContact Capacity: 3A 240V AC / 3A 28V DCMount Rail Type : 35mm DIN RailNumber of Terminals: 14socket Size: 35.8 x 29.5mm/1.41" x 1.16"(L*W)Total Size (Approx.) : 75.2 x 29.5 x 65.3mm/2.96" x 1.16" x 2.57"(L*W*H)LED Color:RedMain Color:Black, ClearMaterial:Plastic & Electric PartsNet Weight: 80g

Package Content

1 x Electromagnetic Relay with socket
