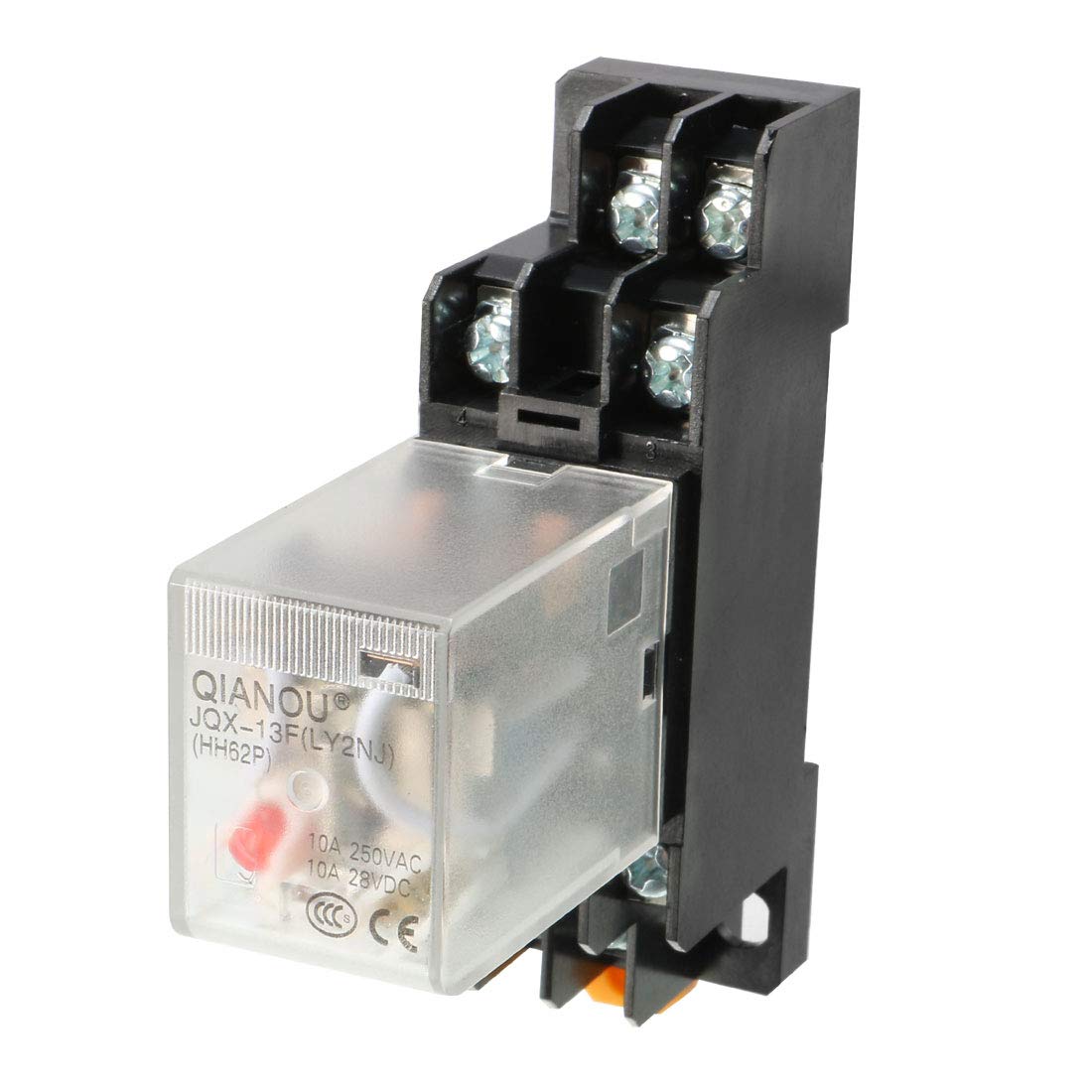

Electromagnetic Power Relay, AC 24V Coil Red Indicator Light 8 Pin DPDT Electromagnetic General Purpose Power Relay + Socket Base JQX-13F

Key Features

• Product NameElectromagnetic Power Relay ; ModelJQX-13F Type DPDT;Number of Terminals 8
• 1.Alloy contact, good electrical conductivity, increased contact stability and sensitivity, oxidation resistance, high current carrying capacity, long service life 2. Copper coil, high purity, stable operation, dense and numerous coil copper wires, able to withstand higher voltages 3. Used with a ABS base, stable and durable, high temperature resistant.
• Coil VoltageAC 24V; Contact Capacity10A 250VAC/10A 28VDC;
• Mounting Rail Width 35mm; Installing Hole Size 6 x 4mm / 0.24 x 0.16inch (L*W); Installing Hole Center Distance 59 x 15mm / 2.32 x 0.59inch(L*W);
• Used widely in the remote control, communication, automatic control system, electronic equipments, etc.

Product Description

Descriptions

8pins, DPDT type.Can adjust automatically, protect and transform the electric circuit.Used widely in the remote control, communication, automatic control system, electronic equipments, etc.

Specifications

Product Name:Electromagnetic Power Relay;Model:JQX-13F;Coil Voltage:AC 24V;Contact Capacity:10A 250VAC/10A 28VDC;Number of Pins:8;Mounting Rail Width: 35mm;Installing Hole Size: 6 x 4mm / 0.24 x 0.16inch (L*W);Installing Hole Center Distance: 59 x 15mm / 2.32 x 0.59inch(L*W);Body Size (Approx.):77 x 22 x 66mm/3.03 x 0.87 x 2.6inch(L*W*H);Color:White,Black

Package Content

1 power Relays
