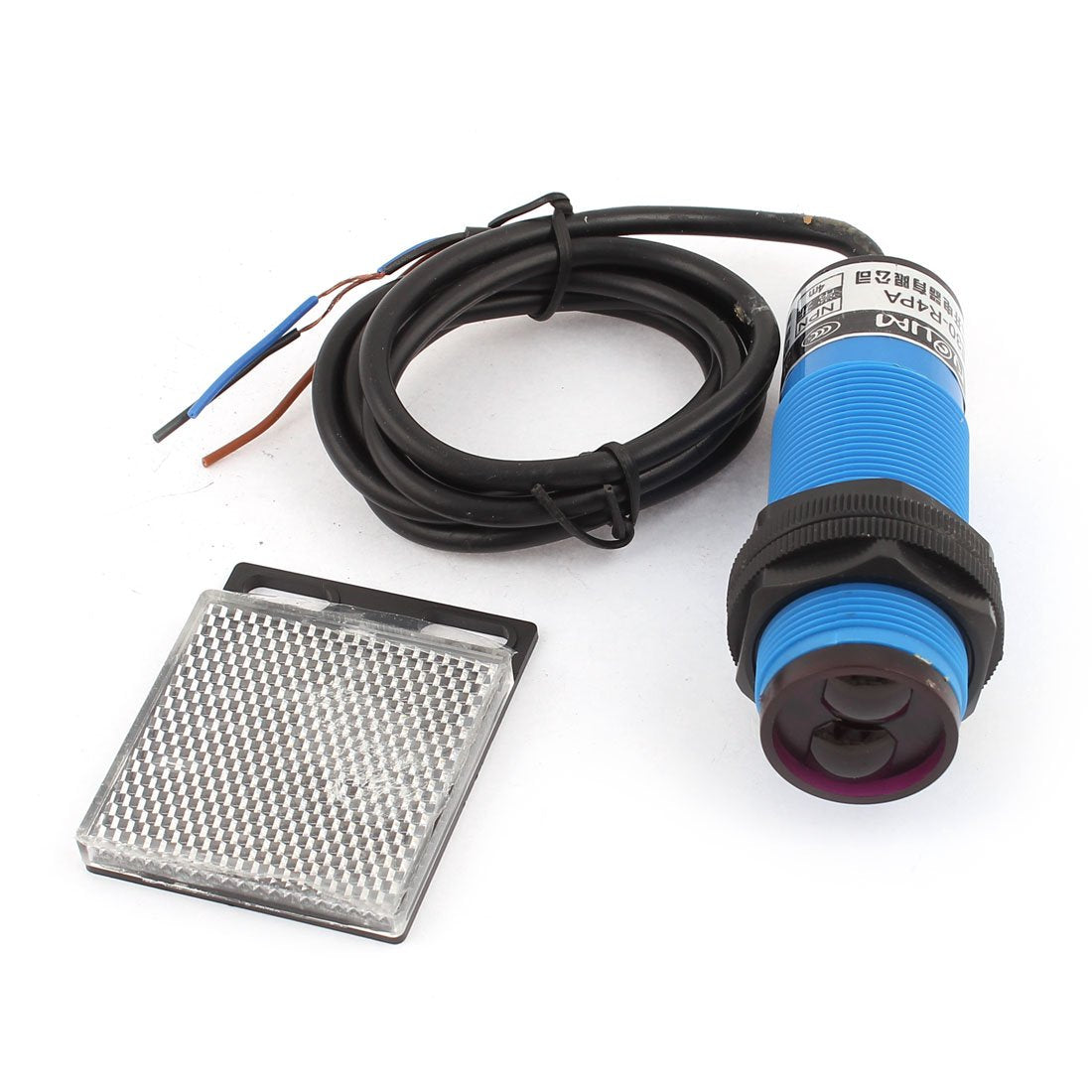

E30-R4PA PNP NO 3-Wires 1-4m Sensor Photoelectric Switch DC 10-36V

Key Features

• Product Name Photoelectric Switch w Reflector;Sending Light Infrared Rays;Model E30-R4PA;Detection Way Retroreflective Type
• Output Type PNP NO 3 Wires;Working Voltage 10-36VDC;Output Current 300mA;Sensory Distance 1-4m
• Detected object Type Non-Transparent;Head Dia. 29mm / 1.1";Mounting Thread Dia. 30mm / 1.2";Body Size(Approx) 9.1 x 3.9cm / 3.6" x 1.6" (L*D Max)
• Cable Length(Approx) 1.25m / 49";Reflector Size 6.5 x 4 x 0.8cm / 2.6" x 1.6" x 0.3"(L*W*T);External Material Plastic ABS
• Main Color Blue, Black;Weight 110g;Package Content 1 x Photoelectric Switch w Reflector

Product Description

Features

; retroreflective type photoelectric switch, 6-36VDC; working voltage, 1-4m sensory distance. A retroreflective arrangement places the transmitter and receiver at the same location and uses a reflector to bounce the light beam back from the transmitter to the receiver. An object is sensed when the beam is interrupted and fails to reach the receiver. Used extensively in industrial manufacturing.

Specifications
