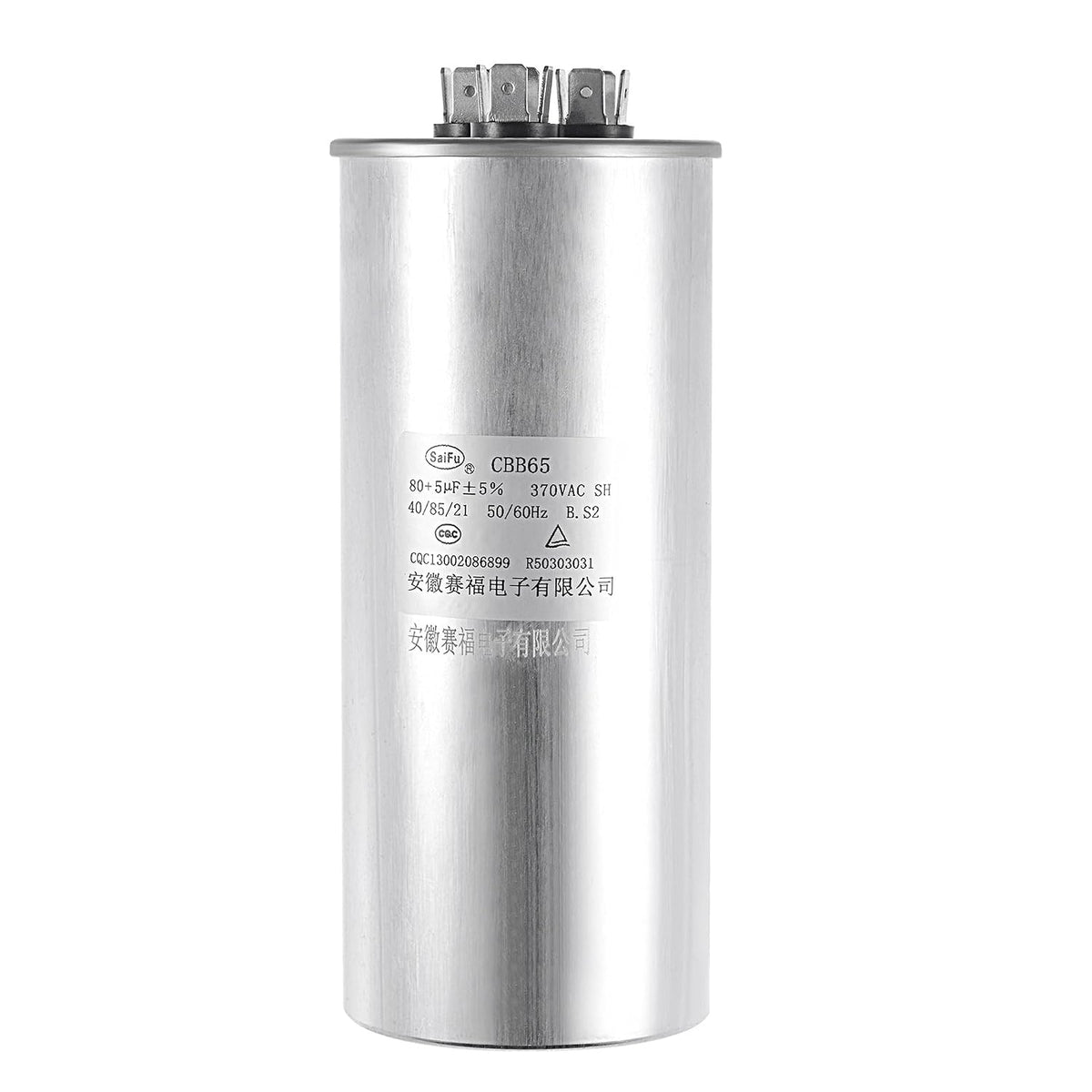

Dual Run Capacitor Round CBB65 80/5uF MFD 370V AC 40/85/21 Aluminum Case for Air Conditioner Compressor Motor Heat Pump Condenser

Key Features

• [Specification] - Rated Capacity 80+5uF; Tolerance ±5%; Rated Voltage 370V AC; Body Size 150x63mm / 5.9x2.5inch(H*D); Rated Frequency 50/60Hz; Climatic Category 40/85/21
• [Characteristic] - This CBB65 dual run capacitor has characteristics of low loss, heat resistance, anti-overvoltage shock, excellent electrical performance and long service life
• [Terminals] - There are 3 terminals (HERM/ FAN/C) on the top of the dual run capacitor, 4 pins per terminal. "HERM" for the air compressor, "FAN" for the fan, "C" for the common line
• [Application] - The dual run start capacitor is widely used for air conditioners, air compressors, motors, refrigerators, heat pump condenser, HVAC, generators, illuminating lamps, fans, etc
• [Note] - If the capacitor of your motor and air compressor is burnt out or weak, you need to replace it with a new one

Product Description

Features

This CBB65 dual run capacitor has characteristics of low loss, heat resistance, anti-overvoltage shock, excellent electrical performance and long service life.There are 3 terminals (HERM/ FAN/C) on the top of the dual run capacitor, 4 pins per terminal. "HERM" for the air compressor, "FAN" for the fan, "C" for the common line.This run capacitor is applied to starting and working of a single-phase motor in a 50Hz/60Hz AC electric power system.The CBB65 capacitor is widely used for air conditioners, air compressors, motors, refrigerators, heat pump condensers, HVAC, generators, illuminating lamps, fans, etc.

Note

If the capacitor of your motor and air compressor is burnt out or weak, you need to replace it with a new one.

Specifications

Model: CBB65Material: Metallized Polypropylene, Aluminum CaseLead End: 4+4+4 TerminalRated Capacity: 80+5uFTolerance: ±5%Rated Voltage: 370V ACRated Frequency: 50/60HzClimatic Category: 40/85/21Body Size: 150x63mm / 5.9x2.5 inch (H*D)

Package Includes

1 x CBB65 Capacitor
