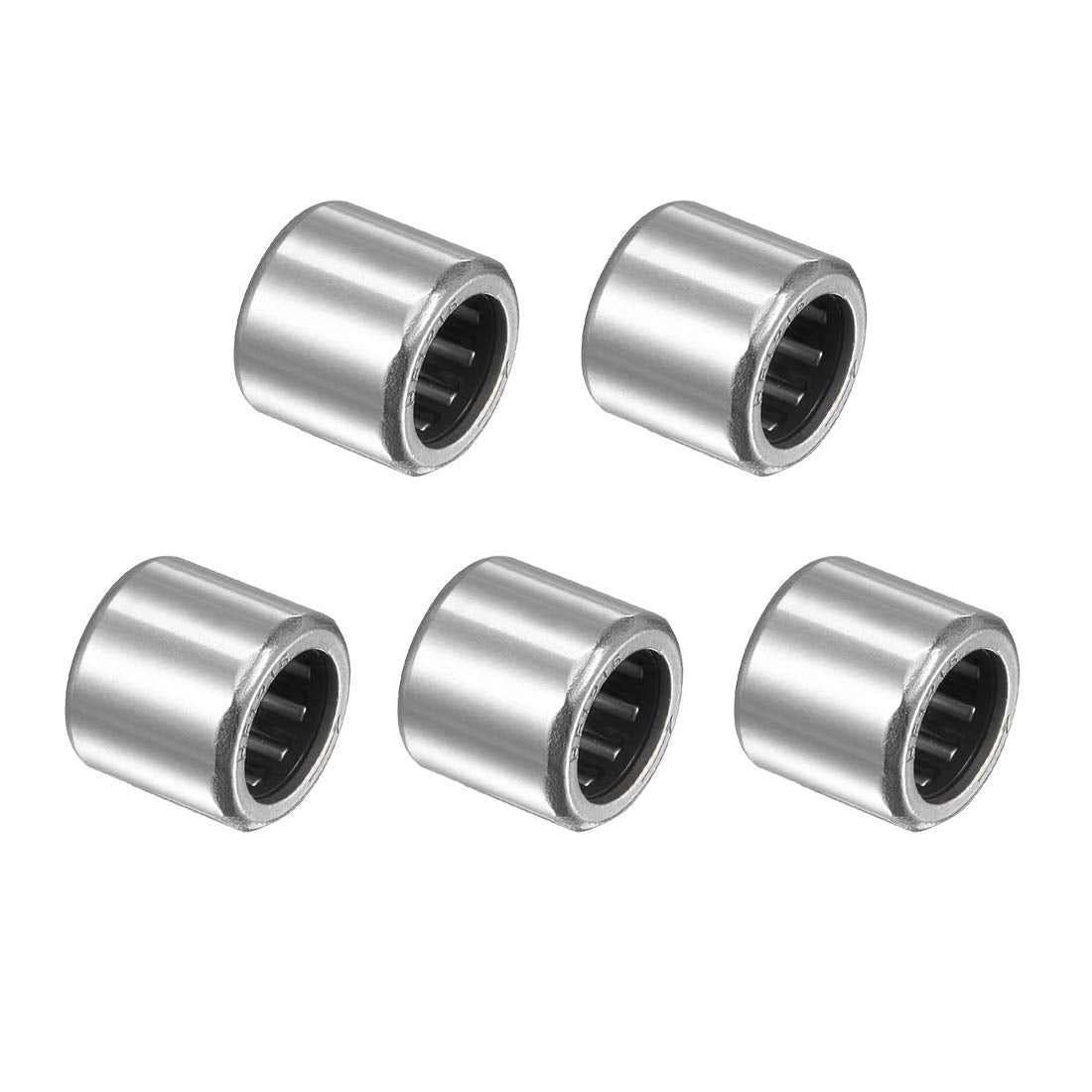

Drawn Cup Needle Roller Bearings 12mm Bore 18mm OD 16mm Width 5pcs

Key Features

• [SIZE] - (Inner Diameter =12mm, Outer Diameter =18mm, Width=16mm)
• [MATERIAL] - Chrome Steel Needle Roller, ST14 Steel Drawn Cup
• [DURABLE] - Good heat tolerance, high load carrying capacity and stiffness
• [FEATURES] - Low cross section, enable downsizing and suit for use in restricted mounting spaces
• [CAPABILITY] - 11.5kN Static Load Capacity, 9.3kN Dynamic Load Capacity, 20000RPM Maximum Rotational Speed

Product Description

Specification:Drawn Cup Material: ST14 SteelNeedle Roller Material: Chromium Steel (GCr15)Bore Diameter (Fw): 12mmOutside Diameter (D): 18mmWidth: 16mmStatic Load Capacity (Cor): 11.5kNDynamic Load Capacity (Cr): 9.3kNMaximum Rotational Speed (Oil): 20000rpmNumber of Pack: 5 Pcs

Description

-Drawn Cup Needle Roller Bearing features a deep drawn, thin-walled outer ring. They are compact bearings with high load carrying capacity and stiffness.-These bearings are especially suitable for high dynamic loads or radial-limited installation. They are mounted with a tight interference fit in the housing.-Shoulders or snap rings are not required to locate the bearing axially, thus enables a simple and economic design of the housing bore.-For various applications such as agricultural and construction equipment, pumps and compressors, and two-cycle engines, among others.

NOTE

Install with press machine or special tools instead of hammers because hammering may lead to local deformation.
