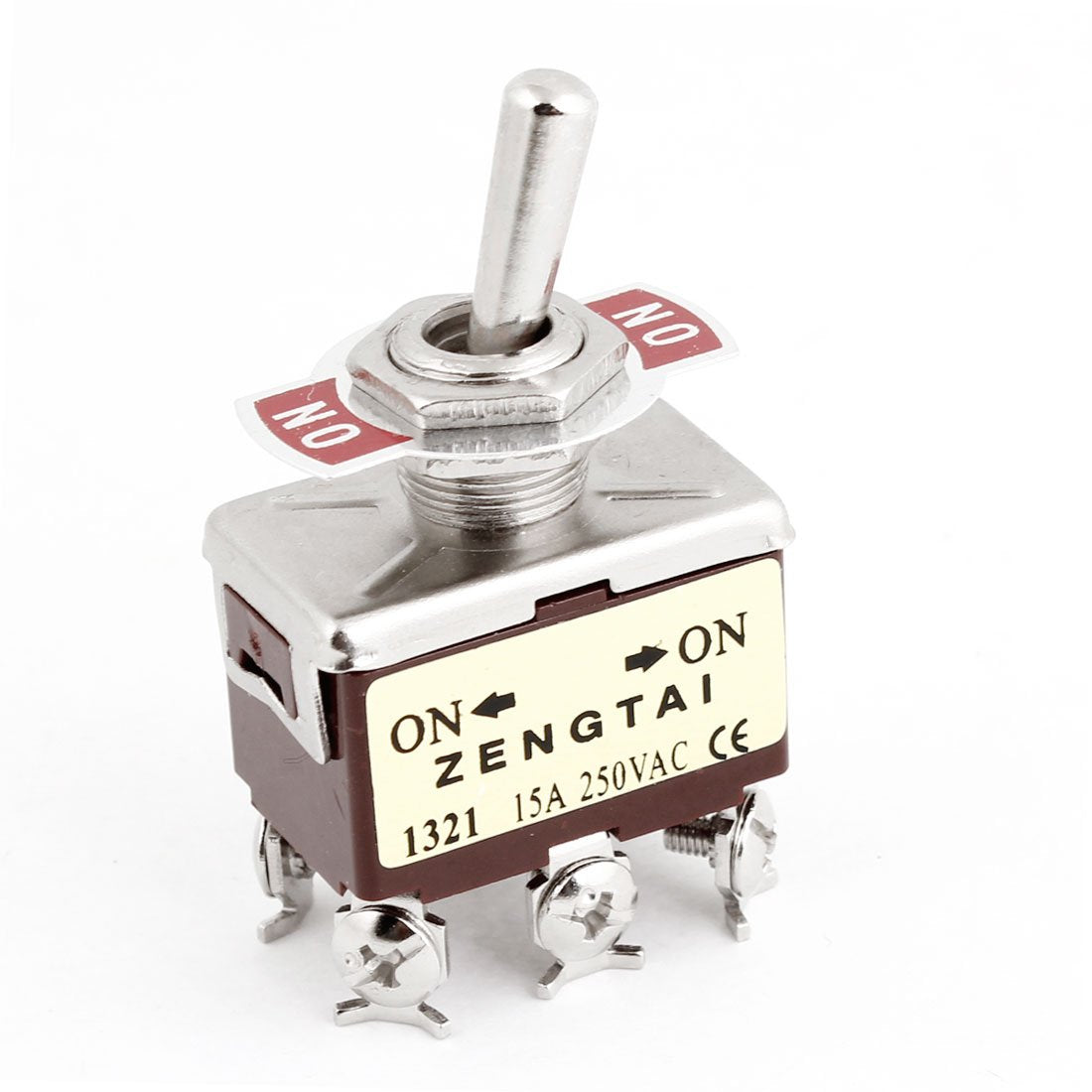

DPDT ON/ON 2 Way 6 Screw Terminals Toggle Switch 15A AC 250V Self-Locking

Key Features

• Product Name Toggle Switch;Mode 302
• Type DPDT (ON/ON);Position 2
• Mounting Thread Diamter 12mm / 0.5";Main Body Size 3.4 x 2.9 x 2cm/ 1.3" x 1.1" x 0.8" (L*W*H)
• Overall Height 60mm / 2.4";Material Metal, Plastic
• Net Weight 36g;Package Content 1 x Toggle Switch

Product Description

Please note

The 250V/15A rating in the title is only for purely resistive load, please pay attention to the specifications below for max ratings of other load types:Max Power Rating for AC Resisitive load:AC 15A 250V / AC 16A 125VMax Power Rating for DC Resisitive load:DC 0.5A 250V / DC 0.9A 125VMax Power Rating for AC Lamp: AC 125V 300W / AC 250V 600WMax Power Rating for DC Lamp: DC 30V 3.5AMax Power Rating for AC Motor(Single Phase): AC 250V 400W / AC 125V 300W
