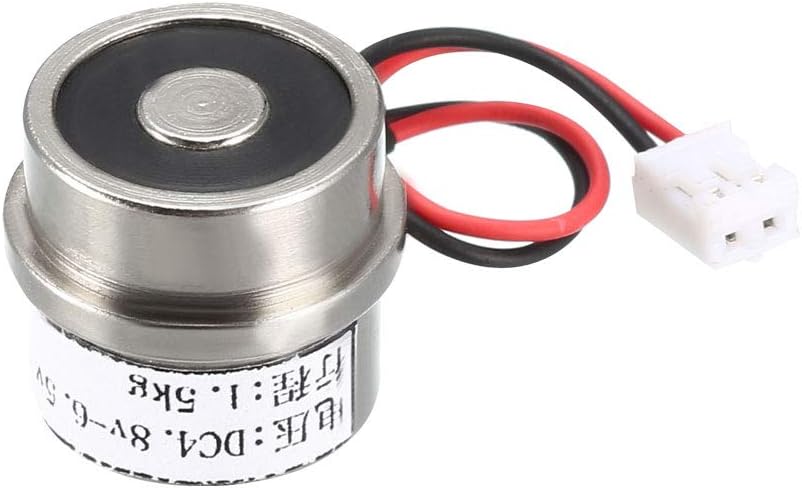

DC4.8V-6.5V 15N 1.5KG Force Electric Lifting Magnet Electromagnet Solenoid Lift Holding

Key Features

• 【Holding Electromagnet Parameters】- Voltage DC4.8V-6.5V; Power 3W; Force 1.5kg / 3.3lb
• 【Dood Design】- Lead Length 65mm / 2.56 inch
• 【ADVANTAGES】- Electric Lifting Magnet Electromagnet Simple structure, small volume, high adsorption force.copper coil inside, has good temperature stability and insulation, high electrical conductivity
• 【NOTED】- The suction contact area of the object to be sucked must be larger than the suction surface of the solenoid electromagnet suction cup,The object absorbed must be clean and The thickness of the object is 8mm best.
• 【APPLICATION】- Electric Lifting Magnet Electromagnet use in vending machines, transport equipment, office facility household appliance, mechanical, etc game machine,Sorting machine,door lock,etc.

Product Description

Feature:Electric lifting magnetPowerful and compactSmooth and flat surfaceLow consumption and reliableApplications: assembly line, sorting machine, mechanical arm, experimental facility, etc

NOTE

Non-magnetic with Power On; Magnetic with Power Off Specification:Voltage: DC 4.8V-6.5VPower: 3WForce: 1.5kg / 3.3lbDuty-cycle (%) : 50%Electric time:Less than 7 minutes Overall Size : 18 x 16mm / 0.71 inch x 0.63 inch（D*H）Lead Length : 65mm / 2.56 inch

Package Includes

1 x Holding Electromagnet Cautions for the use of electromagnets:1.The object absorbed must be a good magnetic material. 2.The suction surface of the electromagnet must be smooth and clean. 3.The thickness of the object is 5mm best. 4.The contact surface of the object must be larger than the adsorption surface of the electromagnet.
