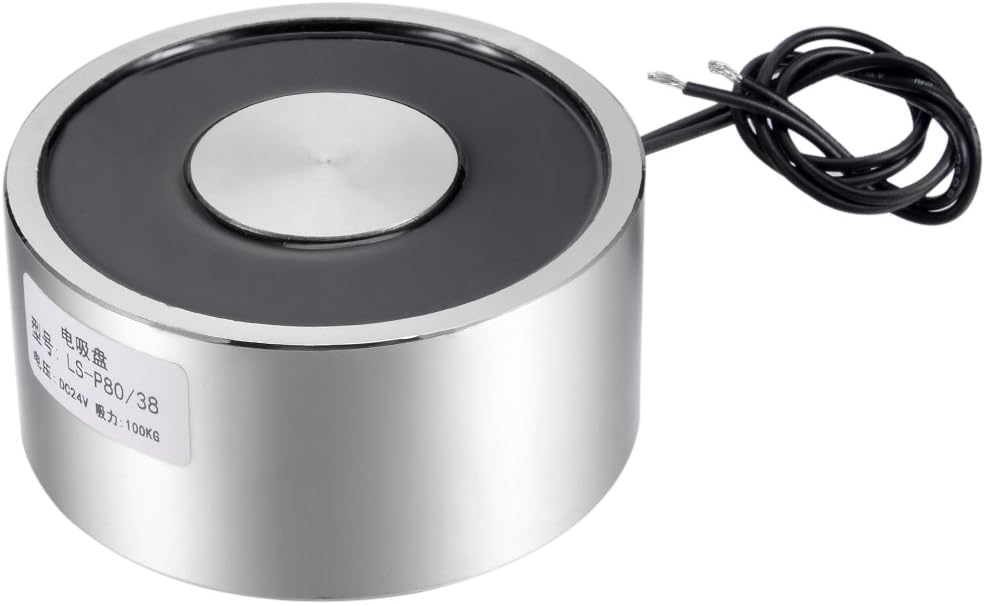

DC24V 1000N Force Eelectric Lifting Magnet Electromagnet Solenoid Lift Holding 80mm X 38mm Silver Tone

Key Features

• 【Holding Electromagnet Parameters】- Voltage DC24V ; Peak Force 1000N ; Holding Force 750N;Suction Surface Diameter Φ34
• 【Dood Design】- Thread Size M8 ; Lead Length 290mm/11.41inch ; Overall Size 80 x 38mm/3.15inch x 1.5inch(D*H)
• 【ADVANTAGES】- Eelectric Lifting Magnet Electromagnet Simple structure, small volume, high adsorption force.copper coil inside, has good temperature stability and insulation, high eelectrical conductivity
• 【NOTED】- The suction contact area of the object to be sucked must be larger than the suction surface of the solenoid electromagnet suction cup,The object absorbed must be clean and The thickness of the object is 5mm best.
• 【APPLICATION】- Eelectric Lifting Magnet Electromagnet use in vending machines, transport equipment, office facility household appliance, mechanical, etc game machine,Sorting machine,door lock,etc.

Product Description

Feature:Eelectric lifting magnetPowerful and compactSmooth and flat surfaceLow consumption and reliableApplications: assembly line, sorting machine, mechanical arm, experimental facility, etc Specification:Material: Pure IronInput Voltage: 24V DCPeak Force :1000NHolding Force : 750NSuction Surface Diameter :Φ34Thread Size :M8Overall Size : 80 x 38mm/3.15inch x 1.5inch(D*H)Lead Length : 290mm/11.41inch Cautions for the use of electromagnets:1.The object absorbed must be a good magnetic material. 2.The suction surface of the electromagnet must be smooth and clean. 3.The thickness of the object is 5mm best. 4.The contact surface of the object must be larger than the adsorption surface of the electromagnet

Package Includes

1 x Holding Electromagnet
