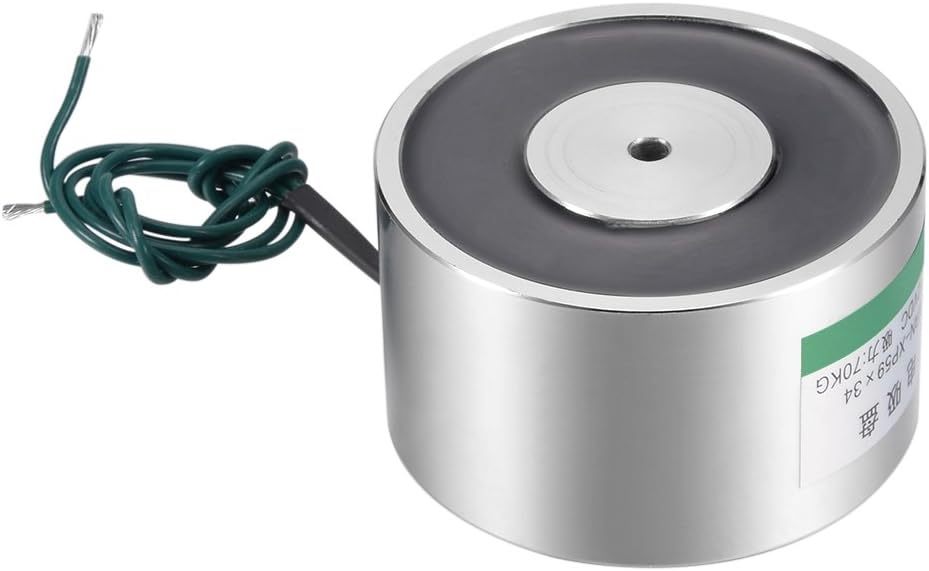

DC12V 700N Force Eelectric Lifting Magnet Electromagnet Solenoid Lift Holding 59 x 34mm

Key Features

• 【Holding Electromagnet Parameters】- Voltage DC12V ; Peak Force 700N; Holding Force 525N ; Suction Surface Diameter Φ26
• 【Dood Design】- Thread Size M8; Cable Length 250mm/9.84"; Size 59 x 34mm/2.32" x 1.34"(D*H)
• 【ADVANTAGES】- Eelectric Lifting Magnet Electromagnet Simple structure, small volume, high adsorption force.copper coil inside, has good temperature stability and insulation, high eelectrical conductivity
• 【NOTED】- The suction contact area of the object to be sucked must be larger than the suction surface of the solenoid electromagnet suction cup,The object absorbed must be clean and The thickness of the object is 5mm best.
• 【APPLICATION】- Eelectric Lifting Magnet Electromagnet use in vending machines, transport equipment, office facility household appliance, mechanical, etc game machine,Sorting machine,door lock,etc.

Product Description

Feature:Eelectric lifting magnetPowerful and compactSmooth and flat surfaceLow consumption and reliableApplications: assembly line, sorting machine, mechanical arm, experimental facility, etc Specification:Material: Pure IronInput Voltage: 12V DC Peak Force :700N; Holding Force :525N; Duty-cycle (ED%) : 50%; Eelectric time:Less than 7 minutes ;Suction Surface Diameter :Φ26Thread Size :M8Overall Size : 59 x 34mm/2.32inch x 1.34inch(D*H)Lead Length : 250mm/9.84inch Cautions for the use of electromagnets:1.The object absorbed must be a good magnetic material. 2.The suction surface of the electromagnet must be smooth and clean. 3.The thickness of the object is 5mm best. 4.The contact surface of the object must be larger than the adsorption surface of the electromagnet

Package Includes

1 x Holding Electromagnet
