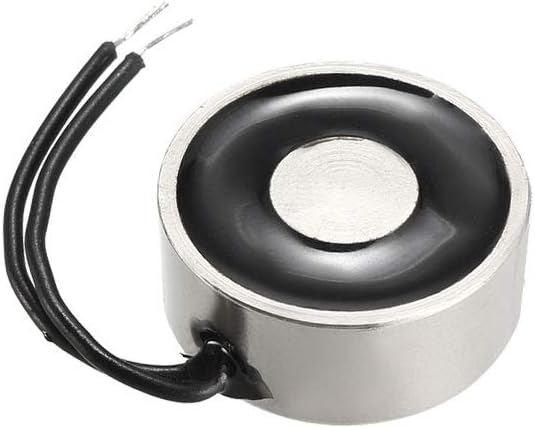

DC12V 12N 1.2KG Force Eelectric Lifting Magnet Electromagnet Solenoid Lift Holding 18mm x 8.5mm

Key Features

• 【Holding Electromagnet Parameters】- Voltage DC 12V; Current 0.1A; Power 1.25W; Force 1.2kg / 2.65lb
• 【Dood Design】- Overall Size 18 x 8.5mm / 0.71 inch x 0.33 inch（D*H）; Lead Length 25mm / 1 inch
• 【ADVANTAGES】- Eelectric Lifting Magnet Electromagnet Simple structure, small volume, high adsorption force.copper coil inside, has good temperature stability and insulation, high eelectrical conductivity
• 【NOTED】- The suction contact area of the object to be sucked must be larger than the suction surface of the solenoid electromagnet suction cup,The object absorbed must be clean and The thickness of the object is 5mm best.
• 【APPLICATION】- Eelectric Lifting Magnet Electromagnet use in vending machines, transport equipment, office facility household appliance, mechanical, etc game machine,Sorting machine,door lock,etc.

Product Description

Feature:- Eelectric lifting magnet- Powerful and compact- Smooth and flat surface- Low consumption and reliable- Applications: assembly line, sorting machine, mechanical arm, experimental facility, etc

Note

The Force will be decrease due to long time working ,lower voltage and improper Sucked object ect.It is recommended that the actual force is less than 80% of the sucked force on the name plate. Specification:- Voltage: DC 12V- Current: 0.1A- Power: 1.25W- Force: 1.2kg / 2.65lb- Duty-cycle (ED%) : 50%- Eelectric time:Less than 7 minutes - Overall Size : 18 x 8.5mm / 0.71 inch x 0.33 inch（D*H）- Lead Length : 25mm / 1 inch

Package Includes

• x Holding ElectromagnetCautions for the use of electromagnets:1.The object absorbed must be a good magnetic material. 2.The suction surface of the electromagnet must be smooth and clean. 3.The thickness of the object is 5mm best. 4.The contact surface of the object must be larger than the adsorption surface of the electromagnet.
